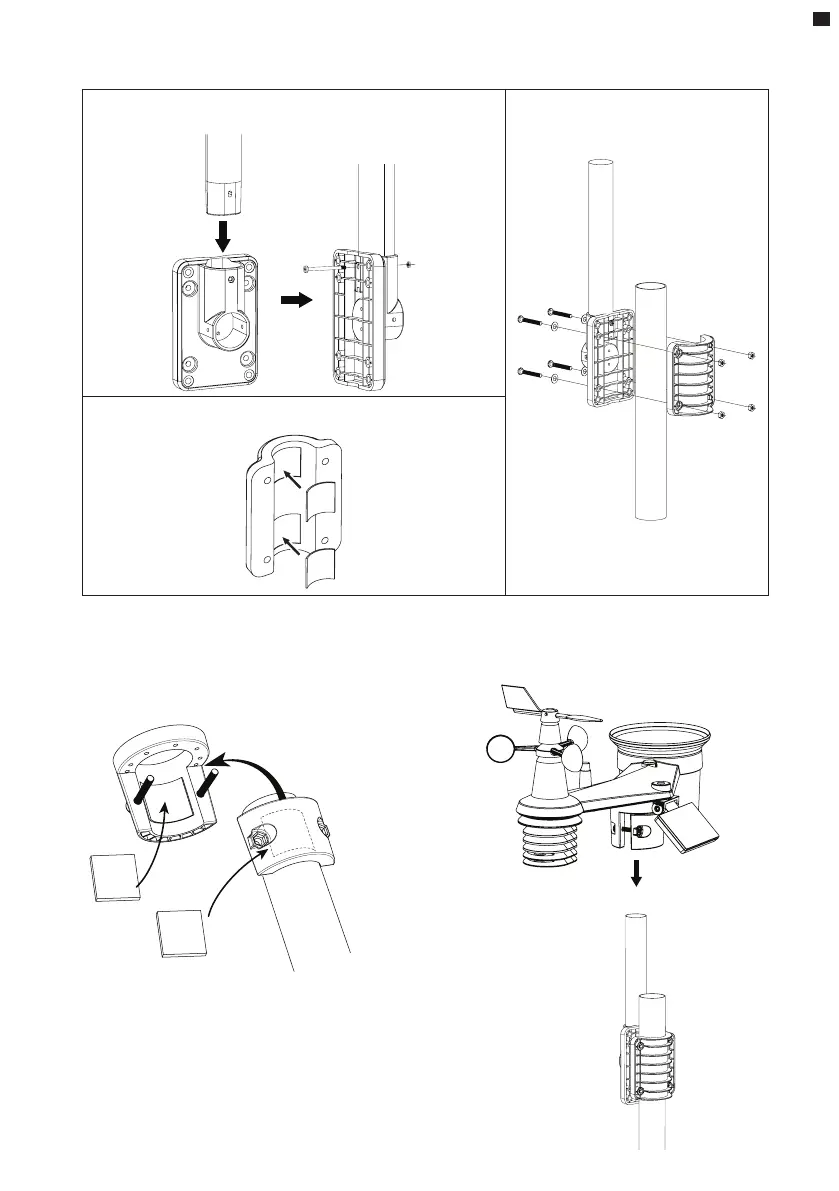

PLASTIC MOUNTING INSTALLATION
1. Fasten the plastic pole onto your x pole with mounting base, clamp, washers, screws and
nuts. Following below 1a, 1b, 1c sequences:
1a. Insert the plastic pole into the hole of the mounting
stand, and then secure it with the screw and nut.
1c. Fasten the mounting stand and
clamp together onto a x pole with
4 long screws and nuts.
1b. Apply 2 rubber pads on the mounting clamp.
2. Apply 2 rubber pads on the inner
sides of the mounting base and
clamp of the sensor-array, and
loosely fasten them together.
3. Place the sensor-array over the mounting pole
and align it to North direction before fastening
the screws.
