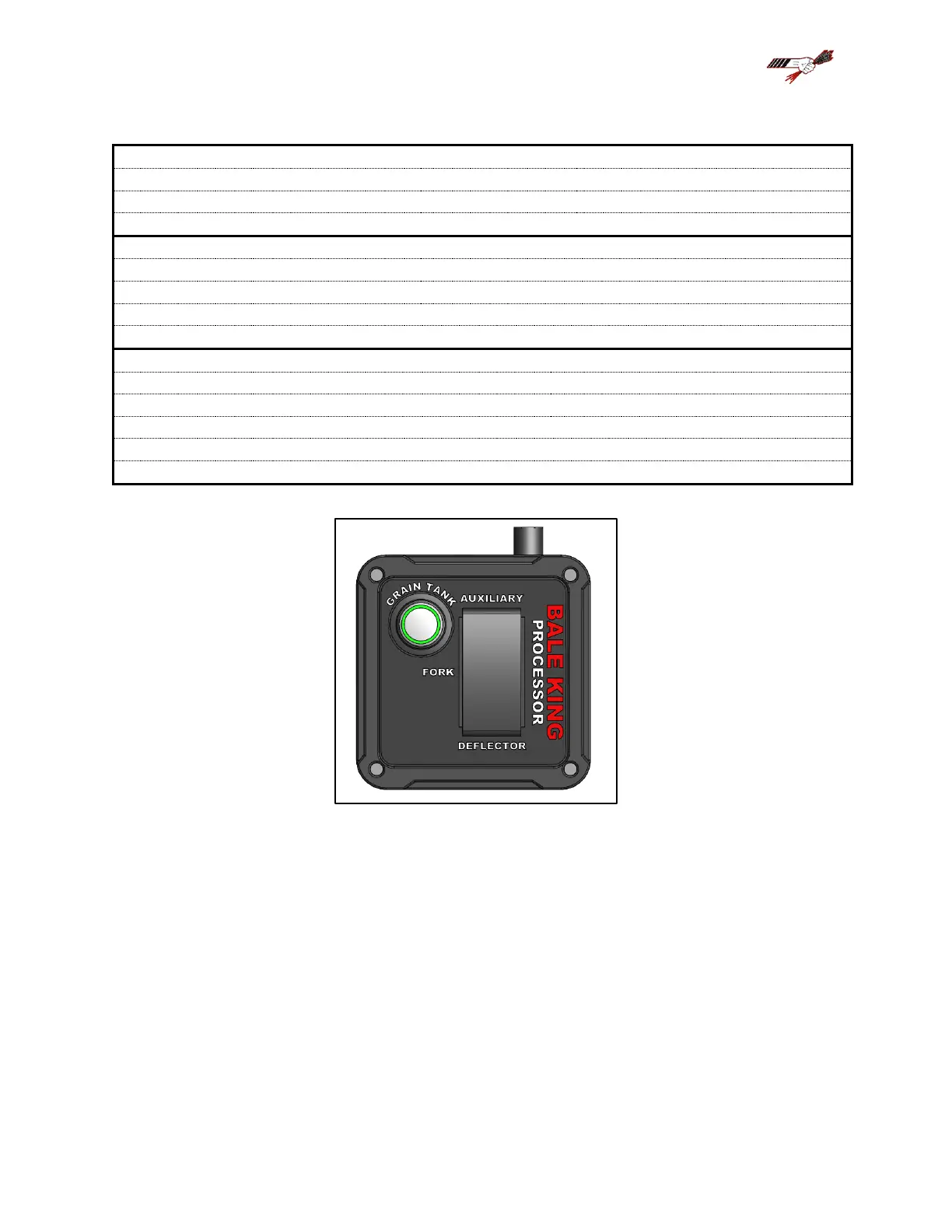

If both kits are installed on the machine, the hydraulic setup is as shown below:
5300XTR – 2 Remote
Control Box
“GRAIN TANK”
“AUXILIARY”
“FORK”
“DEFLECTOR”
Long Blue
Discharge grain
Clamp bale
Lift rear fork
Lift deflector
Long Red
Agitators rotate clockwise
5300XTR – 3 Remote
Control Box
“AUXILIARY”
“FORK”
“DEFLECTOR”
Long Blue
Clamp bale
Lift rear fork
Lift deflector
Long Red
Agitators rotate clockwise
Long Green
Discharge grain
5300XTR – 4 Remote
Control Box
“FORK”
“DEFLECTOR”
Long Blue
Lift rear fork
Lift deflector
Long Red
Agitators rotate clockwise
Long Yellow
Clamp bale
Long Green
Discharge grain
2 Option – 2 Remote Control Box
