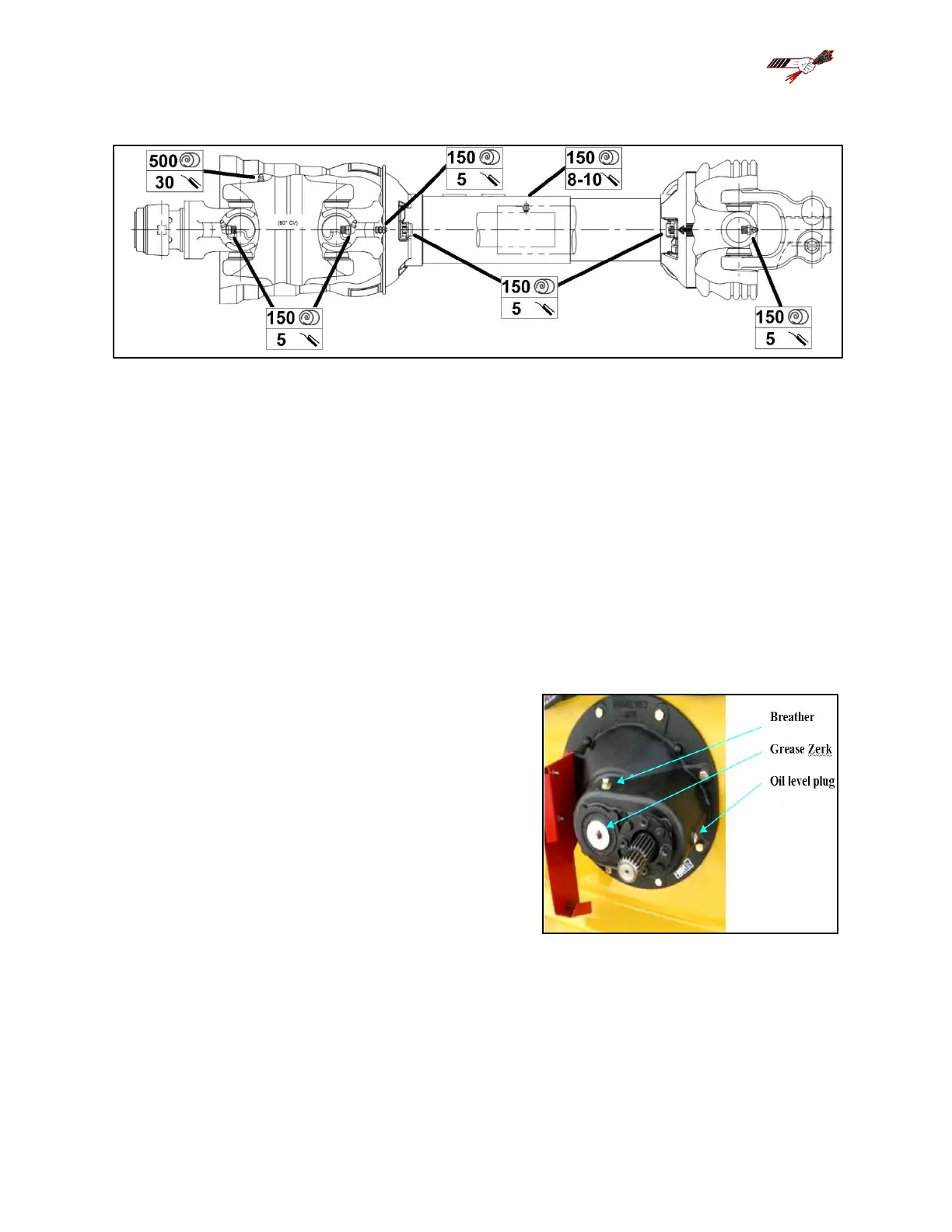

PTO/Driveline
After storage for long periods of time, lubricate and check the function of every driveline
component before operating. Failure to grease all the joints will VOID warranty.
Gearbox
There is one grease zerk on the front of the gear box. Apply 3-5 pumps of good quality grease
every 150 bales.
If the gearbox is removed to replace the rotor or perform any other service, add 80 pumps
of grease to the grease zerk upon reinstallation.
The gear box requires GL5 80W90 gear oil. The oil should be filled to the level plug
(approximately 500 mL) and checked on a regular basis. The oil should also be changed at the
following intervals:
• 500 bales after first use
• 1000 bales after first use
• Every 5000 bales afterwards, or annually
(whichever comes first)
