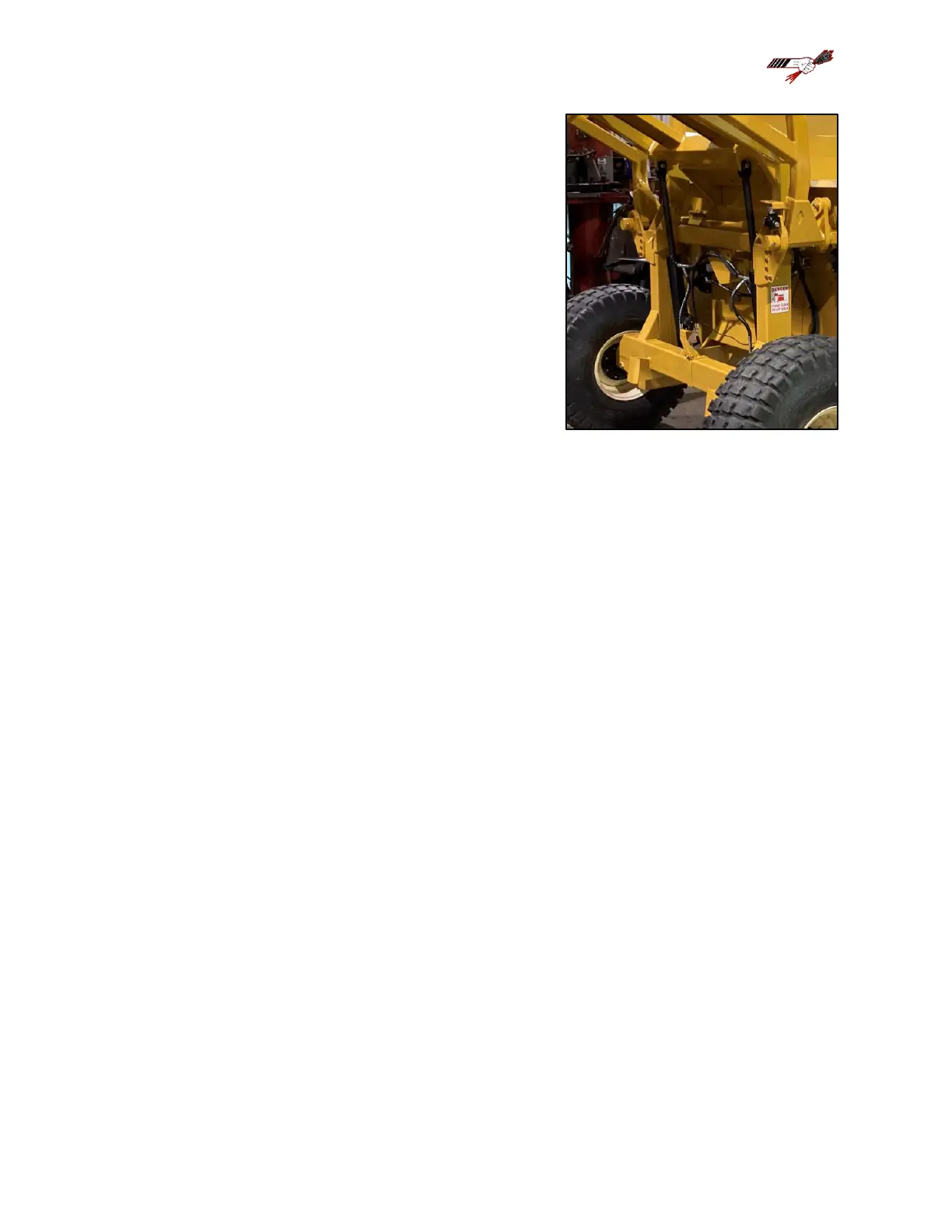

Cylinder Maintenance
The hydraulic cylinders are easily removed for repair or
maintenance simply by:
• Lowering the fork (or deflector) to the down
position and unhooking the hydraulic lines. Be sure
there is no pressure on the lines and mark the line
locations so there is no confusion when reinstalling
the cylinders. Check hydraulic schematics.
• Removing the cotter pin closest to the frame of the
machine and sliding the cylinder pins out
• To reinstall, reverse the removal procedure
NOTE: Always cover exposed cylinder shafts with grease to avoid rusting of shafts if the unit
is not used for extended periods of time. Rusted cylinder shafts are NOT covered by warranty
NOTE: Check all hoses and fittings periodically for leaks. Tighten or replace any dripping
components or any worn out hoses.
