SectionⅡ Exhaust Pipeline

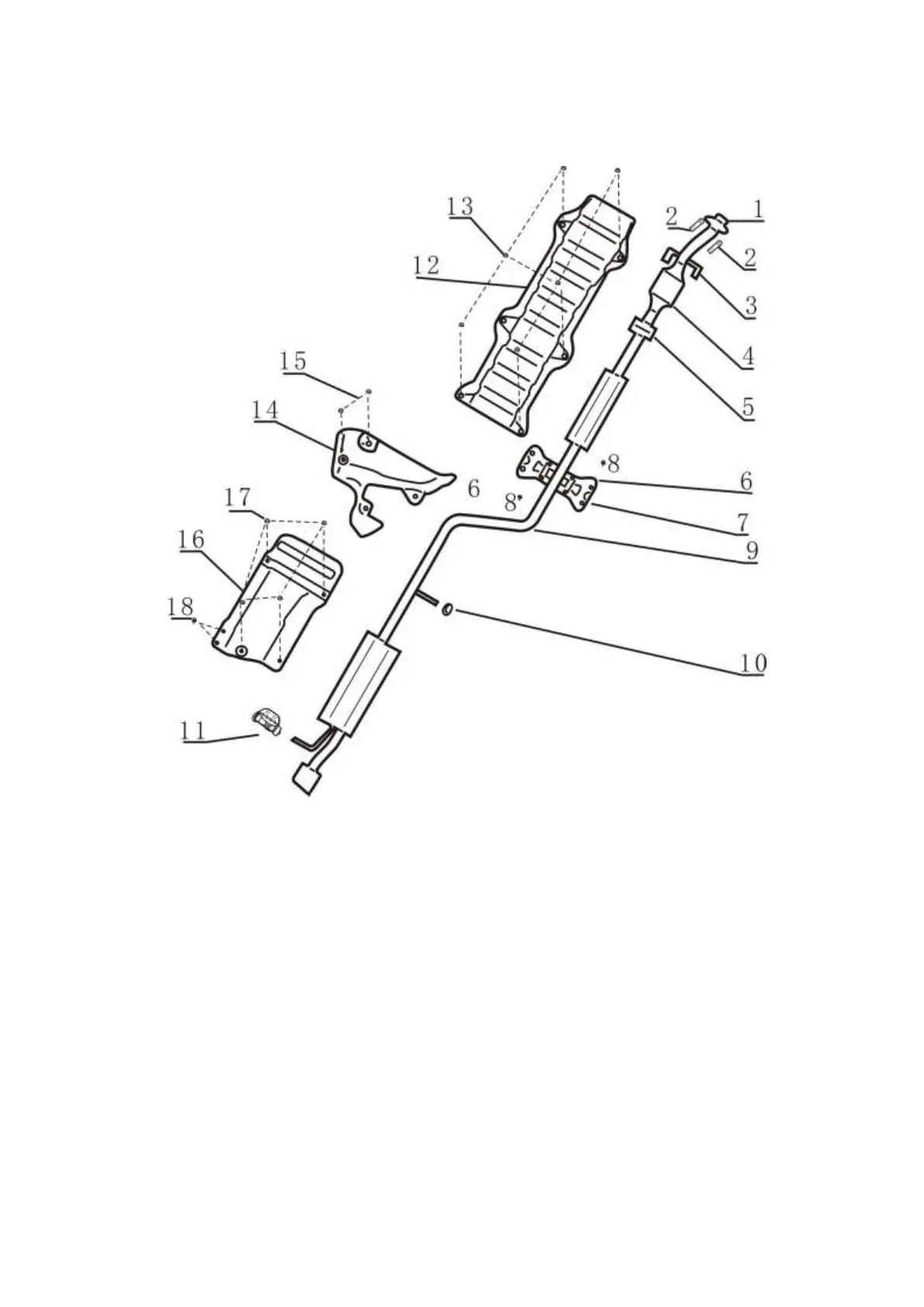

Dismantlement sequence:
Front exhaust pipe assembly
(1) Front exhaust pipe sealing gasket
(2) Spring bolt (Torque: 50-55N.m)
(3) Catalytic converter suspension assembly
(4) Front pipe & catalytic converter assembly
(5) Asbestos pad for catalytic converter
Central exhaust pipe
(6) First lifting lug for middle pipe
(7) Lower rear crossbeam for middle passage
(8) Bolt (Torque: 18-23N.m)
