Brilliance V5 2017 - MID-Range Loudspeaker

63

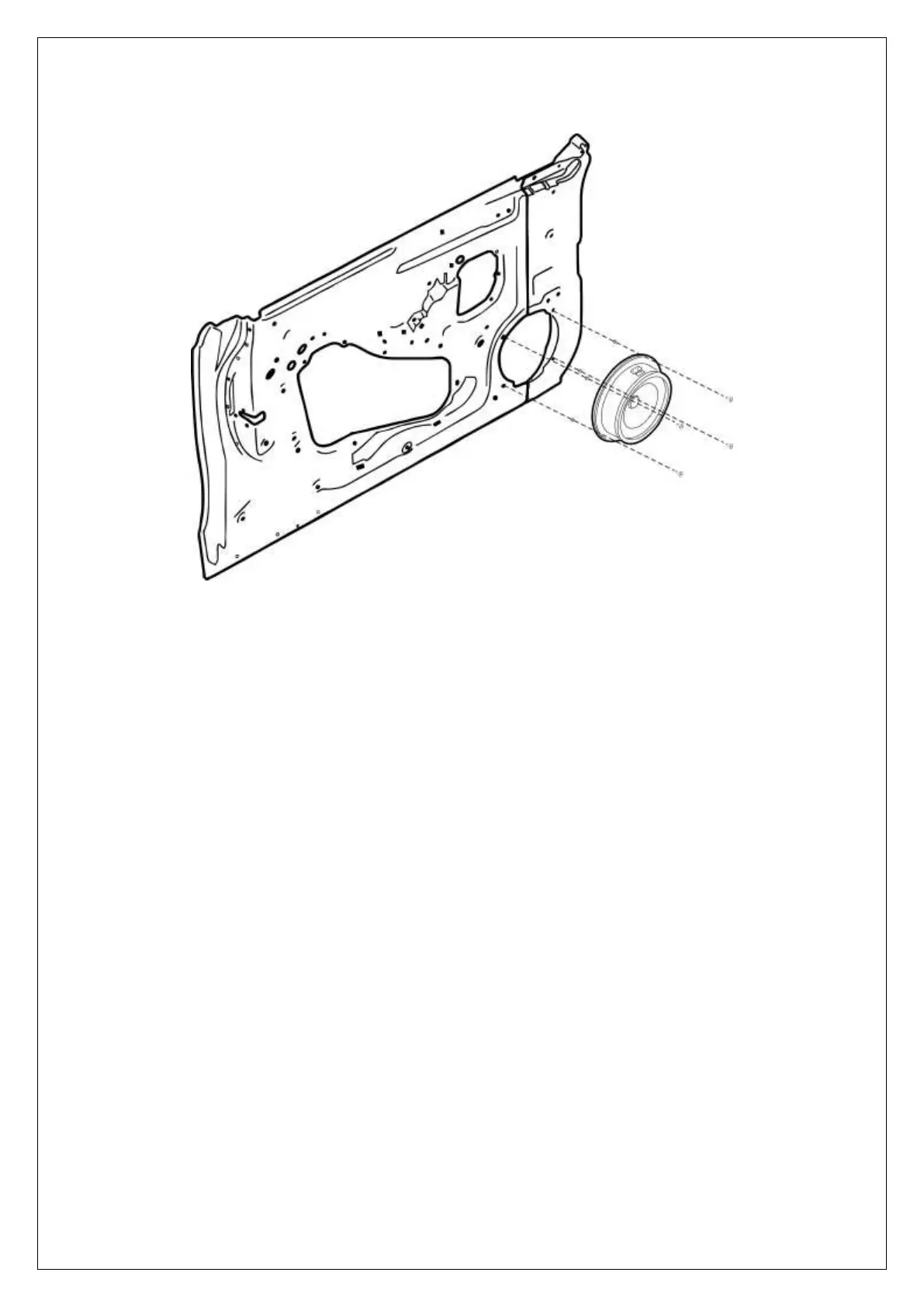

IV. Mid-range loudspeaker
Dismantling:
1. Dismantle decorative sheet in door
2. Disconnect the mid-range loudspeaker connection harness
3. Dismantle four ST4.2×16 tapping screws fixing loudspeaker
4. Dismantle mid-range loudspeaker.
Mounting:
1. First mount four 4.2 screw seats.
2. Assemble other part in sequence opposite to dismantling.
ST4.2
