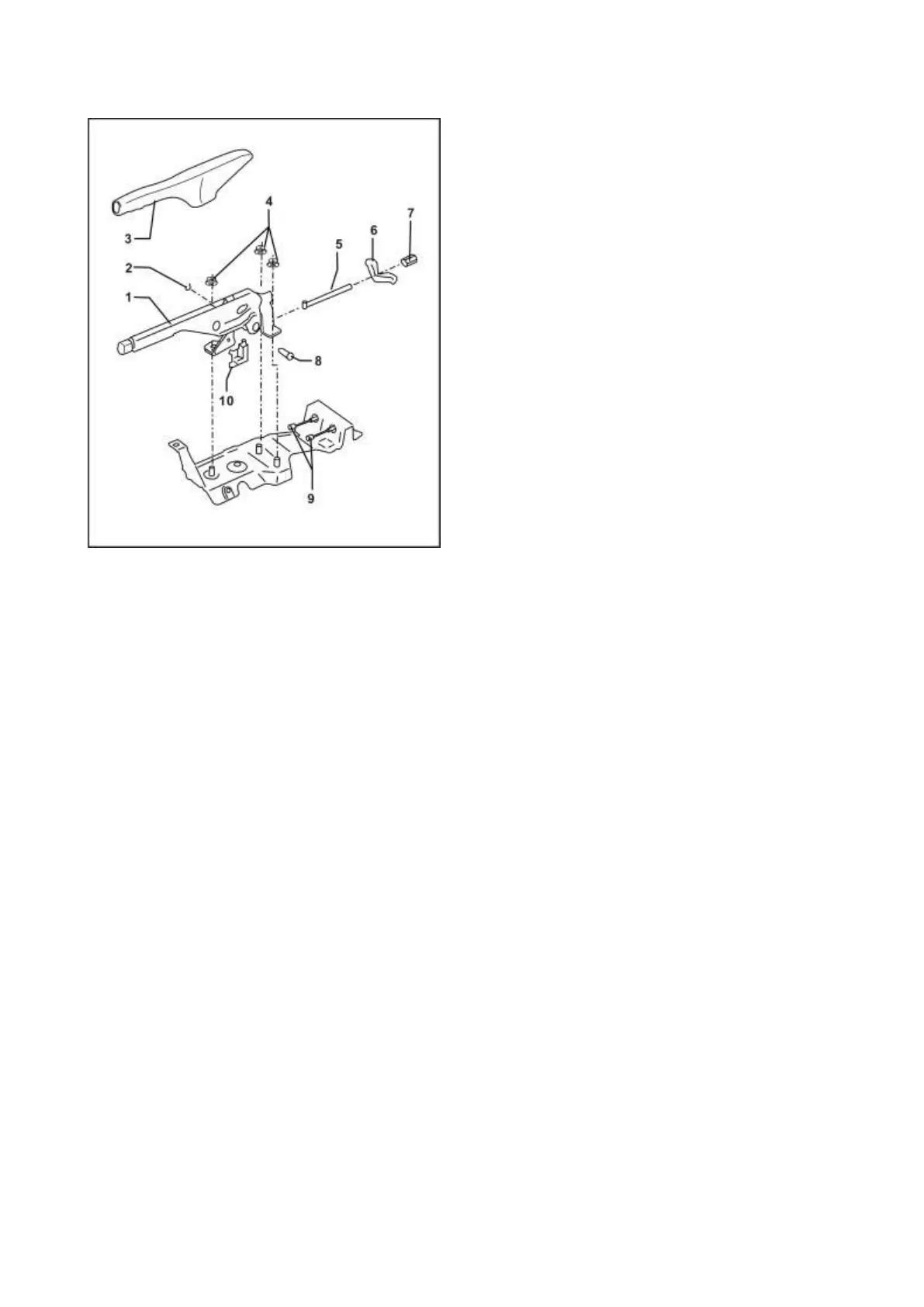

II. Hand braking handle – assembling
drawing
1 - Hand braking handle
◆ Prior to dismantling, remove central panel
2 - Clip ring
3 - Hand braking handle trimming
◆ Pull it forwards
◆ Use screwdriver to dismantle rear bottom
trimming to release button
4 - Hexagon nut, 18-23N
5 - Pull rod
6 - Compensator
7 - Adjusting nut
◆ Adjust hand braking:
- Disc brake type vehicle/front axle driving
- Drum brake type vehicle
8 - Support pin
◆ For mounting hand braking pull rod – No. 5 part
9 - Hand braking rope
◆ Dismantling (disc brake)
◆ Dismantling (drum brake)
10 - Alarm lamp switch for hand braking
