69

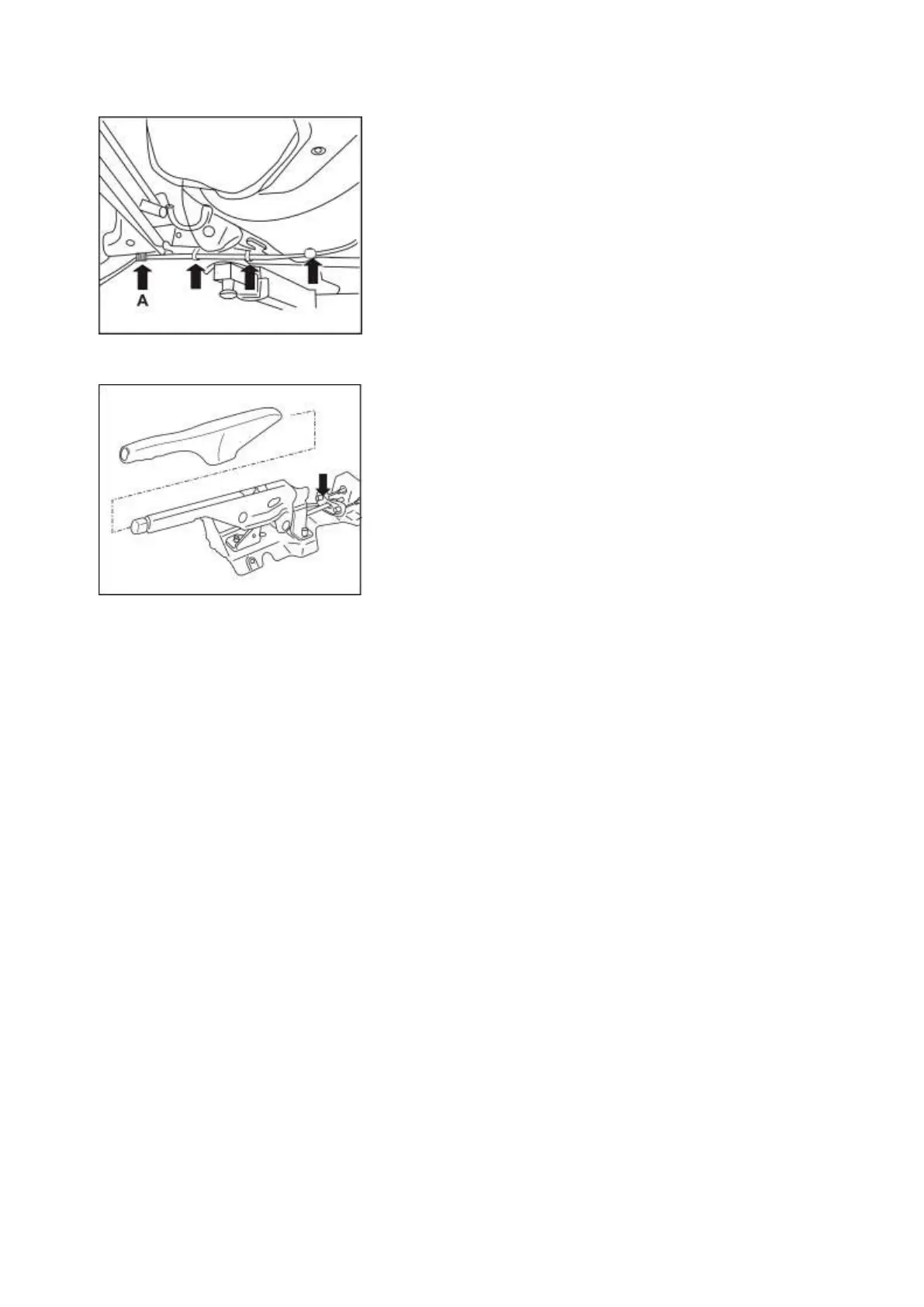

 - Clamp hand braking rope into rear shaft retainer (shown
by arrow A).
- Hand braking rope clamping ring shall be at center of
clamp.
- Suspend hand braking rope onto bracket (shown by
arrow).
 - Suspend hand braking rope onto compensator.
- Use adjusting nut (shown by arrow) to pretension the
hand braking rope.
- Adjust hand braking
