brim Trio Multibrew System - Single Serve Brew Cycle; Adjusting the Drip Tray

23
Single Serve Brew Cycle
Adjusting the Drip Tray
1. The drip tray adjusts to 3 heights to accommodate tall 15 oz. travel mugs/tumblers,
10 oz. mugs/cups, or short 6 oz. cups.
2. For tall mugs/tumblers, remove the drip tray. Slide the corner drip tray out of the unit.
(See Figure 5.)
3. For10oz.cupsormugs,slidethecornerdriptraybackontotheooroftheCoffeeMaker.
Make sure the drip tray is secure and lined up with the front of the base. (See Figure 6.)
4. When brewing a smaller cup, raise the drip tray to the upper level to avoid splatter
(See Figure 7). Simply insert the drip tray’s tabs into the back of the unit, then lower the
tray so that it is perfectly secure and level.

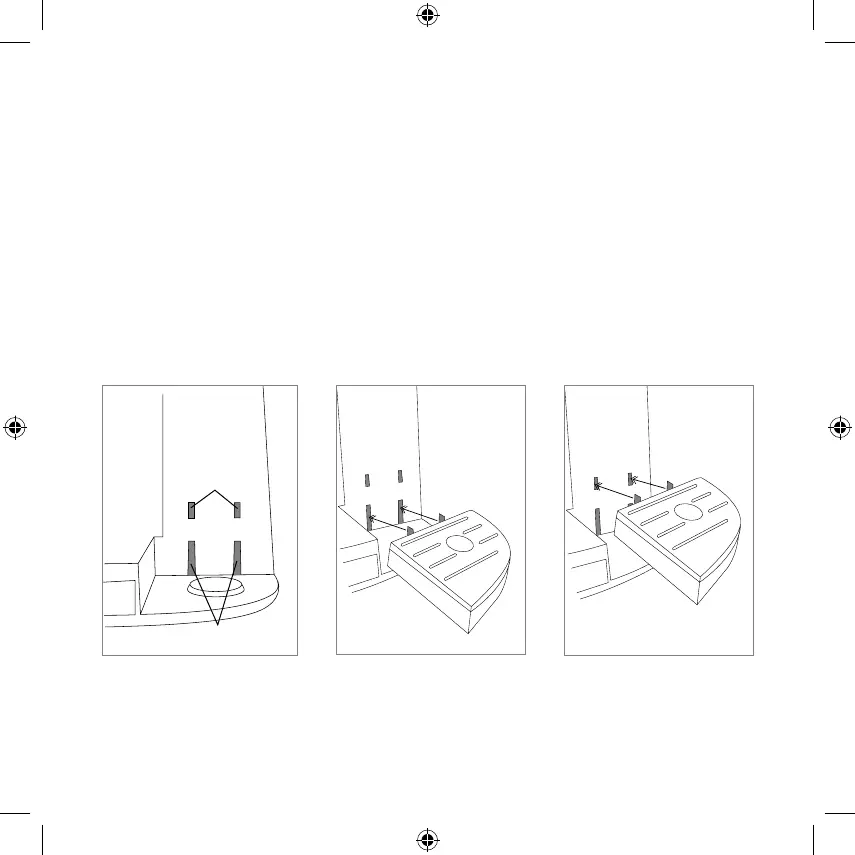

Figure 5 Figure 6 Figure 7
Lower Slots
Upper Slots
