3. Drill suitable holes in the wall surface at the
marked positions to accommodate the supply
pipework and fixings.
4. Terminate the pipework in the wall ensuring
that there is at least 30mm of 15mm diameter
pipework protruding from the finished wall
surface (See Fig.1).
IMPORTANT: The water supply pipes to the
thermostatic Mixer Valve must be with the Hot on
the left and the Cold on the right when viewed
from the front.
5. Place the wall plates (1) over the supply pipes.
Using the wall plugs (2) and screws (3) provided
fix the wall plates to the wall (See Fig.2).
6. Place the olives (4) onto the protruding
pipework (See Fig.3).
IMPORTANT: The pipework must not protrude
past the olive (4) by more than 5mm.
7. Holding the flat edges of the wall plate (1) with
a 47mm spanner screw the fixing bridge (5) onto
the wall plate (1) using a 22mm spanner. Repeat
this step on both sides (See Fig.3).
8. Screw the covers (6) over the wall plates / fixing
bridges (5), so they are flush against the finished
wall surface (See Fig.4).

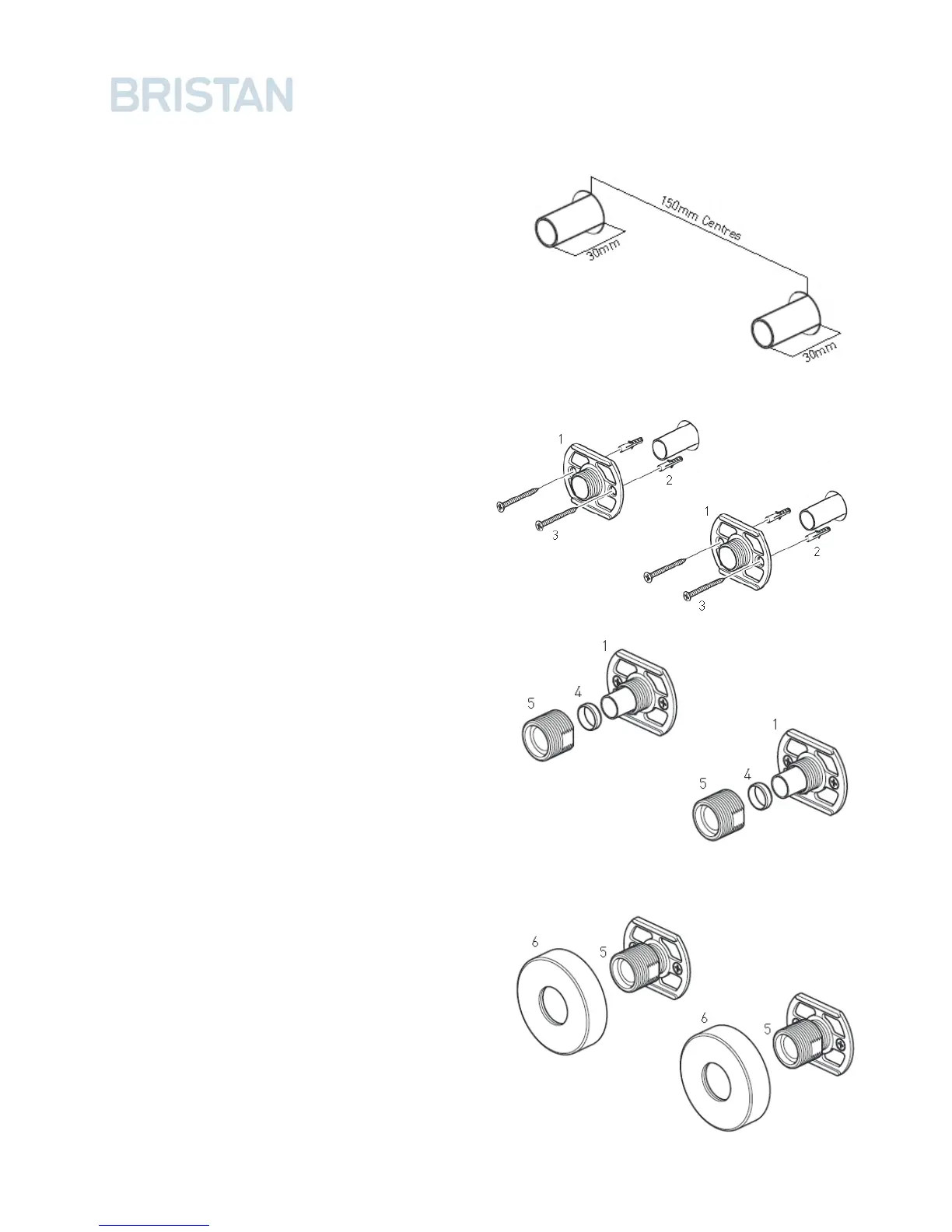

Fig.1
Fig.2
Fig.3
Fig.4
12
