8
To install the Interface Module:
1. Position in an environmentally protected area where the
temperature does not exceed 70°C.
2. Locate within 1.5m of a 10 Amp 240 volt fixed switched socket
outlet.
3. Distance from Interface Module to Brivis Touch shall be no
more than 20m.
4. Mount with supplied screws as shown in Diagram 9.

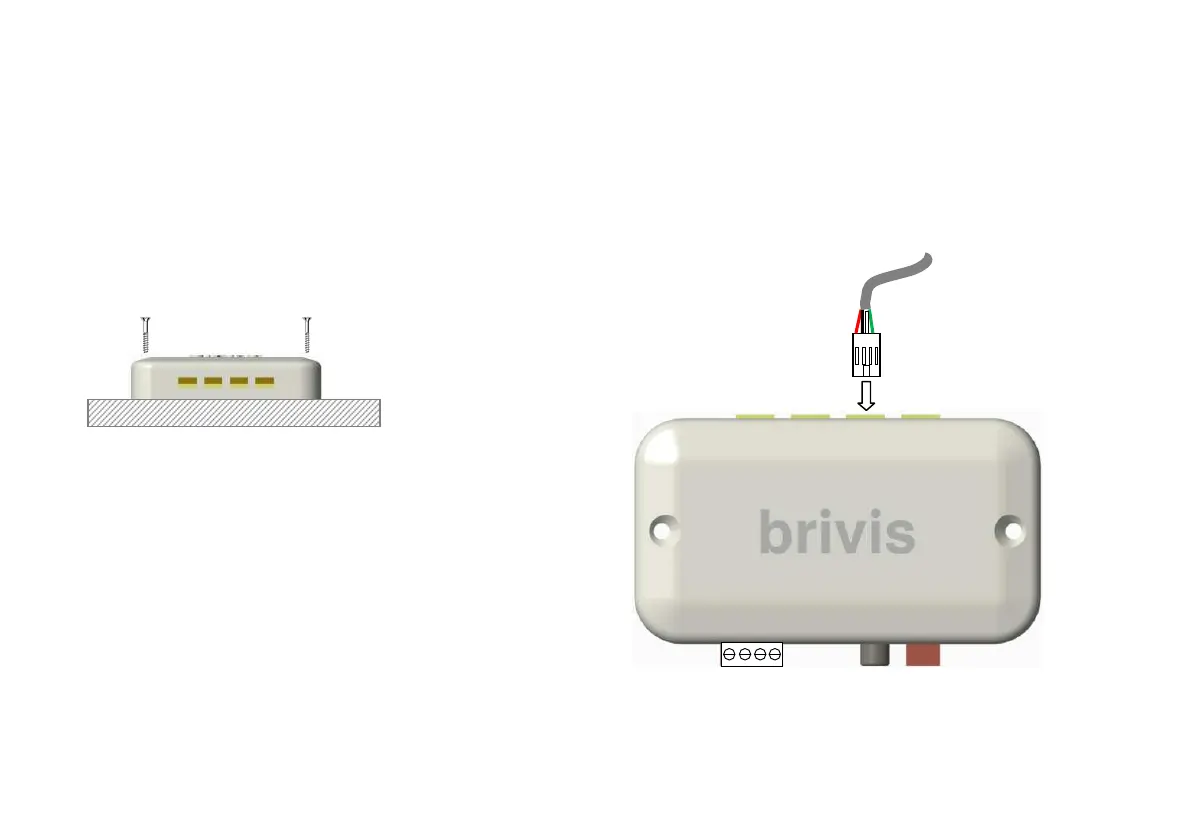

Diagram 9: Mounting Interface Module on flat surface
2.6 Connection of Interface Module to P&C Loom
The Interface Module is capable of connecting up to four
Brivis Touch Controllers. The P&C Loom can be connected
to the Interface Module through any of the four ports, refer to
Diagram 10.
Diagram 10: Connection of Interface Module to P&C Loom
