Specifications subject to change without notice. © 2013 Brivis Climate Systems Pty Ltd
14
Relay
NG-2
G W R
Electronic Control Module
C Y
TSTAT
ZONE /
ADD-ON
ZONE A
ZONE B
M
Fn

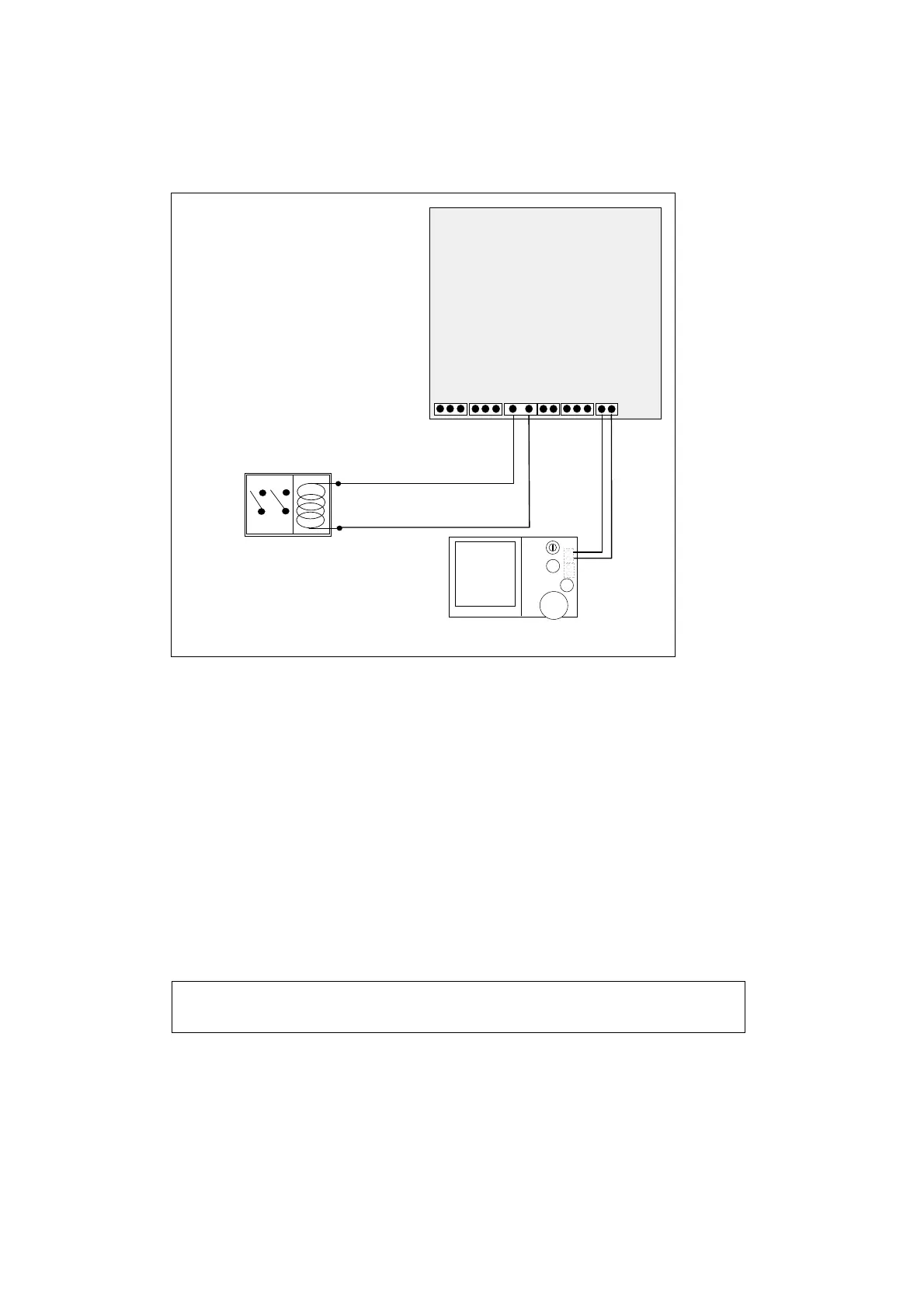

Fig. 11 – Wiring Circuit for Brivis StarPro HX/MX/CMX Series Heaters with ICE
Using Brivis Networker
StarPro Max and StarPro Plus heaters can be configured for zoning and/or Add-On Refrigerative Air
Conditioning. There are three 24 Vac relays on the heater's control module, which can be configured for
either three zone motors, or two zone motors and Add-on refrigerative air-conditioning control. For more
information please refer to the associated heater installer’s manual.
For additional zone requirements a 'Brivis Network 516 module' (Part No. B023178) is required,
which can then allow for control of up to four zone dampers and a refrigeration relay.
Note: For ICE connection to a Brivis SP4, SP5 or SP6 StarPro heater, a
‘Brivis Network 516 module’ (Part No. B023178) must be fitted.
