Installation Procedures
Connect a laptop to the ACS300 Administrative Interface Port

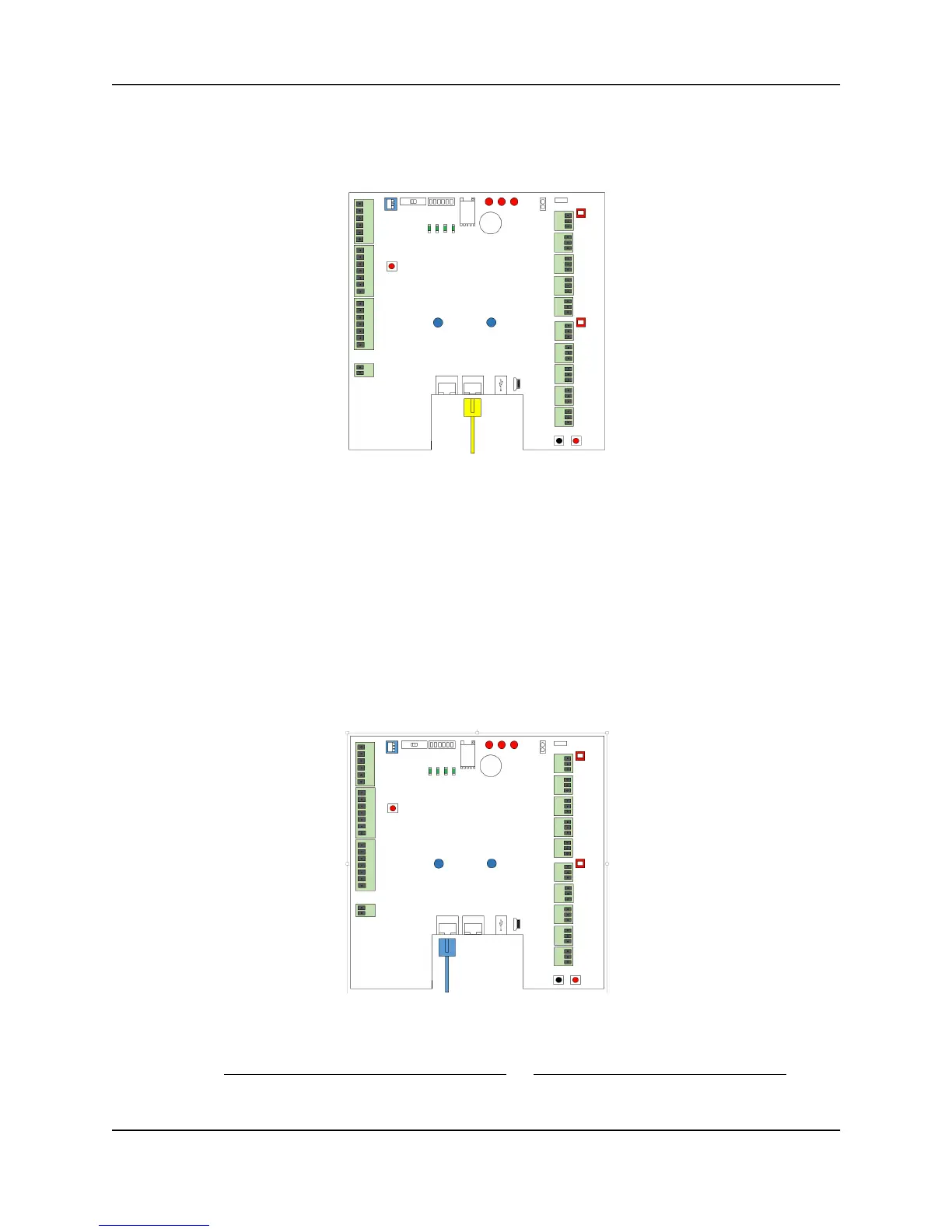

Connect Laptop to ACS300
1. Connect a laptop to the Administrative Interface port on the ACS300 using a standard
Ethernet cable or a patch cable.
a) The Administrative Interface port is a 10/100 Ethernet interface with RJ45 jack
for connecting the ACS300 to a laptop or PC to gain access to the local
administrative interface for debug and manual configuration utilities.
b) The port uses auto-sensing technology to determine polarity, which permits
either a straight or crossover cable to be used between the board and the
computer.
Verify connection of the LAN to the ACS300 (this should already have been done
when powering up the ACS300 using Power over Ethernet)
Connect LAN to ACS300
1. Verify the connection of the LAN to the ACS300 according to the instructions in the
Panel Networking Admin Interface Guide (or Brivo OnSite Administrator’s Manual for the
ACS300-S).
