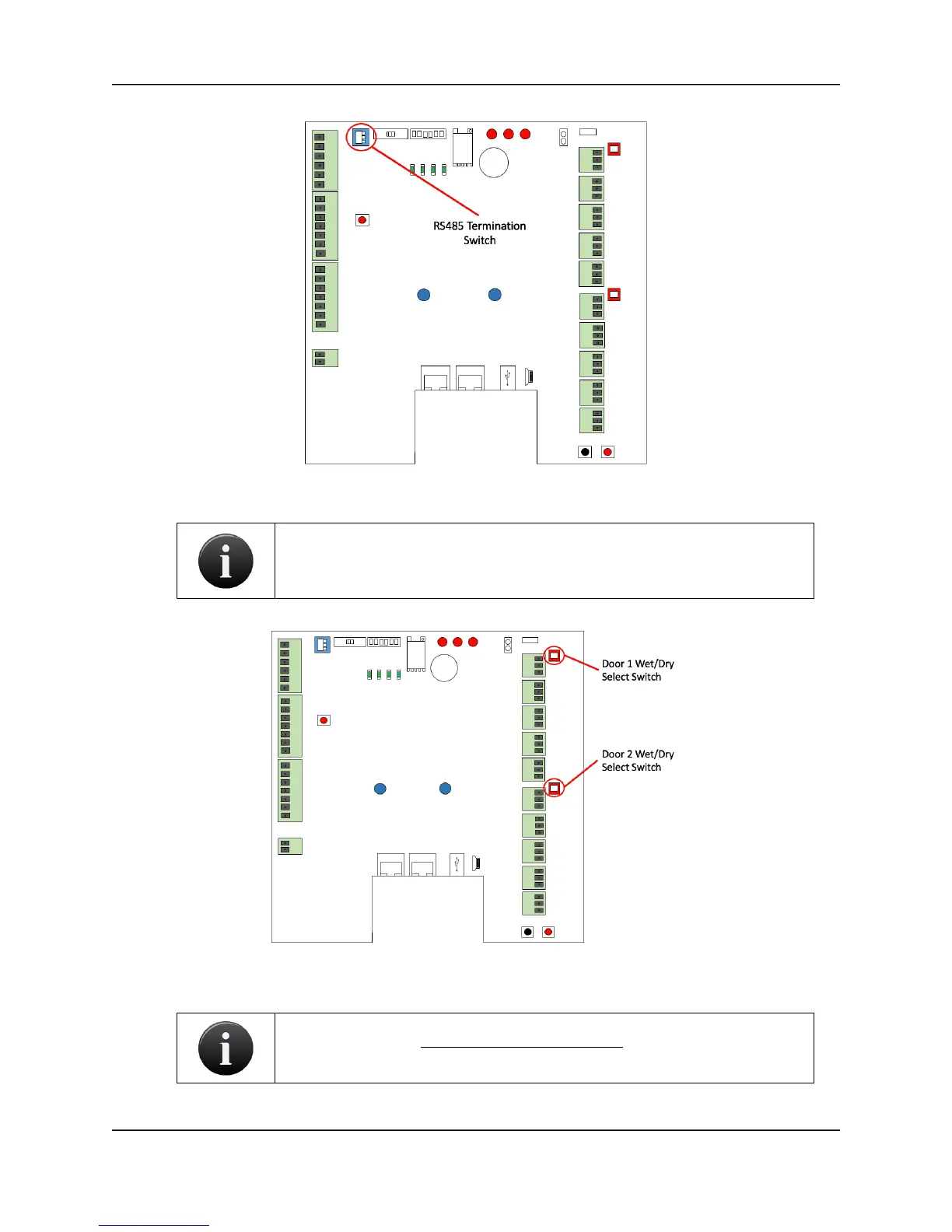

RS-485 Termination Switch Location
NOTE: Door lock relays can be provided with power by using Door 1
Wet/Dry Switch above Door Node 1 and Door 2 Wet/Dry Switch above
Door Node 2.
ACS300 Wet/Dry Door Contact Switches for Doors 1 and 2
NOTE: Refer to the Reader/Keypad Wiring Guide for Brivo approved
devices and connection diagrams.
