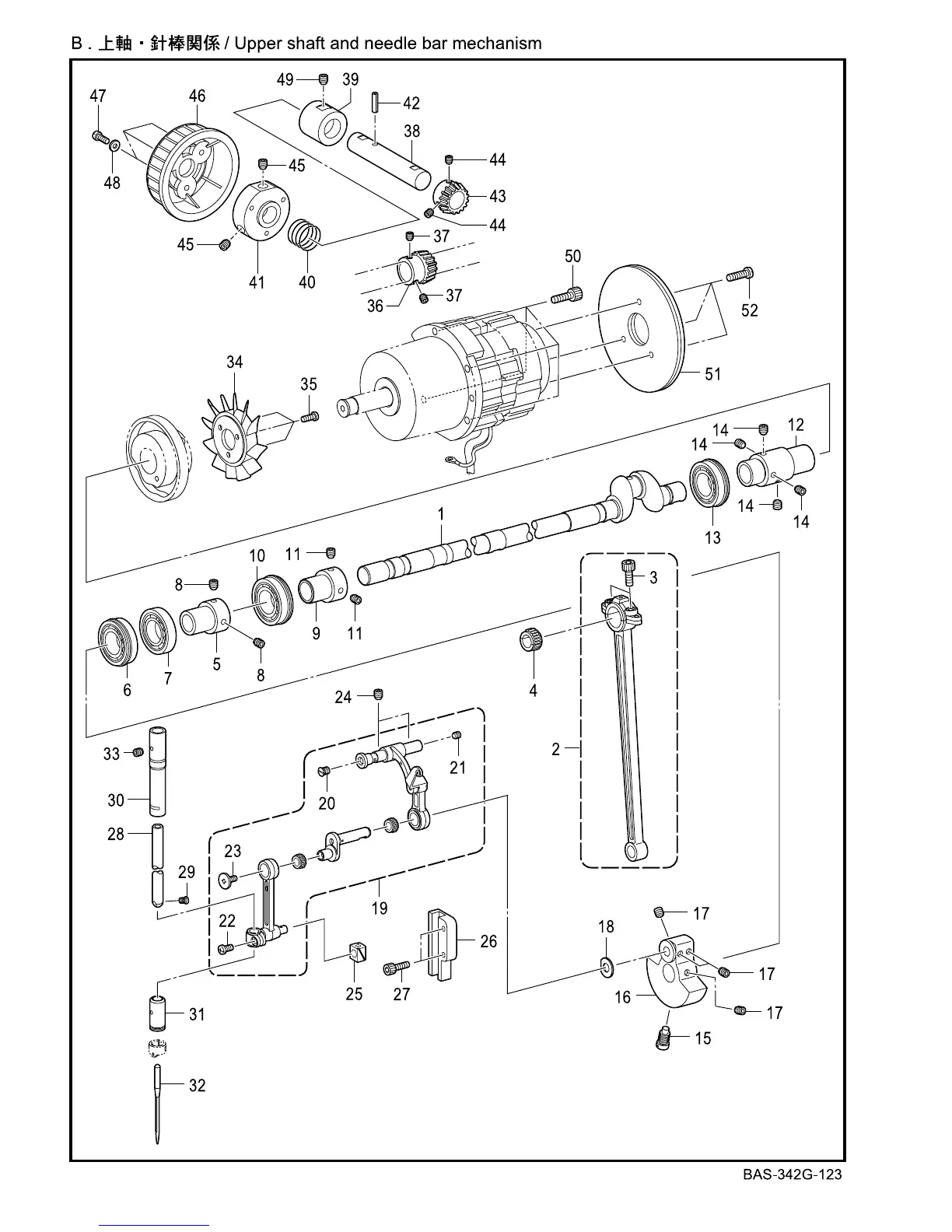

B. / Upper shaft and needle bar mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA8565101 1
2 SA3499001 1 CRANK ROD ASS
BOLT SOCKET M5X16
4 SA4172001 1
NEEDLE BEARING: BLUE
4 SA4173001 1
NEEDLE BEARING: YELLO
BALL BEARING BUSH
6 SA4179001 1
BALL BEARING 6904DDUN
BALL BEARING 6904DDU
8 S23651001 2 SET SCREW SOCKET (FT) M6X6
9 SA3206001 1
BALL BEARING BUSH
10 SA4177001 1
BALL BEARING 6004DDUN
11 S23651001 2 SET SCREW SOCKET (FT) M6X6
12 SA4608101 1
JOINT G
13 SA4178001 1
BALL BEARING 6204DDUN
14 S23651001 4 SET SCREW SOCKET (FT) M6X6
15 S25235001 1
SCREW M8
16 SA4609101 1 THREAD TAKE-UP CRANK G
17 S23651001 4 SET SCREW SOCKET (FT) M6X6
18 110367001 1
THREAD TAKE-UP LEVER FK SE
SCREW FLAT M5X6
21 012500536 1 SET SCREW SOCKET (FT) M5X5
22 062400816 1 SCREW PAN M4X8
23 145465001 1
SCREW, SM3.57-40X6 L
24 012060636 2 SET SCREW SOCKET (FT) M6X6
25 142211001 1 SLIDE BLOC
26 SA3528001 1 SLIDE BLOCK GUIDE
27 018401636 2
BOLT SOCKET M4X16
28 SA4622001 1
SET SCREW, SM3.57-40X4.5
30 SA4666001 1
NEEDLE BAR BUSH D
32 145646019 1 NEEDLE, DPX17
33 012060536 1 SET SCREW, SOCKET (FT) M6X5
34 S38713100 1 FAN
35 062400816 3 SCREW PAN M4X8
36 SA6108001 1
37 012500536 2 SET SCREW SOCKET (FT) M5X5
38 SA4626101 1
PULLEY SHUFT
39 SA4627001 1
PULLEY BUSH
40 SA4628101 1
PULLEY SPRING
41 SA4629001 1
PULLEY BASE
42 047401242 1
PIN SPRING ROLL AW4
43 SA4624001 1
PULLEY GEAR L
44 012500536 2 SET SCREW SOCKET (FT) M5X5
45 S23651001 2 SET SCREW SOCKET (FT) M6X6
46 SA4630001 1
47 062401006 3 SCREW PAN M4X10
48 SA5158101 3
WASHER PLAIN L 4
49 012060636 1 SET SCREW SOCKET (FT) M6X6
50 018501636 4
BOLT SOCKET M5X16
51 SA5230001 2 FRIES WHEEL 2
52 062401016 3 SCREW PAN M4X10
BAS-342G-123
8
