Brother BAS-342G Parts Book

9

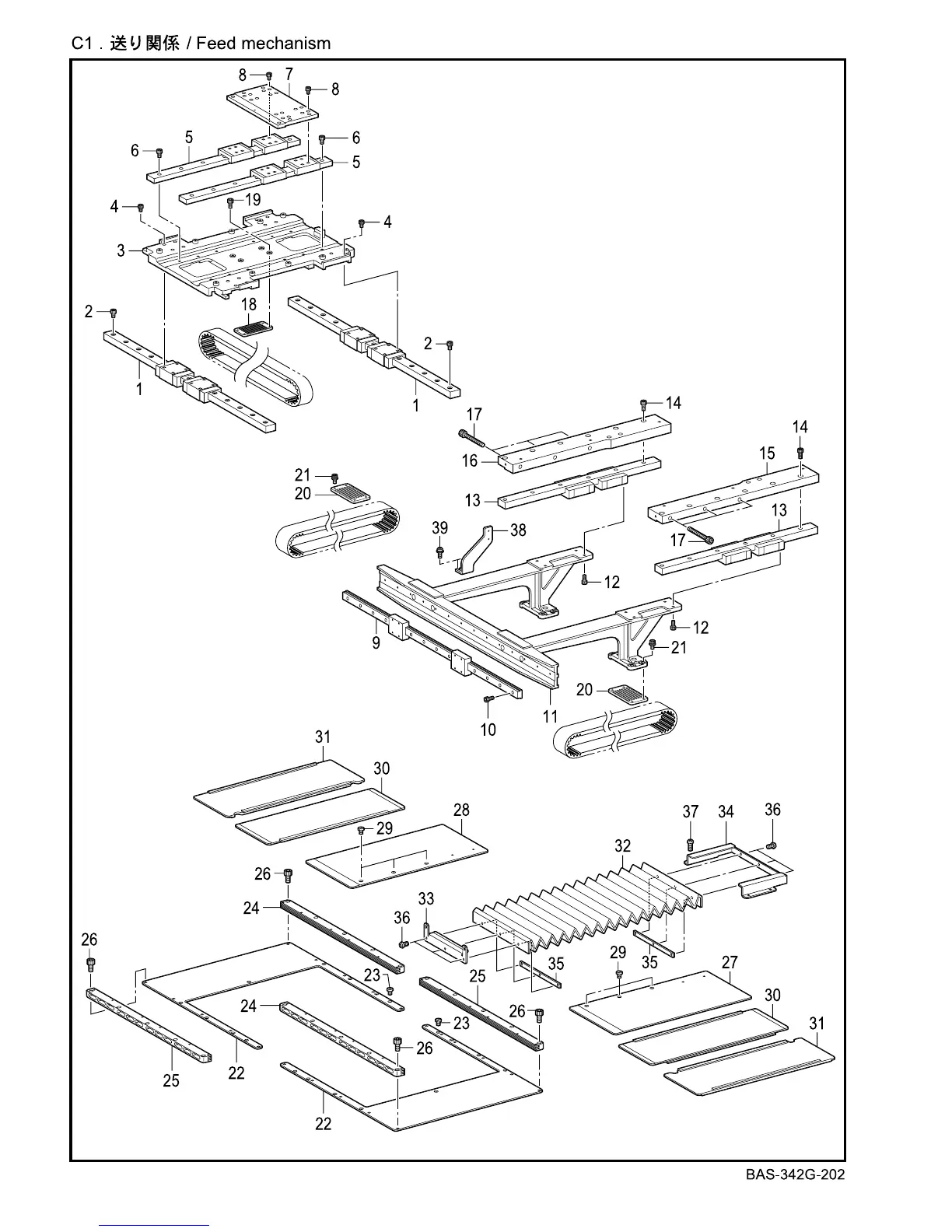

C1. 󲃮󲏱 / Feed mechanism
REF.NO CODE Q'TY  NAME OF PARTS RM
1 SA8566001 2 󲩐󲨥󲩄󲩅
󳈈
󳈀󳈥󲨾 X-LM GUIDE F
2 018400836 22 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨰 BOLT SOCKET M4X8
3 SA8567001 1 󲩐󳈵󲨥󳈕󳈀󳈛 BASE PLATE
X
4 018300536 16 󳇾󳈦
󳈸
󳉇󳈤󲨫󲩐󲨭 BOLT SOCKET M3X5
5 SA8568001 2 󲩑󲨥󲩄󲩅
󳈈
󳈀󳈥󲨾 Y-LM GUIDE F
6 018400836 12 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨰 BOLT SOCKET M4X8
7 SA8569101 1 󲩑󳈵󲨥󳈕󳈀󳈛󳈋󳈻 BASE PLATE Y ASS
Y
8 018300536 16 󳇾󳈦
󳈸
󳉇󳈤󲨫󲩐󲨭 BOLT SOCKET M3X5
9 SA8571001 1 󲩐󲨥󲩄󲩅
󳈈
󳈀󳈥󲩊 X-LM GUIDE R
10 018301036 14 󳇾󳈦
󳈸
󳉇󳈤󲨫󲩐󲨩󲨨 BOLT SOCKET M3X10
11 SA8819001 1 󲩑󳇾󲨥󳈼󳈋󳈻 Y-ARM ASS
Y
12 018401236 8 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨩󲨪 BOLT SOCKET M4X12
13 SA8574001 2 󲩑󲨥󲩄󲩅
󳈈
󳈀󳈤󲩊 Y-LM GUIDE R
14 018501236 12 󳇾󳈦
󳈸
󳉇󳈤󲨭󲩐󲨩󲨪 BOLT SOCKET M5X12
15 SA8575001 1 󲩑󳉆󳈧󳇾
󳈈
󳈀󳈥󳈑󳈑󳈄󲩊 Y-LM GUIDE BRACKET
R
16 SA8576001 1 󲩑󳉆󳈧󳇾
󳈈
󳈀󳈥󳈑󳈑󳈄󲩄 Y-LM GUIDE BRACKET L
17 018066036 6 󳇾󳈦
󳈸
󳉇󳈤󲨮󲩐󲨮󲨨 BOLT SOCKET M6X60
18 SA8590001 1 󳈵󳉇󳈤󳈆󳈑󳈄󳈀󳈛 BELT HOLDER
19 018401036 4 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨩󲨨 BOLT SOCKET M4X10
20 SA8590001 2 󳈵󳉇󳈤󳈆󳈑󳈄󳈀󳈛 BELT HOLDER
21 S55481001 8 󳇾󳈦
󳈸
󳉇󳈤
󳈒
󳈋󳈻󲨬󲩐󲨩󲨪 BOLT SOCKET (S/P WASHER) M4X12
22 SA8608001 2 󳈏󳈢󳈀󳈇
󳈬
󲨥 FIXATION
23 SA3538001 14 󳈓󳈽󳈩
󳈔
󲨬󲩐󲨰 SCREW, M4X8
24 SA8609001 2
󳈇
󳈬
󲨥󳉈󲨥󳉇󲨾󲩊󳈋󳈻 COVER RAIL FR ASS
Y
25 SA8611001 2 󳈇
󳈬
󲨥󳉈󲨥󳉇󲨾󲩄󳈋󳈻 COVER RAIL FL ASS
Y
26 018401036 20 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨩󲨨 BOLT SOCKET M4X10
27 SA8612001 1 󳈂󳈝󳈇
󳈬
󲨥󲩊󳈋󳈻 INSIDE COVER R ASS
Y
28 SA8615001 1 󳈂󳈝󳈇
󳈬
󲨥󲩄󳈋󳈻 INSIDE COVER L ASS
Y
29 SA3538001 6 󳈓󳈽󳈩
󳈔
󲨬󲩐󲨰 SCREW, M4X8
30 SA8617001 2 󳈦󳈇󳈇
󳈬
󲨥󳈋󳈻 MIDDLE COVER ASS
Y
31 SA8619001 2 󳈙󳈤󳈇
󳈬
󲨥󳈋󳈻 OUTSIDE COVER ASS
Y
32 SA8622001 1
󳈔
󳈿
󳈬
󳉅 BELLO
W
33 SA8623001 1
󳈔
󳈿
󳈬
󳉅󳈆󳈑󳈄󲨾 BELLOW PRESSER F
34 SA8624001 1
󳈔
󳈿
󳈬
󳉅󳈆󳈑󳈄󲩊 BELLOW PRESSER
R
35 SA8625001 2
󳈔
󳈿
󳈬
󳉅󳈦󳈟󳈤 BELLOW NUT
36 062300416 6 󳈦󳈵󳈏󲨫󲩐󲨬 SCREW PAN M3X4
37 062401016 4 󳈦󳈵󳈏󲨬󲩐󲨩󲨨 SCREW PAN M4X10
38 SA8626001 1 󲩑󳈗󳉏󳈑󲨥󳈤󳉆󳈠󳈍󳈀󳈛 SENSOR PLATE
Y
39 0A5401006 2 󲨣󳈦󳈵
󳈒
󳈋󳈻󲨬󲩐󲨩󲨨󲨼󲨺 SCREW PAN (S/P WASHER) M4X10
BAS-342G-202
