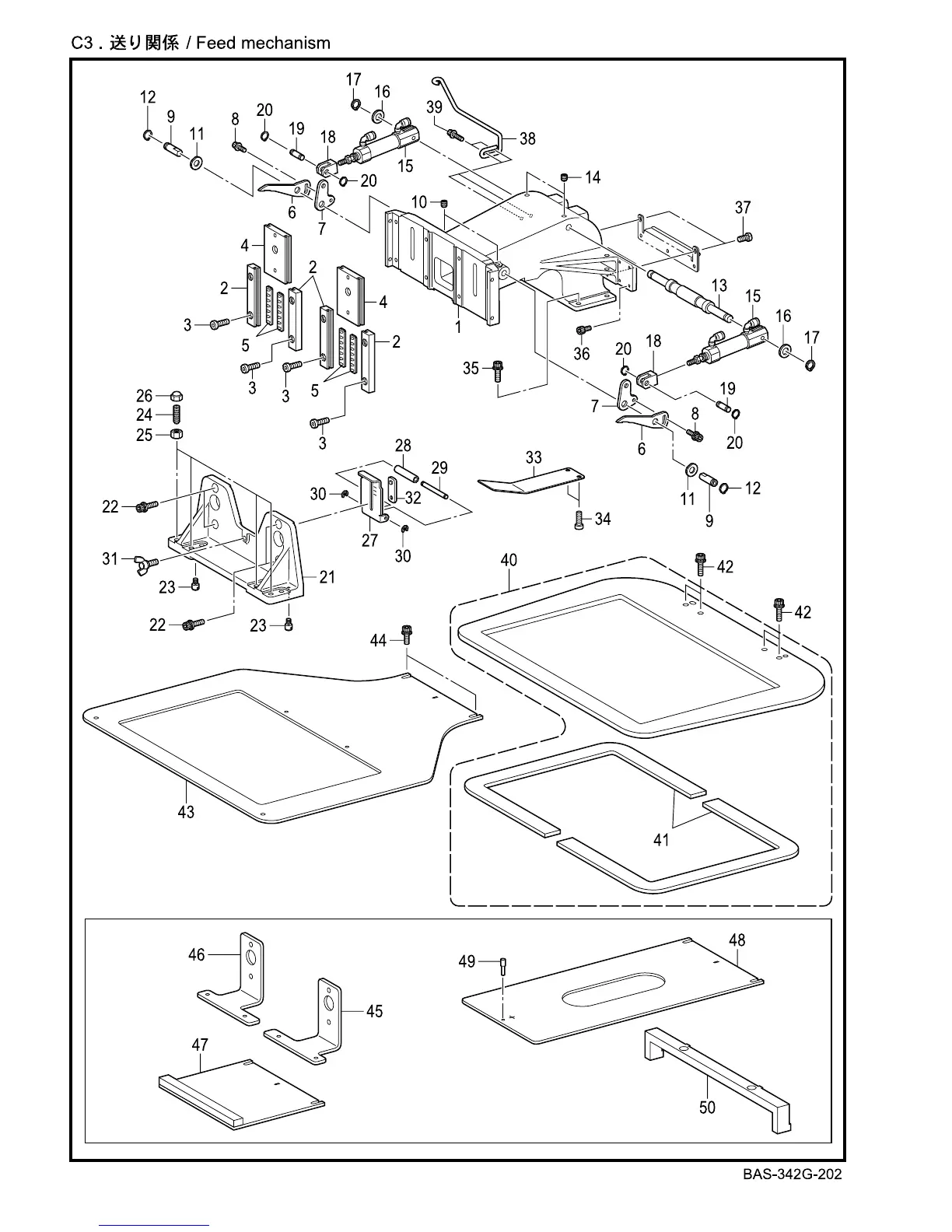

C3. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA8628001 1
WORK CLAMP ARM
2 SA8629001 4 WORK CLAMP GUIDE ASS
BOLT SOCKET M5X12
4 SA8631001 2
5 SA8632001 4 CROSS ROLLE
WORK CLAMP LIFTER LEVER U
7 SA8634001 2
BOLT SOCKET (S/P WASHER) M4X8
9 SA4771001 2
SHAFT STEPPING CLAMP LIFT LIN
10 012060636 2 SET SCREW SOCKET (FT) M6X6
11 110367001 2
RETAINING RING EXTERNAL C8
13 SA8635001 1
CYLINDER SHAFT
14 012060636 2 SET SCREW SOCKET (FT) M6X6
15 SA8636001 2
WASHER, PLAIN 5
17 048040342 2 RETAINING RING E4
18 SA4720001 2
CYLINDER JOINT
19 SA4721001 2
CYLINDER JOINT SHAFT
20 048060142 4
RETAINING RING EXTERNAL C6
21 SA8638001 1 WORK CLAMP
22 S55485001 4
BOLT SOCKET (S/P WASHER) M5X12
23 SA4709001 2
SET SCREW, M6X19
25 021060206 4 NUT 2 M6
26 SA8909001 4 NUT, CAP M6
27 SA8640001 1 WORK CLAMP STOPPE
28 SA8641001 1
WORK CLAMP STOPPER RUBBE
29 SA8820001 1 ROLLER SHAFT
30 048030342 2 RETAINING RING E3
31 SA8642001 1
32 SA8643001 1 WORK CLAMP PLATE NU
WORK CLAMP SPRING
34 SA8597001 2
BOLT SOCKET M5X12
35 S55485001 4
BOLT SOCKET (S/P WASHER) M5X12
36 018300836 8
BOLT SOCKET M3X8
37 062500816 2 SCREW PAN M5X8
38 SA8645001 1 HOSE SUPPOR
BOLT SOCKET (S/P WASHER) M4X12
40 SA8646001 1 WORK CLAMP ASS
41 SA8818001 2 WORK CLAMP CUSHION
42 S55487001 4
BOLT SOCKET (S/P WASHER) M5X16
43 SA8648001 1 FEED PLATE
44 SA8904001 2
BOLT SOCKET (S/P WASHER) M5X10L
<Option parts>
45 SA8859001 1 WORK CLAMP CONVERSION
46 SA8860001 1 WORK CLAMP CONVERSION L
47 SA8871001 1 FEED PLATE CONVERSION ASS
ORIGIN STANDARD PLATE
49 SA5415001 1
ORIGIN STANDARD PIN
50 SA8870001 1
BASE PLATE Y POSITION BLOC
