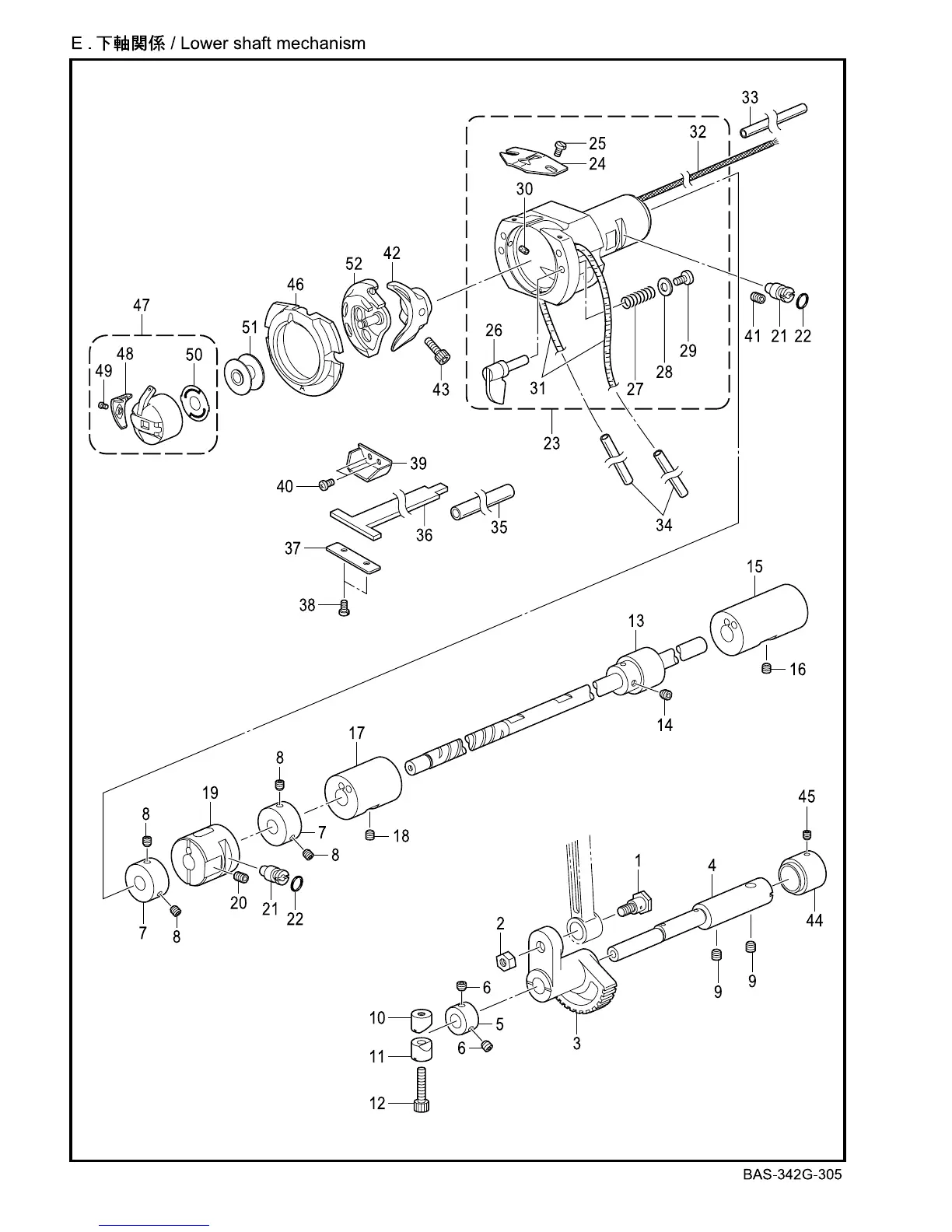

E. / Lower shaft mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA3226001 1
2 SA3227001 1 NUT(FT), M6
3 SA3228101 1
5 SA3231001 1 SET SCREW COLLAR, B
6 012060536 2 SET SCREW, SOCKET (FT) M6X5
7 SA8695001 2 SET SCREW COLLA
8 S23651001 4 SET SCREW SOCKET (FT) M6X6
9 012060636 2 SET SCREW SOCKET (FT) M6X6
10 SA8696001 1
PINCH SLEEVE B
12 018402036 1
BOLT SOCKET M4X20
13 SA8698001 1
14 012500536 1 SET SCREW SOCKET (FT) M5X5
15 SA8701001 1
LOWER SHAFT BUSH
16 012060636 1 SET SCREW SOCKET (FT) M6X6
17 SA8702001 1
LOWER SHAFT M BUSH
18 012060636 1 SET SCREW SOCKET (FT) M6X6
19 SA8703001 1
LOWER SHAFT A-BUSH
20 012061036 1 SET SCREW SOCKET (FT) M6X10
21 SA3238101 2
DJUSTING STUD
22 081003670 2
O RING PW3
23 SA8705001 1 SHUTTLE RACE BASE ASS
24 S02429201 1 SHUTTLE RACE THREAD GUIDE
25 SA4199001 2
SCREW M3X4
26 SA3241001 2 S-RACE BASE SETTING CLA
COMPRESSION SPRING
28 026030136 2
WASHER PLAIN S 3
29 062300616 2 SCREW PAN M3X6
30 153050000 2 S-RACE BASE FEL
31 SA8707001 2 FELT
32 SA9004001 1 WICK 6X6
33 SA8709001 1
OIL TUBE
36 SA8712101 1 FELT
37 SA8713001 1 FELT HOLDER
38 S44924001 2
SCREW M3X5.5
39 SA3274101 1 FELT HOLDER
40 S47307001 2
SCREW, M3X4
41 012061036 1 SET SCREW SOCKET (FT) M6X10
42 SA3284101 1
DRIVER D
43 018501236 1
BOLT SOCKET M5X12
44 SA3283101 1 SET SCREW COLLAR,
45 012500536 1 SET SCREW SOCKET (FT) M5X5
46 152686201 1 SHUTTLE RACE BASE B
47 S59221201 1
BOBBIN CASE ASSY L
TENSION SPRING, AN
49 S16492101 1
NTI-SPIN SPRING
51 S44633001 1
BOBBIN LAN
52 SA8197101 1 SHUTTLE HOOK ASSY W/BOXSA8196
BAS-342G-305
