23

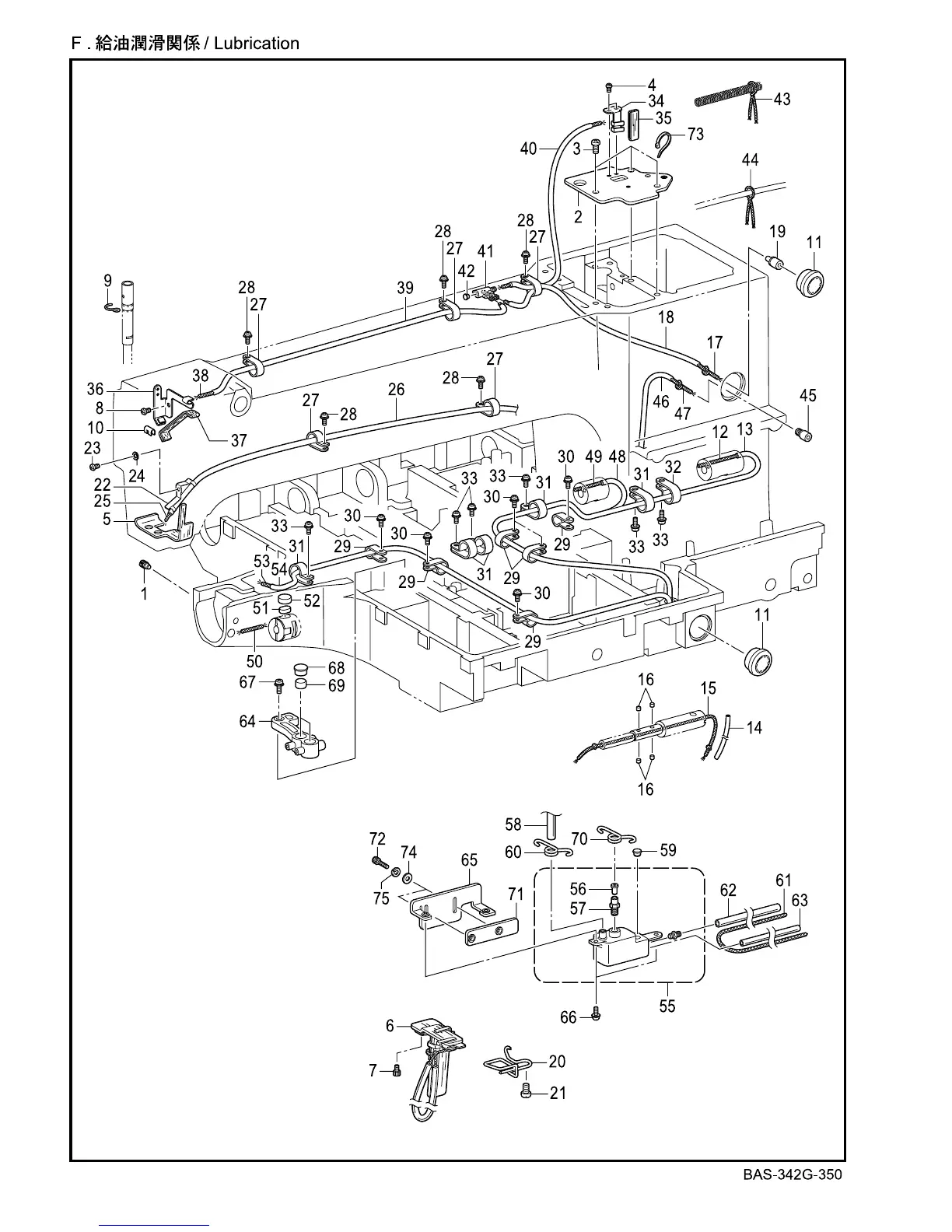

F. 󱙯󰳅󰹃󰷷󲏱 / Lubrication
REF.NO CODE Q'TY  NAME OF PARTS RM
64 SA3946001 1 󳈉󳉂󳈂󳉂󳈛󲨥󳈻󳈦󳉇 OIL TERMINAL
65 SA8736001 1 󳈉󳉁󳈂󳉂󳈀󳈛 OIL PLATE
66 0A5401006 2 󲨣󳈦󳈵
󳈒
󳈋󳈻󲨬󲩐󲨩󲨨󲨼󲨺 SCREW PAN (S/P WASHER) M4X10
67 0A5401006 1 󲨣󳈦󳈵
󳈒
󳈋󳈻󲨬󲩐󲨩󲨨󲨼󲨺 SCREW PAN (S/P WASHER) M4X10
68 SA2929001 2
󳈐
󳈼󳈗󳉏󲨩󲨪󲨦󲨭 RUBBER CAP, 12.5
69 S38266000 2 󳈇󳈺
󳈔
󳈋󳈱󳈄󳉇󳈤 ROTARY HOOK SHAFT FELT
70 SA3055101 1 󳈝󳉂󲨥
󳈲
󳈕󳈤󳈠󳈭󲨥 TUBE CLIP
71 SA4650001 1 󲩑󳈗󳉏󳈑󲨥󳈀󳈛 Y-SENSOR PLATE
72 018402036 2 󳇾󳈦
󳈸
󳉇󳈤󲨬󲩐󲨪󲨨 BOLT SOCKET M4X20
73 S04159000 1
󳈬
󳈀󳉏󳈥󲨩󲩅 BAND 1M
74 025040236 2 󳈮󳉅
󳈒󳈈
󳈩󳈝󳉁󳈂󲨬 WASHER PLAIN M 4
75 028040246 2
󳈬
󳈩
󳈒󳈈
󳈩󲨪󲨥󲨬 WASHER SPRING 2-4
BAS-342G-350
24
