BE-1204B-BC • BE-1206B-BC 3-5
Chapter 3 Embroidering Procedures

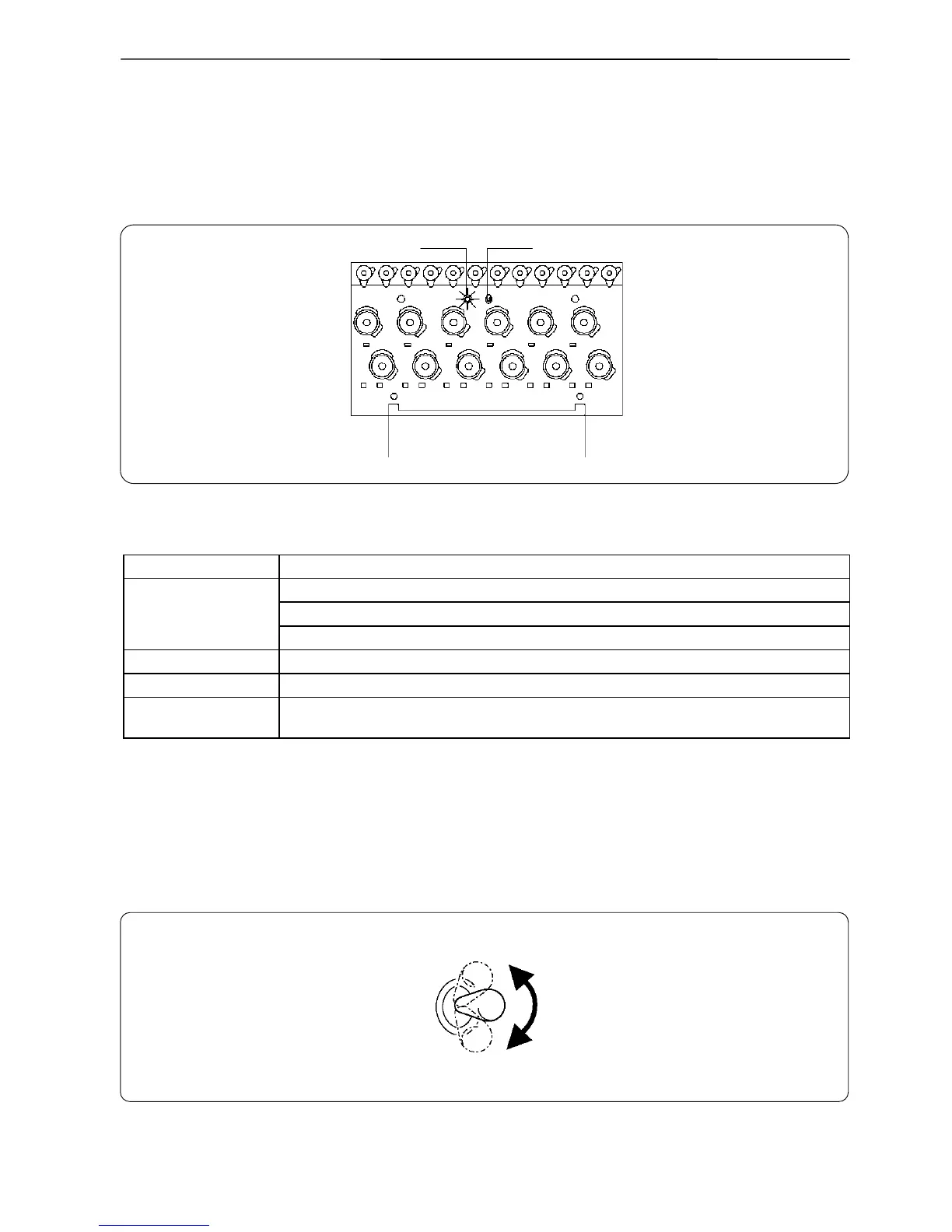

Lamps and switches on the thread tension stand
The thread tension stand has lamps and switches mounted on it.
Switches can set movements of the heads such as to drive, to suspend or mending, and those
statuses can be checked by lamps.
W1258Q
! Thread tension stand lamp
Shows statuses of each head of the machine.
Lamp illumination Machine head status
The head is suspended
The head is not suspended but its mending is set to OFF.
Off
Some other head has an error.
Illuminates green The head is ready to drive.
Blinks green The head has an error. Blinking will change into illuminating when the error is cleared.
Blinks red
The head has a thread breakage error. Blinking will change into illuminating when the
error is cleared.
! Thread tension stand switch
Sets drive/suspend of each head and ON/OFF of the mending.
Mending is a function to drive or suspend the head for the specified time period when the machine
steps back during embroidering.
• Switching of drive/suspend should be done when the machine is stopped.
• Switching of the mending should be done when the machine is suspended during embroidering.
W1259Q
Thread tension stand lamp Thread tension stand switch
Flip the switch down
to suspend the head.
Flip the switch up to
suspend the head.
Flip up the switch further to
switch ON/OFF the mending.
To Next Page
