&.ASSEMBLY

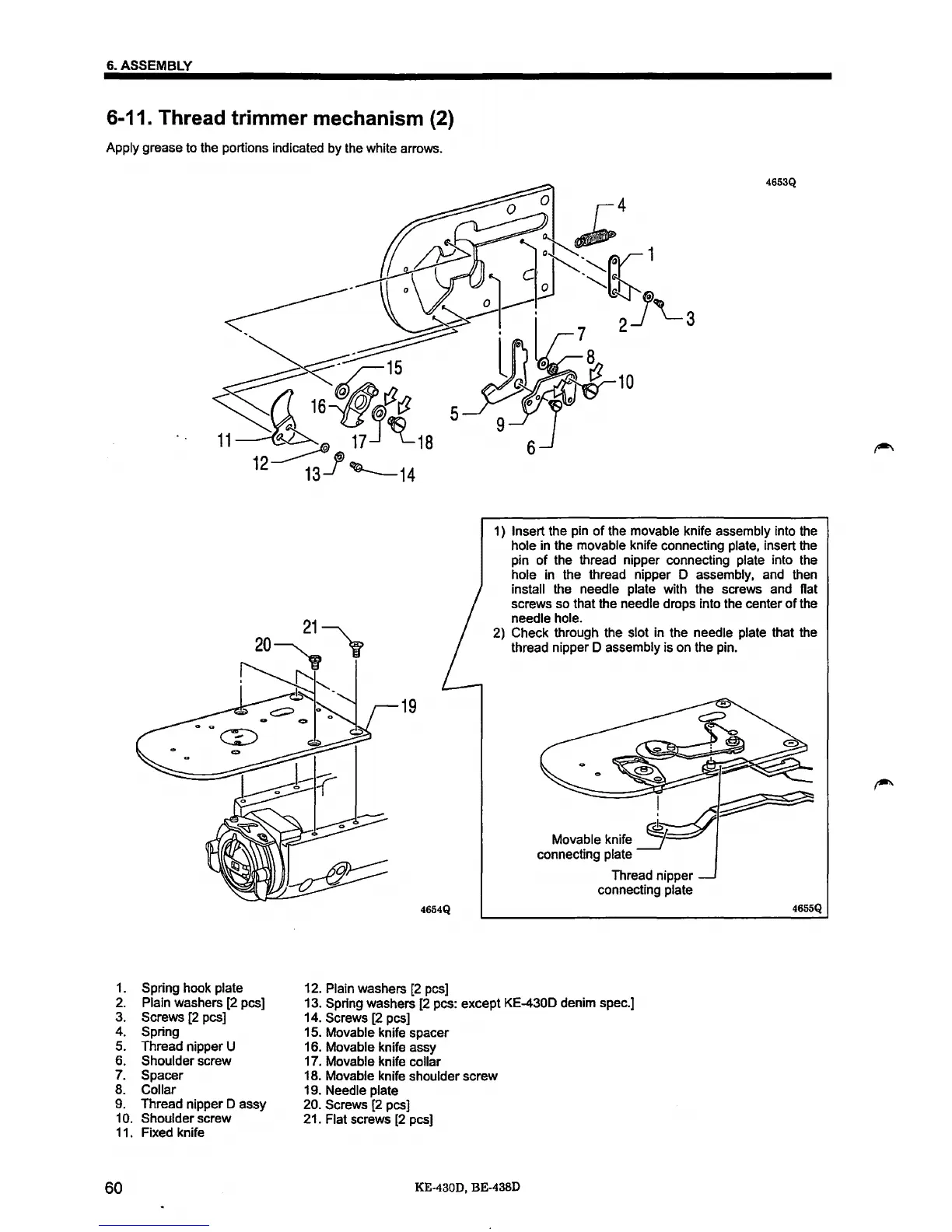

6-11. Thread trimmer mechanism (2)
Apply grease to the portions indicated
by
the white arrows.
1.
Spring hook plate
2.
Plain washers [2 pes]
3.
Screws [2
pes]
4.
Spring
5. Thread nipper U
6.
Shoulder screw
7.
Spacer
8. Collar
9.
Thread nipper D assy
1
0.
Shoulder screw
11.
Fixed knife
60
19
4654Q
12. Plain washers
[2
pes]
4653Q
1) Insert the
pin
of
the movable knife assembly into
the
hole
in
the movable knife connecting plate, insert the
pin of the thread nipper connecting plate into the
hole in the thread nipper D assembly,
and
then
install the needle plate with the screws and flat
screws so that the
needle drops into the center
of
the
needle hole.
2)
Check through the slot
in
the needle plate that the
thread nipper D
assembly is on the pin.
Thread nipper
connecting
plate
4655Q
13. Spring washers [2 pes: except KE-430D denim spec.]
14. Screws [2
pes]
15. Movable knife spacer
16.
Movable knife assy
17.
Movable knife collar
18.
Movable knife shoulder screw
19.
Needle plate
20. Screws
[2 pes]
21. Flat screws
[2
pes]
KE-4300, BE-4380
To Next Page
