Chapter 2 Preparation of Embroidery Machine
BES-962BC • BES-1262BC
36
e
r
w
t
q
2-5 Mounting of Cotton Stand
BES-962BC

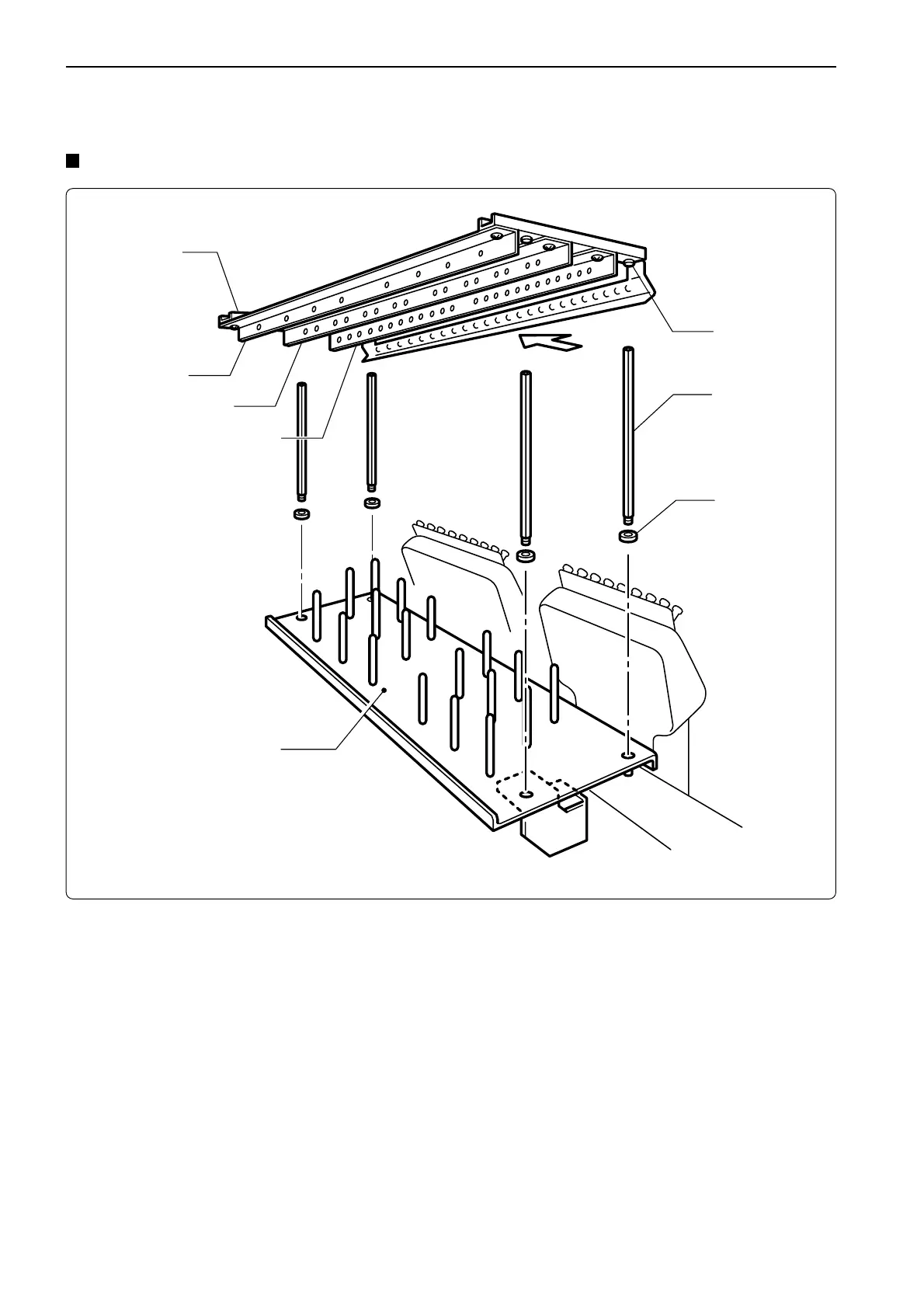

1. Attach four thread guide support bars w to the cotton stand assembly q, while fitting into
the four holes.
2. Mount the thread guide assembly e on the thread guide support bars w using the four
screws r.
Notes) • When mounting, use one flat washer t below the thread guide support bar w.
• Pay careful attention to the front and back directions of the thread guides (A, B, C).
Thread guide C
Thread guide B
Thread guide A
Front
