Brother DCP7010 - Develop Joint; P;R Solenoid ASSY

Confidential
5-65

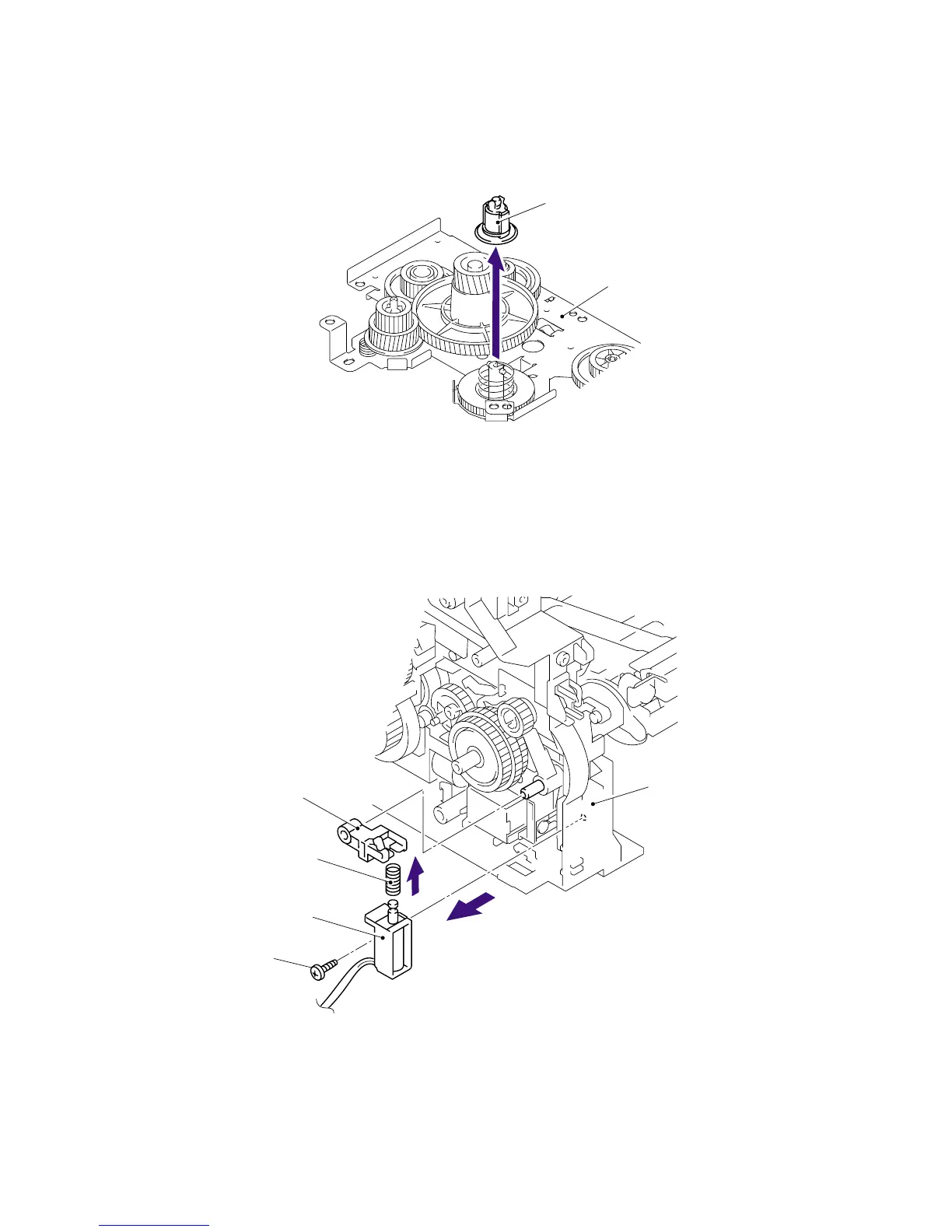

5.1.35 Develop Joint
(1) Remove the develop joint from the gear plate calking ASSY.
5.1.36 P/R Solenoid ASSY
(1) Remove the bind B M3x10, taptite screw.
(2) Remove the P/R solenoid ASSY, the P/R solenoid lever and the solenoid release spring P/R.
P/R solenoid leve
r
Solenoid release spring P/R
P/R solenoid ASSY
Taptite, bind B M3x10
Main frame L
1
2
Gear plate calking ASSY
Develop join
t
