HL-5030/5040/5050/5070N SERVICE MANUAL
4-9

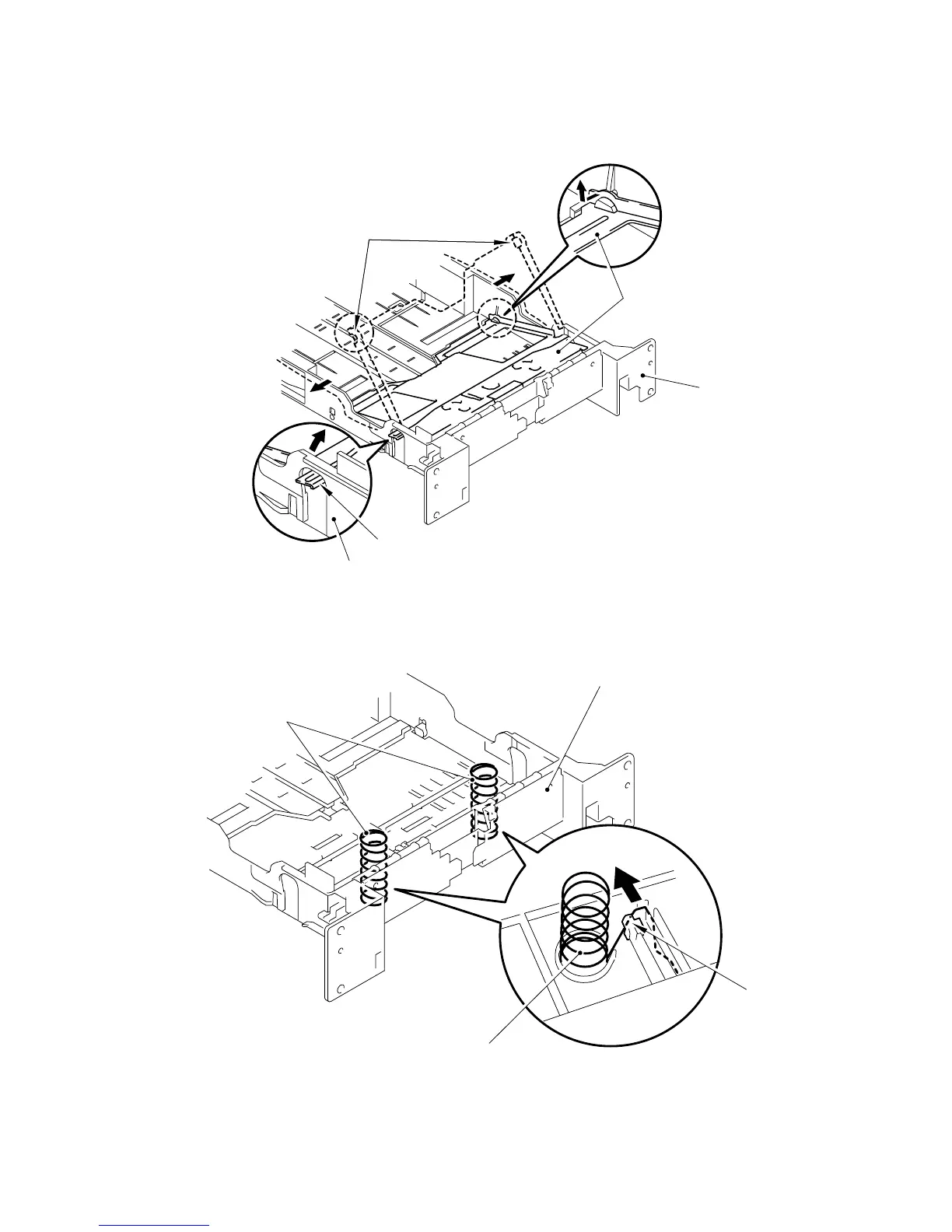

(15) Unhook the two catches (A) of the pressure plate while pulling the plastic frame outwards,
then unhook the other two catches (B) of the plate while pulling the plastic frame
outwards to remove the pressure plate ASSY.
Fig. 4-13
(16) Unhook the pressure plate spring from the plastic hook to remove the two pressure plate
springs.
Fig. 4-14
Pressure plate ASSY
Plastic frame
Catches (A)
Paper tray
Paper tray
Pressure plate spring
Pressure plate spring
Catch (B)
Hook
