3-9

Confidential

7. HARNESS ROUTING

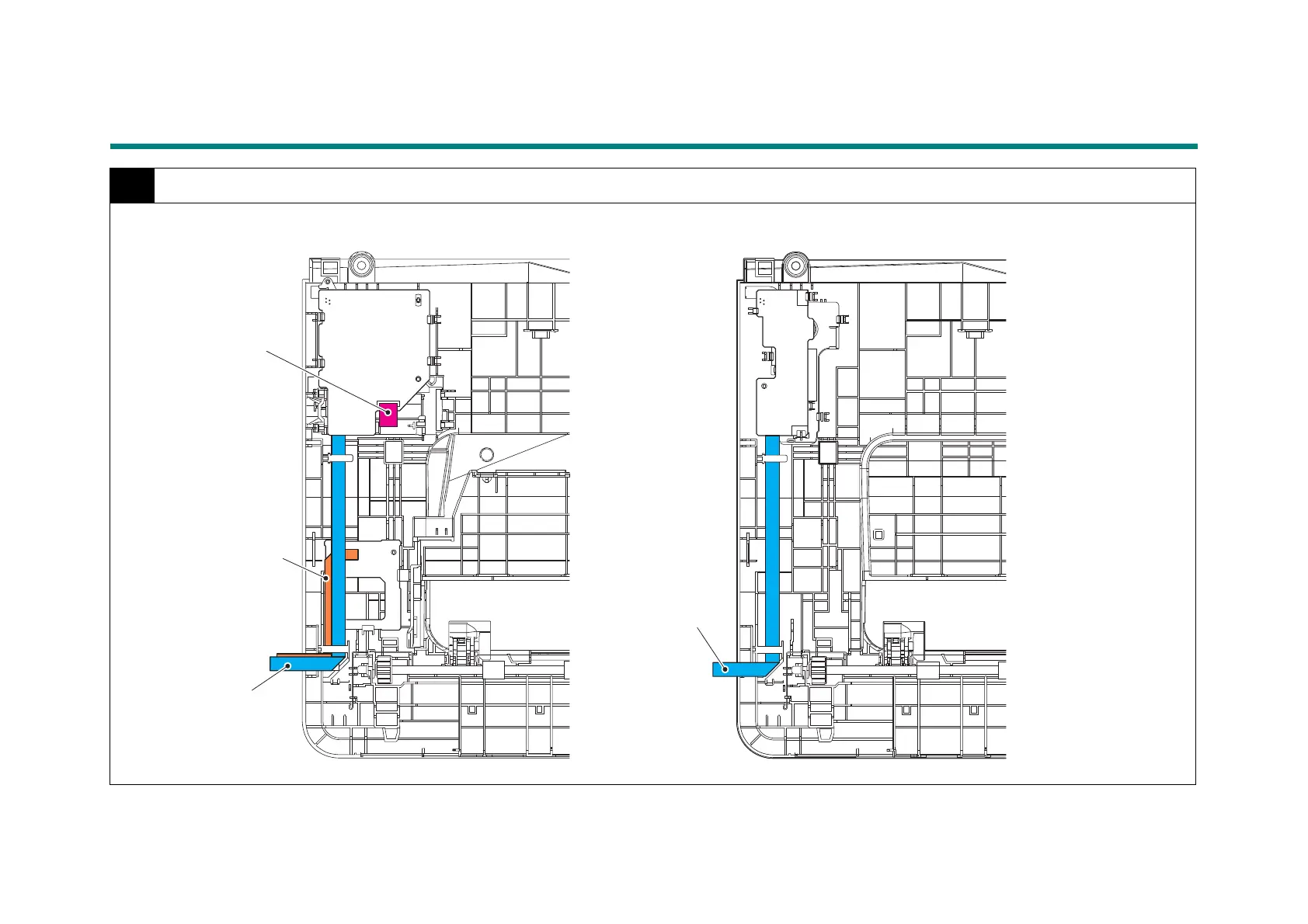

1 Top cover ASSY

Harness colors are subject to change for some reason.

<LCD models>

LCD flat cable

Panel flat cable

Panel flat cable

<LED models>

NFC flat cable

(Only for models with NFC)
