9.8 Side cover L

(1) Release the Hooks A, B, and the Hook C on the Side cover L in order of the arrow A to C,

and remove the Side cover L.

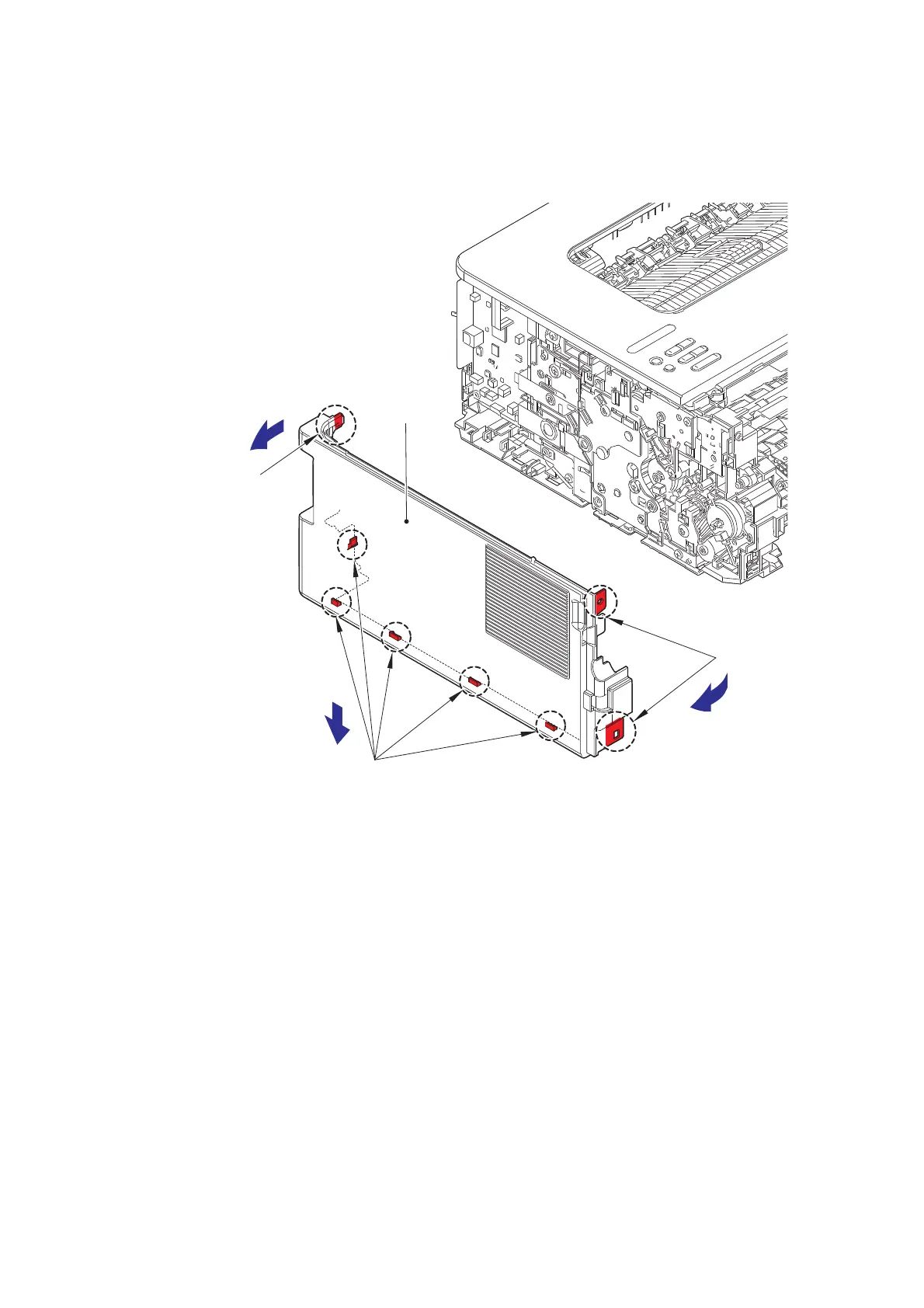

Fig. 3-18

Hooks A

Hooks B

Side cover L

Hook C
