1.4.11 Print maintenance data and frame pattern
This function is used to print maintenance data on the first side and print the frame pattern on
the second side in duplex printing mode. Short Bind is automatically applied to duplex
printing in this mode. When printing is completed, the setting applied prior to Short Bind is
restored.
<Operating Procedure>
(1) Open the front cover while the power switch is turned OFF.
(2) Press and hold the [Go], and turn ON the power switch. The Toner, Drum, and Paper
LEDs light.
(3) Release the [Go]. All LEDs go out.
(4) Press the [Go] twice. The Toner, Drum, and Paper LEDs light.
(5) Press the [Go] twice and close the front cover. Toner, Drum, and Paper LEDs go out in a
second and the maintenance and frame pattern printing starts.

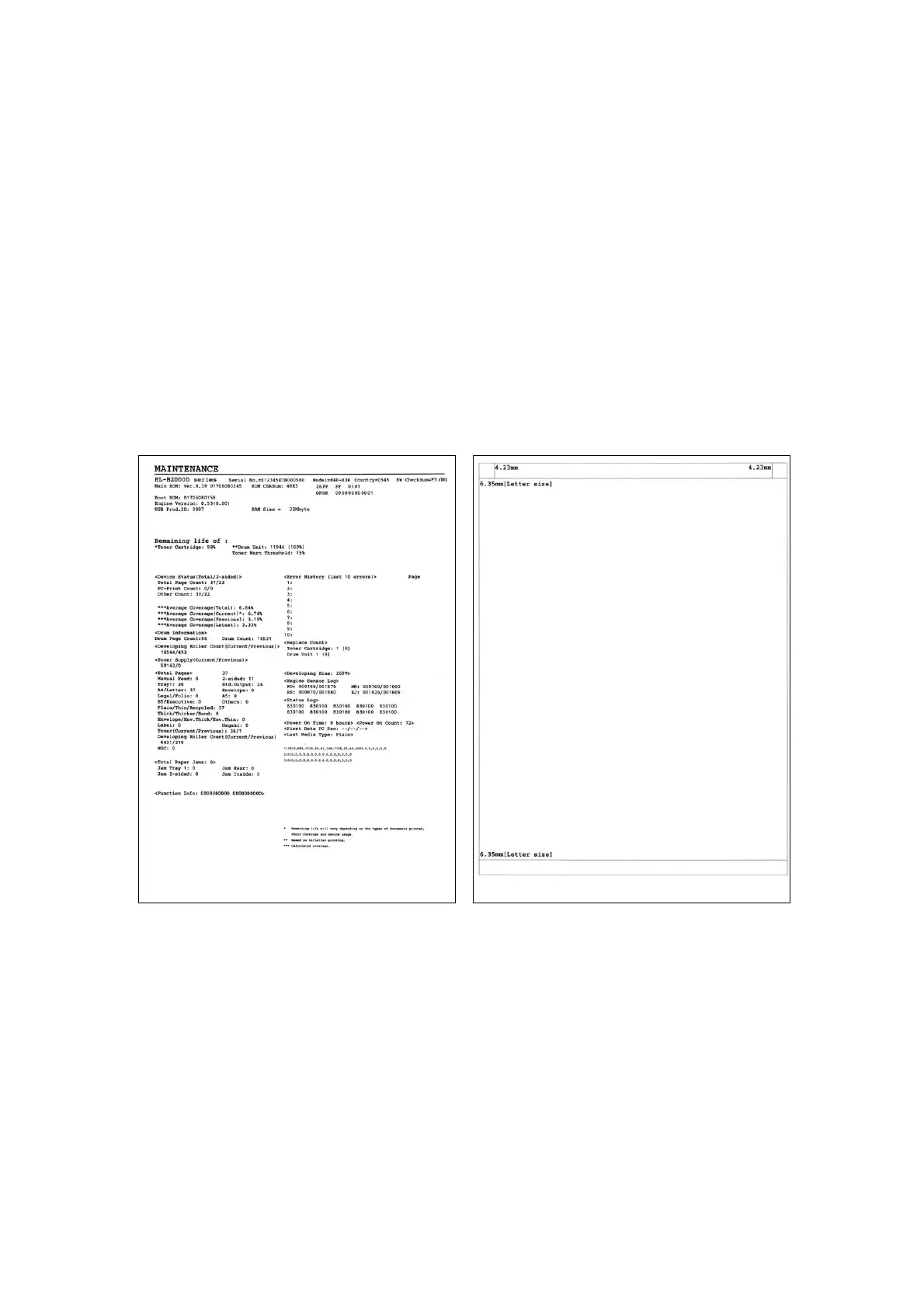

Fig. 5-16
(Second side)(First side)
To Next Page
