3-47
Confidential

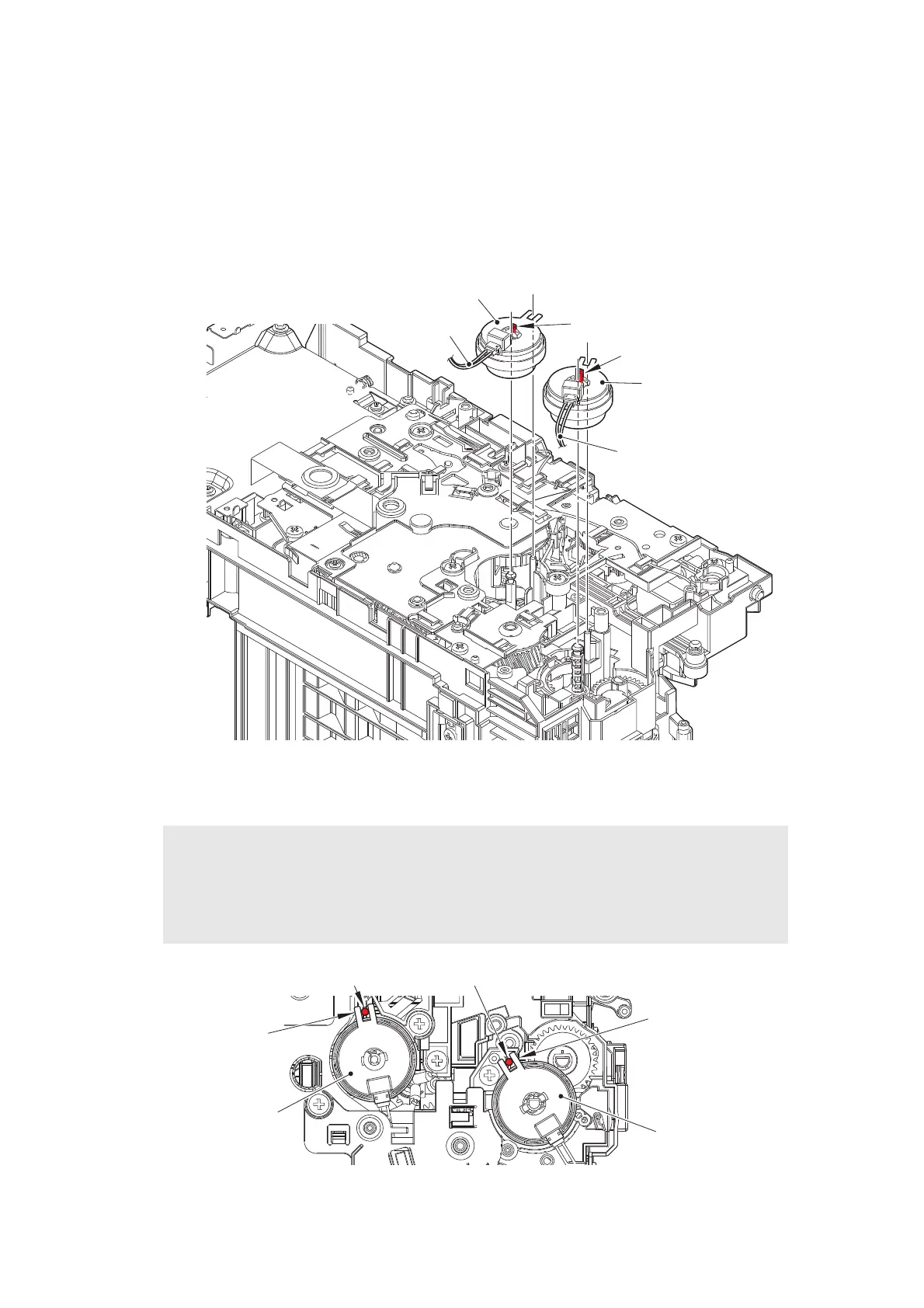

9.21 T1 clutch / Registration clutch
Manual feed models
(1) Release the T1 clutch harness and the Registration clutch harness from the securing
fixtures.
(2) Release the Hook, and remove the T1 clutch.
(3) Release the Hook, and remove the Registration clutch.
Fig. 3-43
Harness routing: Refer to “4. Frame L unit (Manual feed models)”.
Fig. 3-44
Assembling Note:
• When securing the T1 clutch harness and the Registration clutch harness, check that
there is no harness slack.
• Attach the Rotation stoppers of the T1 clutch and the Registration clutch by engaging
them with the Pins of the machine as shown in the figure below.
Registration
clutch harness
Hook
T1 clutch
<Upper side of Frame L>
<Front side>
Hook
Registration clutch
T1 clutch harness
Registration clutch
T1 clutch
Rotation stopper
Pin
Pin
Rotation stopper
To Next Page
