3-12

Confidential

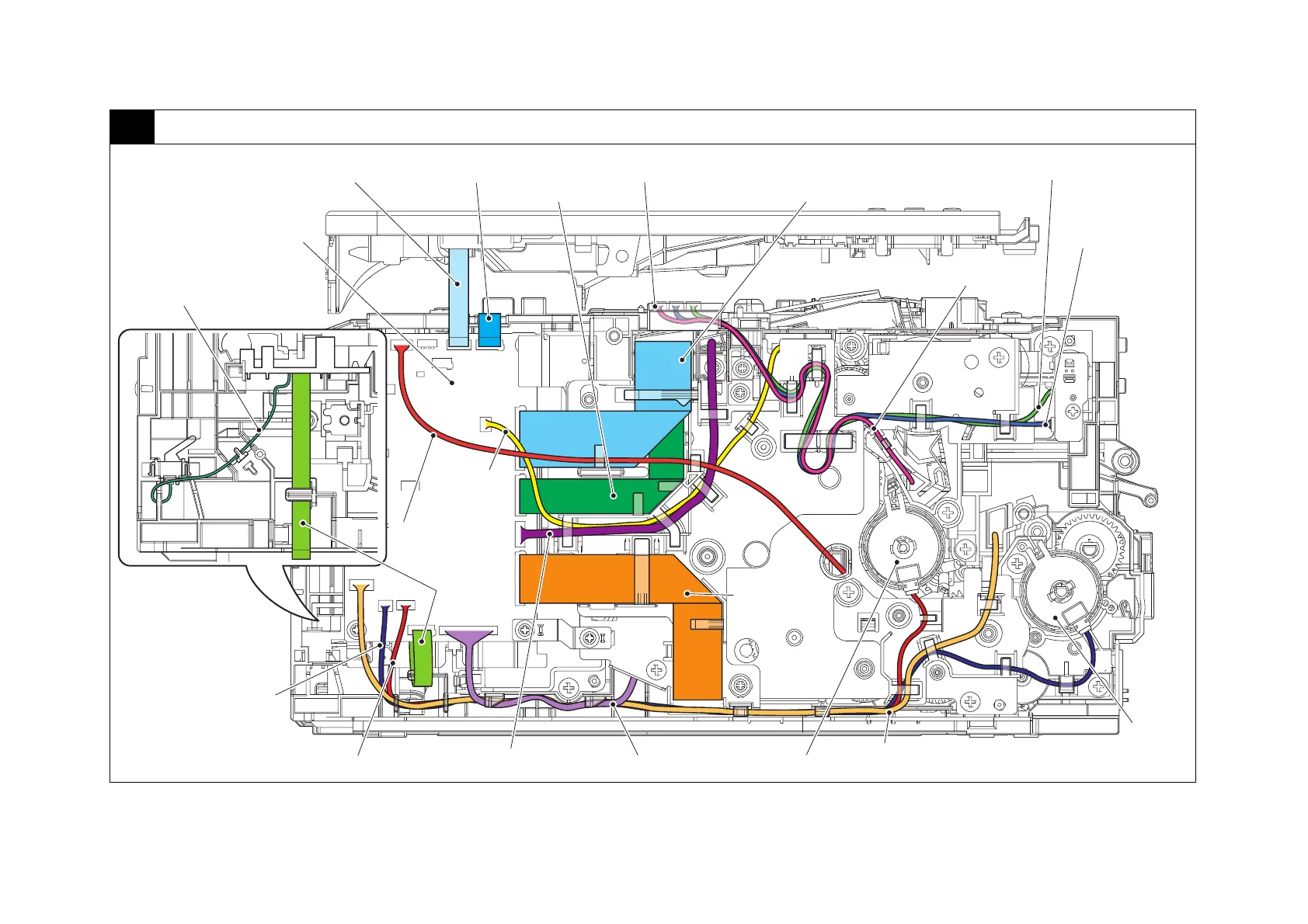

4 Frame L unit (Manual feed models)

Harness colors are subject to change for some reason.

T1 clutch

HVPS flat cable

Laser unit flat cable

Front cover

sensor

harness (YW)

Back cover/duplex tray

sensor harness (RD, BL)

T1 clutch harness (BL)

Registration clutch harness (WH)

Polygon motor harness (WH)

LVPS harness (WH, BK)

Paper feed

motor flat cable

Registration clutch

Paper feed sensor harness

(RD, BL, WH)

Eject sensor

flat cable

Main PCB ASSY

Panel flat cable

Cartridge sensor

harness (WH) *

Toner box solenoid harness (WH) *

Toner box new

harness (BL) *

Relay PCB ASSY*

Toner sensor harness (RD) *

For models with Toner box

For models without Toner box

Toner box relay flat cable*
