1. NAME OF EACH PART
1
KE-436C

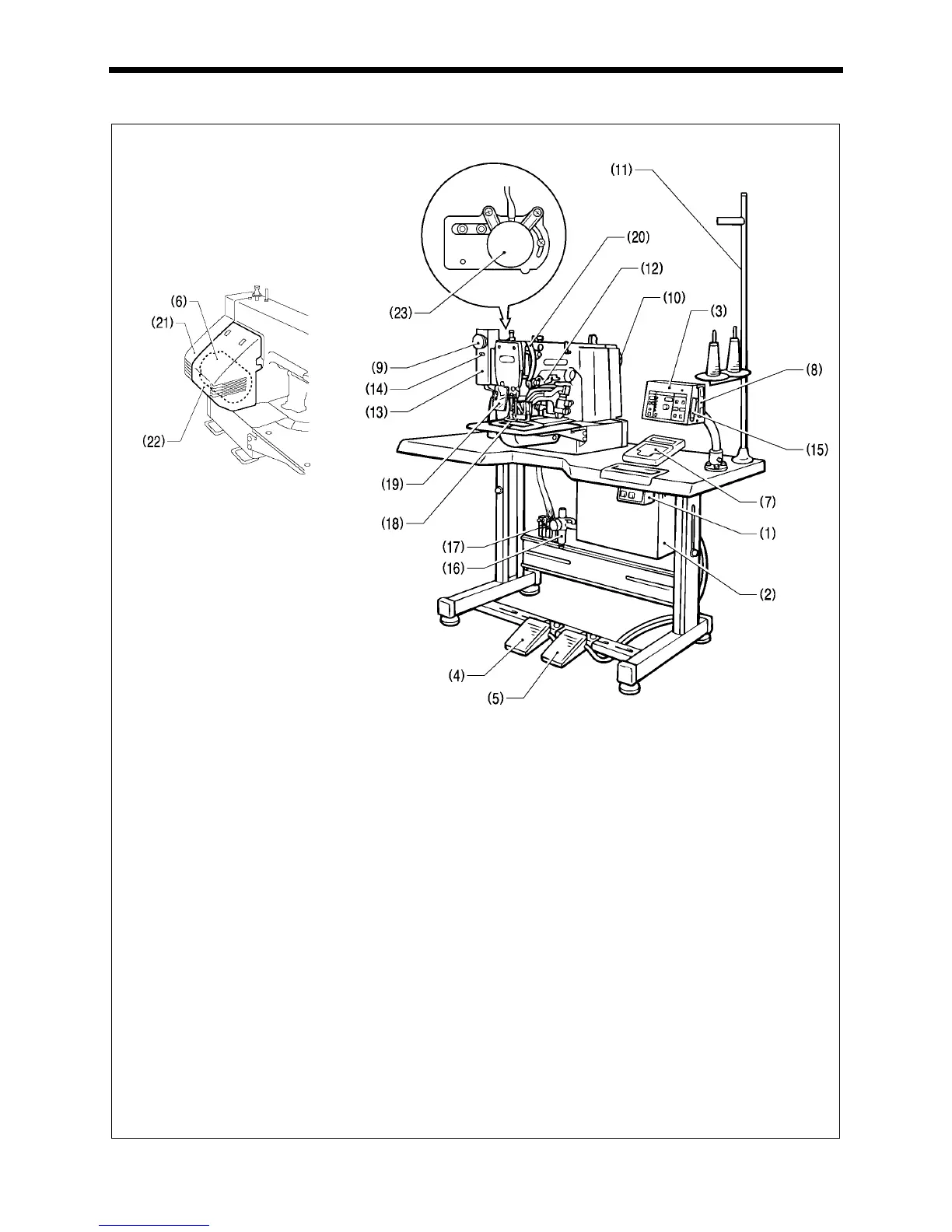

1. NAME OF EACH PART
Safety devices;
(1) Power switch (18) Finger guard
(2) Control box (19) Eye guard
(3) Operation panel (20) Thread take-up cover
(4) Work clamp switch (21) Belt cover
(5) Start switch (22) Frame side cover
(6) Motor (23) Thread take-up solenoid cover
(7) Programmer
(8) Floppy drive
(9) EMERGENCY STOP switch
(10) Pulley
(11) Spool stand
(12) Thread take-up lever
(13) Wiper solenoid cover
(14) Thread wiper switch
(15) Dip switch
(16) Integrater
(17) Solenoid valve
