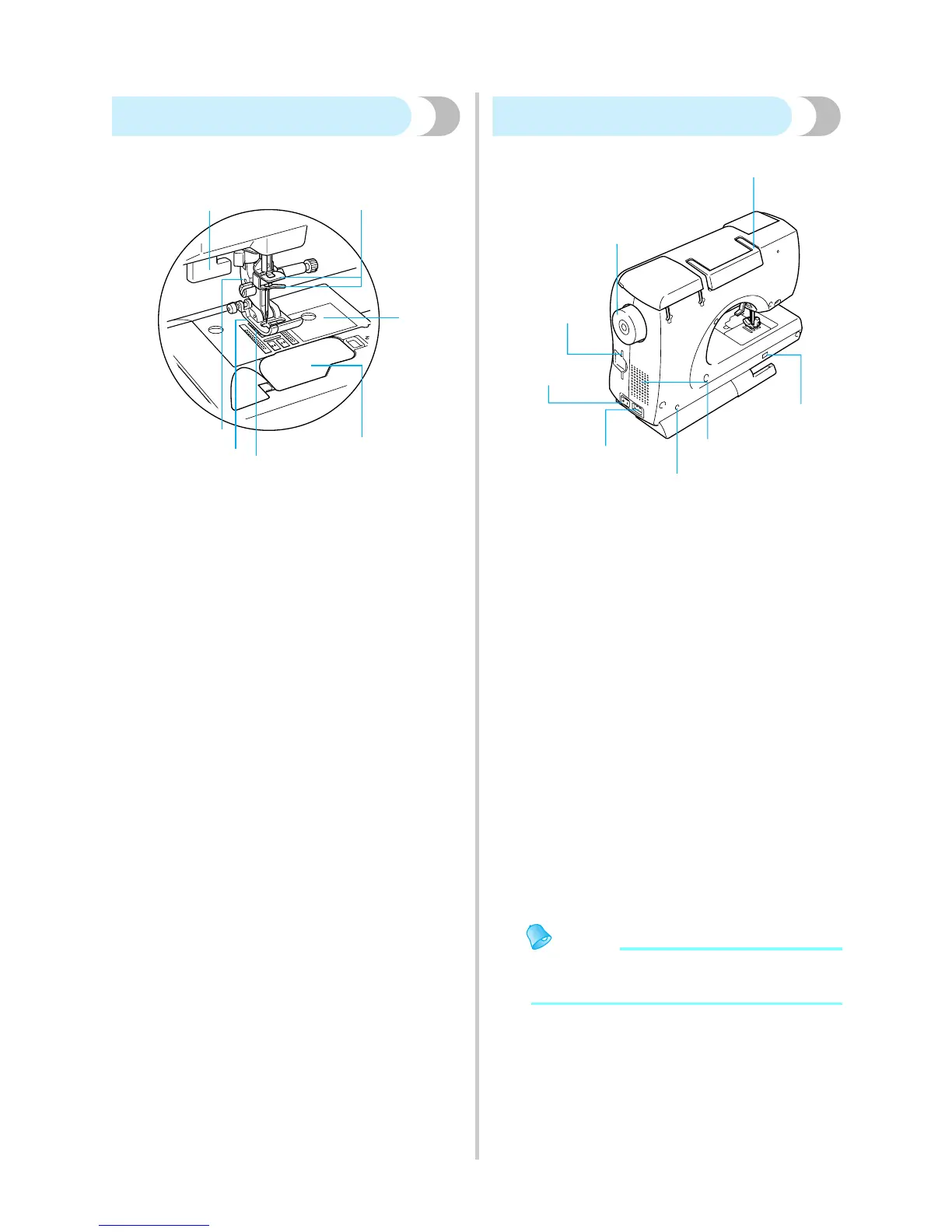

Needle and presser foot section
a Buttonhole lever
Lower the buttonhole lever when sewing buttonholes
and bar tacks.
b Needle bar thread hooks
Pass the upper thread through the needle bar thread
hooks.
c Needle plate
The needle plate is marked with guides for sewing
straight seams.
d Bobbin cover/Shuttle
Remove the bobbin cover, and then insert the bobbin
into the shuttle.
e Feed dogs
The feed dogs feed the fabric in the sewing direction.
f Presser foot
The presser foot applies pressure consistently on the
fabric as the sewing takes place. Attach the appropriate
presser foot for the selected stitching.
g Presser foot holder
The presser foot is installed onto the presser foot holder.
Right-side/rear view
a Handle
Carry the sewing machine by its handle when
transporting the machine.
b Balance wheel
Turn the balance wheel toward you to raise and lower
the needle to sew one stitch.
c Embroidery card slot
Insert the embroidery card.
d Main power switch
Use the main power switch to turn the sewing machine
on and off.
e Power supply jack
Insert the plug on the power supply cord into the power
supply jack.
f Foot controller jack
Insert the plug on the end of the foot controller cable
into the foot controller jack.
g Air vent
The air vent allows the air surrounding the motor to be
exchanged. Do not cover the air vent while the sewing
machine is being used.
h Feed dog position switch
Use the feed dog position switch to lower the feed dogs.
Memo
z Refer to Cover B, C, D or E pages while you
are learning to use your machine.
