3-55
Confidential

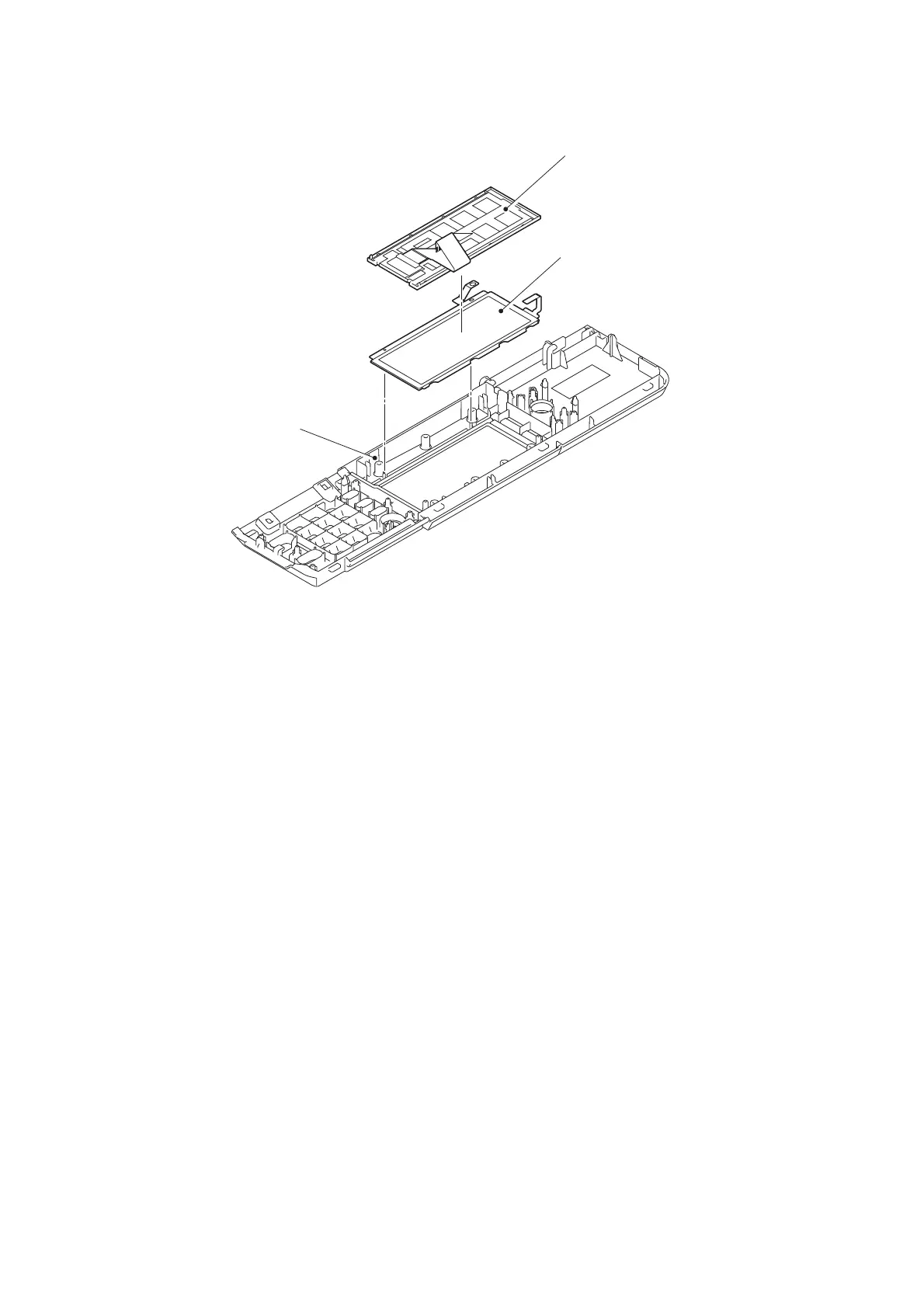

(13) Remove the LCD and touch panel ASSY from the panel cover.
Fig. 3-70
Touch panel ASSY
Panel cover
LCD
