5.1.3 DX Feed ASSY (For the models with the DX only)
(1) Remove the DX feed ASSY.

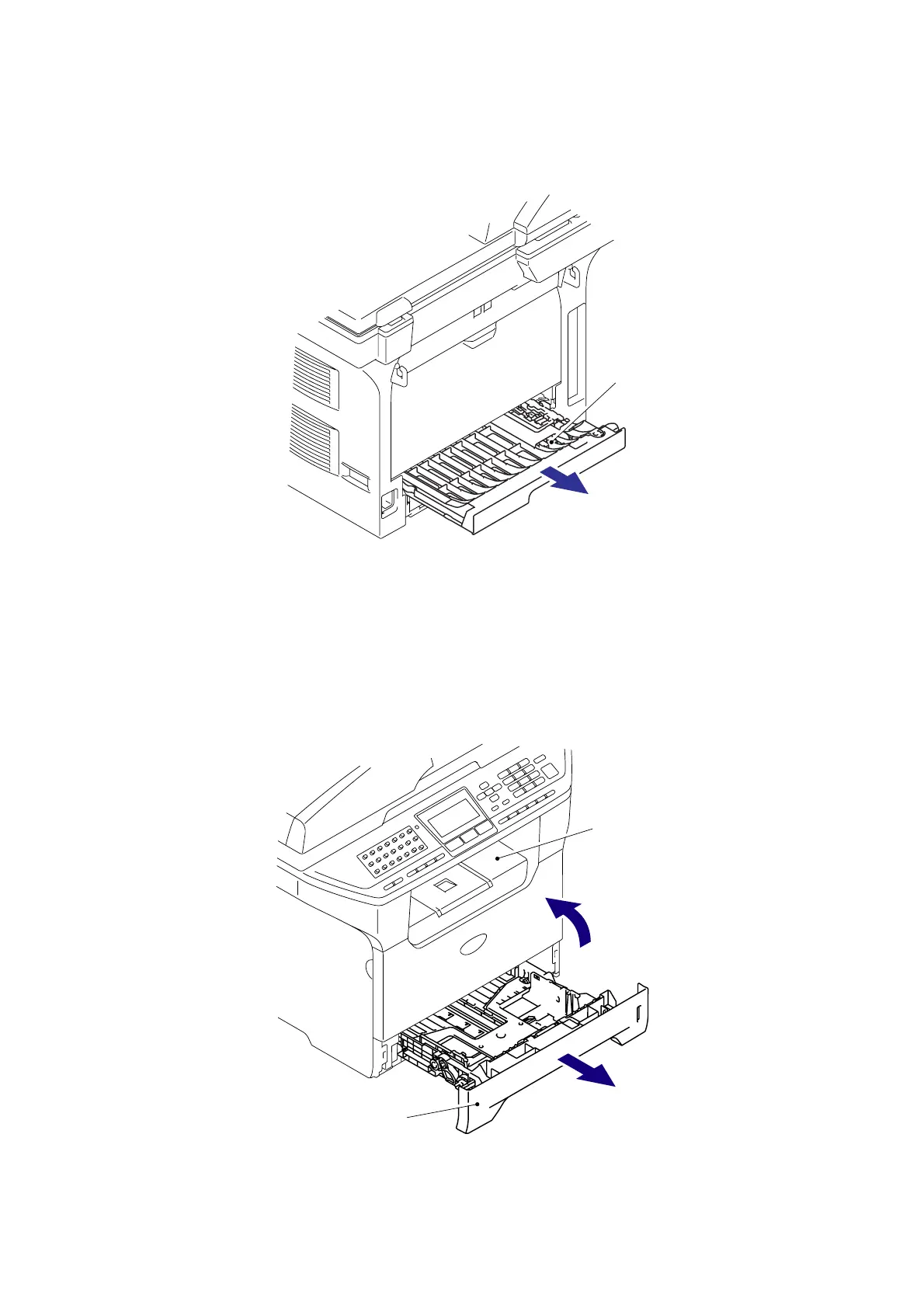

Fig. 5-3
5.1.4 Paper Tray
(1) Close the Front cover.
(2) Pull out the Paper tray.
(3) Remove the recording paper if it is remained in the Paper tray.
Fig. 5-4
Paper tra
y
Front cove
r
DX feed ASSY
1
2
<Back side>
<Front side>
