Brother MFC-8860DN - Hinge Arm R

Confidential
5-33

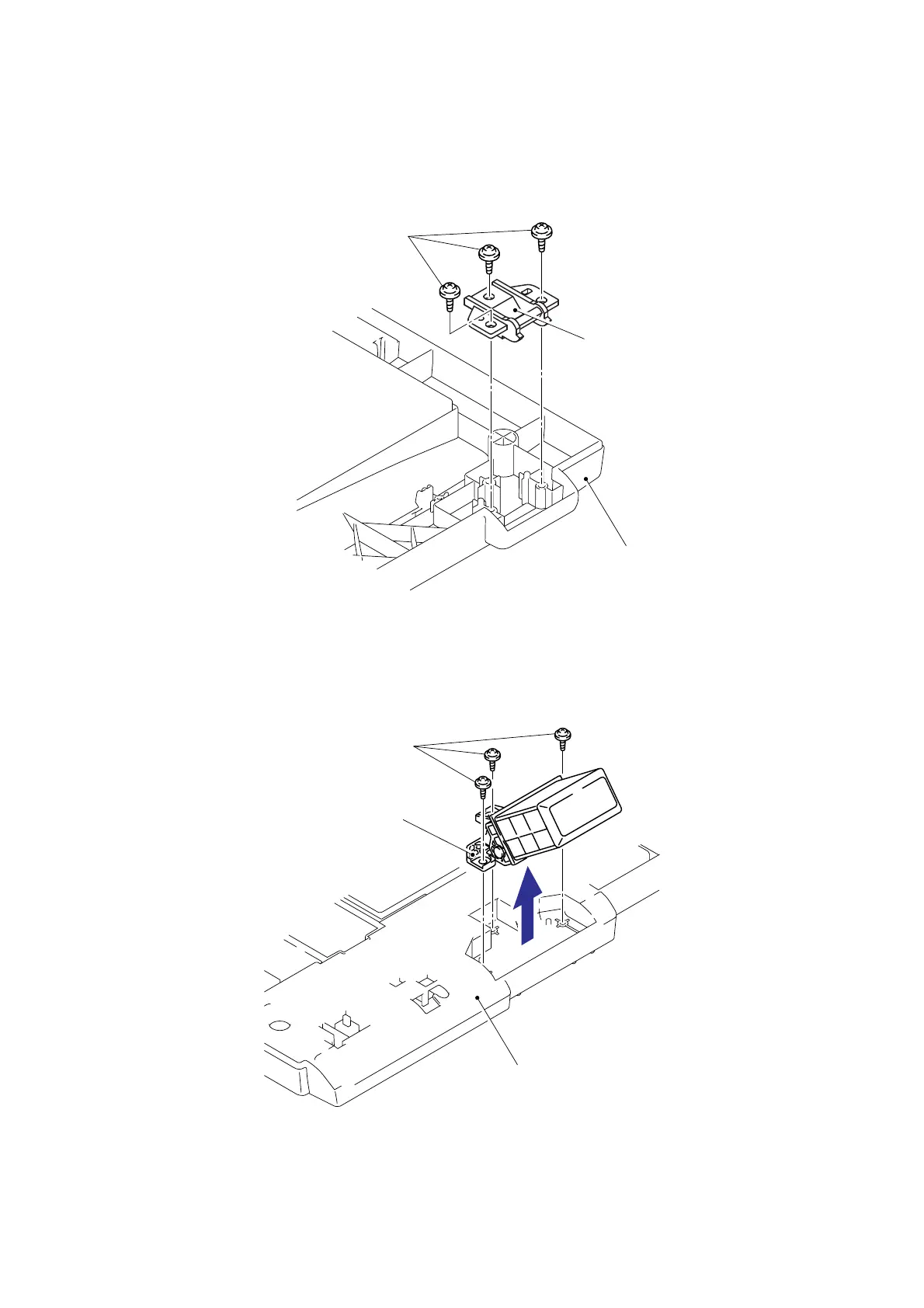

5.1.11 Hinge Arm R
(1) Remove the three cup B M3x10 Taptite screws, and then remove the Hinge arm R.
Fig. 5-22
5.1.12 Hinge ASSY L
(1) Remove the three cup B M3x10 Taptite screws, and then remove the Hinge ASSY L.
Fig. 5-23
Hinge arm R
Taptite, cup B M3x10
Document cove
r
Document cove
r
Hinge ASSY L
Taptite, cup B M3x10
<Bottom side>
<Bottom side>
