Brother MFC-8860DN - FFC Cable ASSY

Confidential
5-68
5.1.51 FFC Cable ASSY

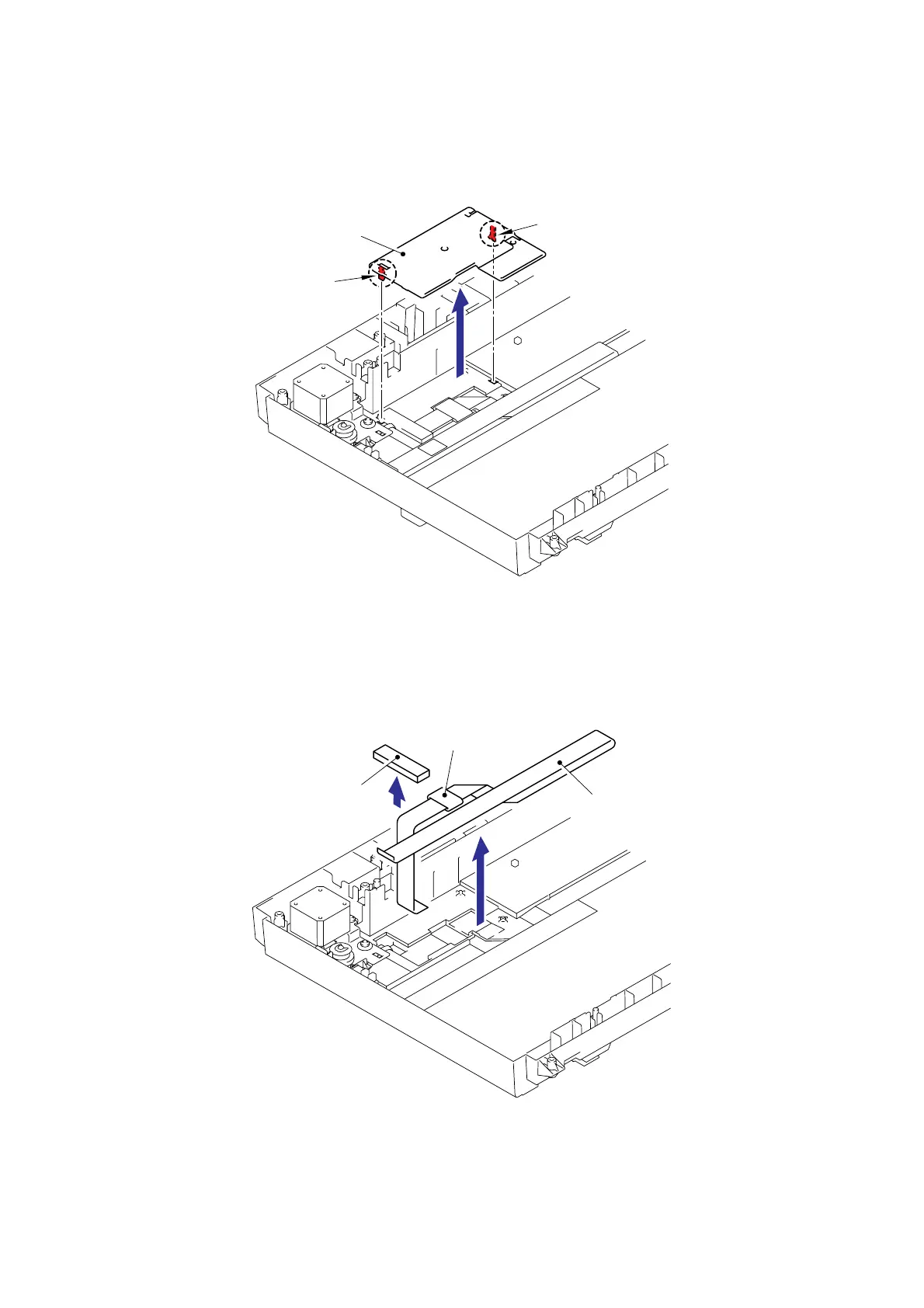

(1) Release the Hooks and remove the FFC plate ALFB.
Fig. 5-87
(2) Remove the Shield sponge ALFB and FFC cable ASSY.
(3) Remove the Flat core from the FFC cable ASSY.
Fig. 5-88
FFC plate ALFB
FFC cable ASSY
Shield sponge ALFB
3
2
Flat core
Hoo
k
Hoo
k
