Brother MFC-J5720DW Service Manual

4-6
Confidential
(6) In Port on the BrUsbSn screen, select the port number assigned to the Brother
Maintenance USB Printer.
If the port number is unknown, follow steps 1) through 4) below.
1) Click Start | Devices and Printers.
2) Right-click the Brother Maintenance USB Printer driver icon.
3) Click Properties.
4) Click the Ports tab.
(7) In the Serial No. box on the BrUsbSn screen, type the 15-digit serial number which
is printed on the serial number label attached to the machine.

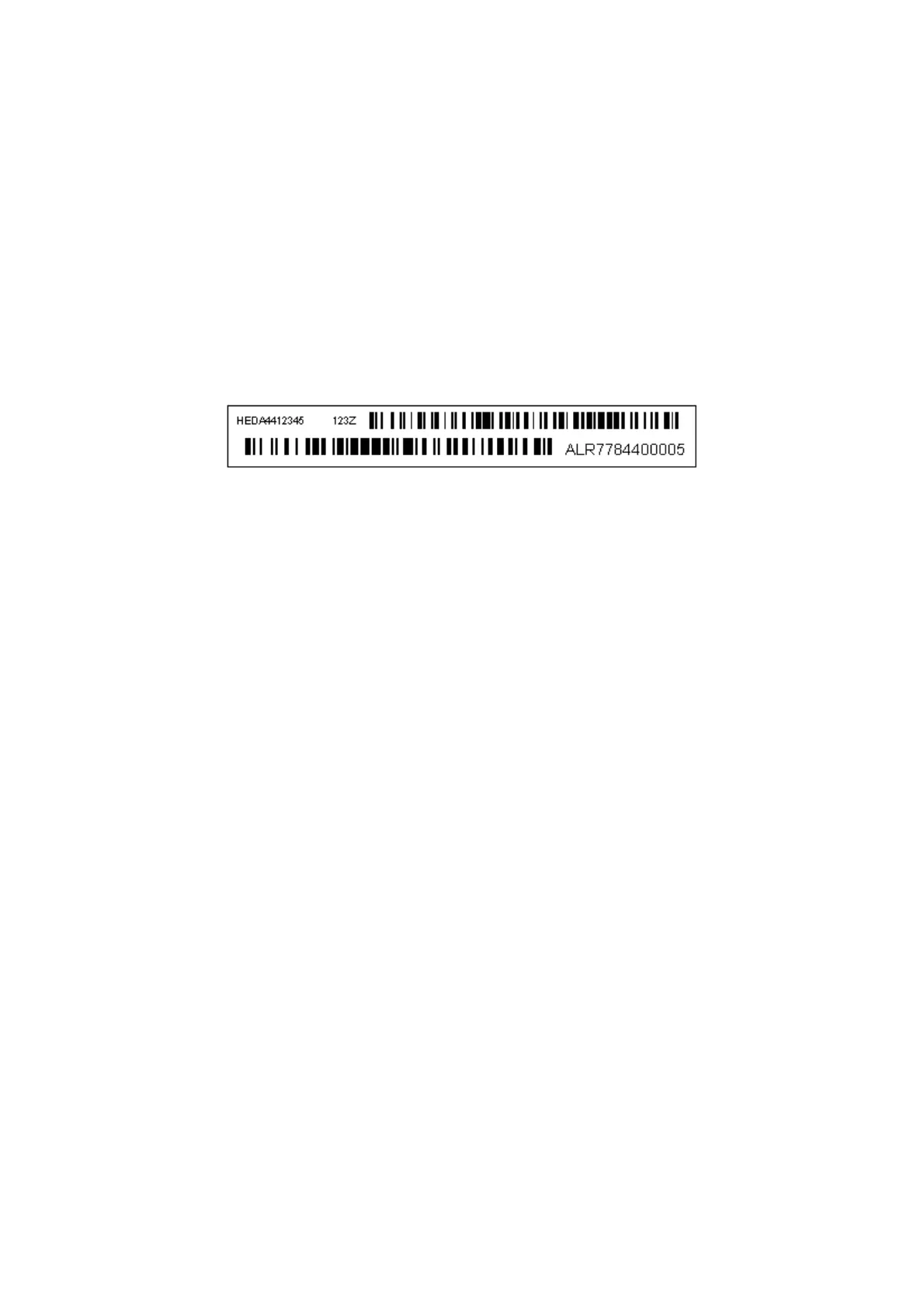

(8) In the Head Info. box, type the 13-digit head property code. The head property info
is printed on the bar code label attached to the head/carriage unit.
Tip: Opening the scanner cover when the machine is on standby and holding
down the X key for at least 5 seconds moves the head/carriage unit to the center of
its travel. This makes it possible to check the property label through the opening.
(9) Click the OK key.
(10)Wait for the confirmation screen of the serial number entered and the head
property code to appear, then click Yes.
(11)Use Maintenance mode 80 to display the serial number and head property info and
check that the entered data is correct.
1.7 Updating of head property data and backup/restoration of head
calibration data (Maintenance mode 68)
Update the head property data, referring to Chapter 5, Section 1.3.25.
The head property data can also be updated with the service setting tool
(BrUsbSn.exe). For details, refer to Section 1.6.
1.8 Restore machine information (Maintenance mode 46)
Restore the machine information and user setting information that have been backed
up in an external memory, referring to Chapter 5, Section 1.3.13.
If the machine information is successfully restored, it is not necessary to perform
operations given in Sections 1.9 to 1.14.
If the machine has failed to restore the machine information from the external memory,
replace the ink absorber box and flushing box and then reset their counts using the
procedure given in Section 1.14.
1.9 Adjust the touch panel (Maintenance mode 78)
Adjust the touch panel, referring to Chapter 5, Section 1.3.31.

Brother MFC-J5720DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	22 ipm
Print speed (ISO/IEC 24734) color	20 ipm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 2400 DPI
Maximum number of copies	99 copies
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	A3 (297 x 420) mm
Output color depth	24 bit
Image formats supported	JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	2400 x 2400 DPI
Faxing	Color faxing
Fax memory	200 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 203 DPI
Fax speed dialing (max numbers)	100
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Email protocols	APOP, IMAP4, POP, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	128-bit WEP, 64-bit WEP, APOP, SMTP-AUTH, SSID, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Ethernet LAN data rates	10, 100 Mbit/s
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, Picasa
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Paper input type	Paper tray
Total input capacity	250 sheets
Multi-Purpose tray input capacity	80 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	C5, Com-10, DL, Monarch
Photo paper sizes	9x13, 10x15, 13x18 cm
Paper tray media types	Coated paper, Envelopes, Glossy paper, Matte paper, Photo paper, Plain paper
Paper tray media weight	64 - 120 g/m²
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, L, Ledger (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
JIS B-series sizes (B0...B9)	B4, B5
Borderless printing media sizes	10x15, 2L, A3, A4, A6, Index card, L, Ledger, Letter
Maximum ISO A-series paper size	A3
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	3.7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, MMC, MMC Mobile, MMC+, MS Duo, MS Micro (M2), MS PRO Duo, SD, SDHC, SDXC
Sound pressure level (printing)	50 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (ready)	5.5 W
Power consumption (average operating)	32 W
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008 R2 x64, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Bundled software	Brother ControlCentre\\r NewSoft Presto! PageManager\\r Brother ControlCentre\\r Nuance Paperport 12 SE
Sustainability certificates	Nordic Swan Ecolabel, ENERGY STAR
Package depth	425 mm
Package width	589 mm
Package height	429 mm
Package weight	17800 g
Storage temperature (T-T)	20 - 33 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	345 mm
Width	490 mm
Height	308 mm
