Brother MFC-J5720DW Service Manual

5-24
Confidential
1.3.11 Sensor Operational Check (Maintenance mode 32)
< Function >
This function checks whether sensors work normally.
< Operating Procedure >
(1) Press the 3 and 2 keys in this order in the initial stage of the maintenance mode.

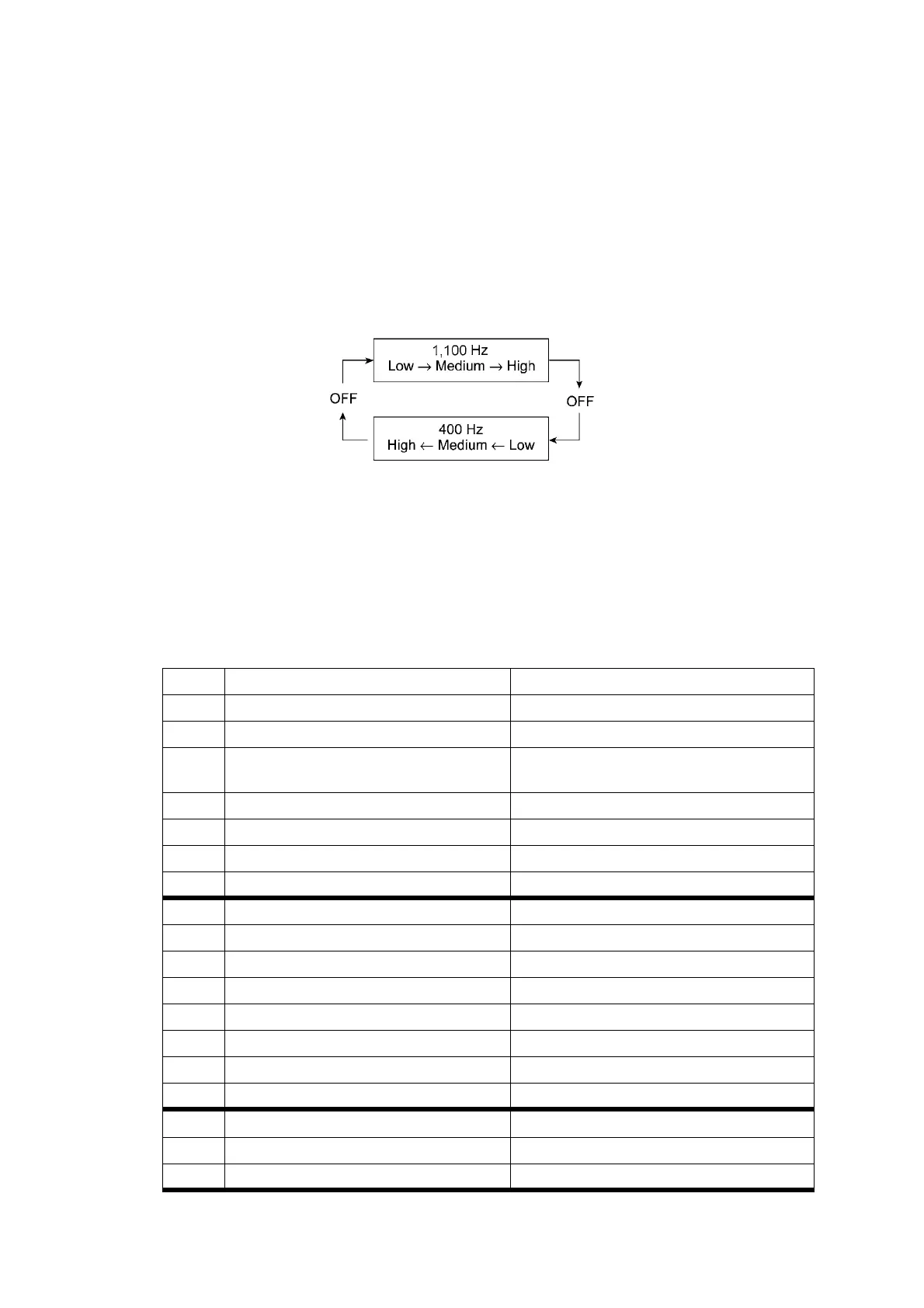

The machine sounds 1,100 Hz and 400 Hz tones cyclically through the following
volumes for testing the speaker:
Note: To stop beeping, press the SET key.
If the sensing statuses are as defined below, the LCD shows the 1st sensor group
"DFDRCVRSCCP1**AC."
(2) Press the Mono Start key to switch to the next sensor group.
If asterisks (**) appear on the LCD, it means that the corresponding sensor does
not exist on the model.
Given below is the relationship between the LCD indication, sensor name and sensor status.
LCD Sensors Sensing status (display/no display)
DF Document detection sensor No document/Document present
DR
First side document scanning position sensor No document/Document present
CV Document scanner sensor
Document scanner closed/Document
scanner opened
RS Registration sensor
No recording paper/Recording paper present
CC Ink cartridge cover sensor Cover closed/Cover opened
P1 Purge cam sensor Origin/Out of origin
AC
*1
ADF cover sensor Cover closed/Cover opened
IK Black ink cartridge detection sensor Cartridge present/No cartridge
IY Yellow ink cartridge detection sensor Cartridge present/No cartridge
IC Cyan ink cartridge detection sensor Cartridge present/No cartridge
IM Magenta ink cartridge detection sensor Cartridge present/No cartridge
EK Black ink remaining sensor Ink present/No ink
EY Yellow ink remaining sensor Ink present/No ink
EC Cyan ink remaining sensor Ink present/No ink
EM Magenta ink remaining sensor Ink present/No ink
LT
*2
Paper tray 2 detection sensor Paper tray 2 present/No paper tray 2
MP
*3
MP paper detection sensor No recording paper/Recording paper present
PP Switchback sensor No recording paper/Recording paper present

Brother MFC-J5720DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	22 ipm
Print speed (ISO/IEC 24734) color	20 ipm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 2400 DPI
Maximum number of copies	99 copies
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	A3 (297 x 420) mm
Output color depth	24 bit
Image formats supported	JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	2400 x 2400 DPI
Faxing	Color faxing
Fax memory	200 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 203 DPI
Fax speed dialing (max numbers)	100
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Email protocols	APOP, IMAP4, POP, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	128-bit WEP, 64-bit WEP, APOP, SMTP-AUTH, SSID, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Ethernet LAN data rates	10, 100 Mbit/s
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, Picasa
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Paper input type	Paper tray
Total input capacity	250 sheets
Multi-Purpose tray input capacity	80 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	C5, Com-10, DL, Monarch
Photo paper sizes	9x13, 10x15, 13x18 cm
Paper tray media types	Coated paper, Envelopes, Glossy paper, Matte paper, Photo paper, Plain paper
Paper tray media weight	64 - 120 g/m²
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, L, Ledger (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
JIS B-series sizes (B0...B9)	B4, B5
Borderless printing media sizes	10x15, 2L, A3, A4, A6, Index card, L, Ledger, Letter
Maximum ISO A-series paper size	A3
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	3.7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, MMC, MMC Mobile, MMC+, MS Duo, MS Micro (M2), MS PRO Duo, SD, SDHC, SDXC
Sound pressure level (printing)	50 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (ready)	5.5 W
Power consumption (average operating)	32 W
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008 R2 x64, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Bundled software	Brother ControlCentre\\r NewSoft Presto! PageManager\\r Brother ControlCentre\\r Nuance Paperport 12 SE
Sustainability certificates	Nordic Swan Ecolabel, ENERGY STAR
Package depth	425 mm
Package width	589 mm
Package height	429 mm
Package weight	17800 g
Storage temperature (T-T)	20 - 33 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	345 mm
Width	490 mm
Height	308 mm
