Brother MFC-J5730DW Service Manual

5-52
Confidential
1.3.29 Adjustment of Touch Panel (Maintenance mode 78)
< Function >
This function adjusts the detection area on the touch panel.
Note: The adjustment procedure requires a stylus with a thin tip.
A commercially available stylus designed for electronic dictionaries or personal
digital assistance (PDA) can be used. If you do not have it on hand, order the
"TOUCH PEN" from the Brother’s parts list.
< Operating Procedure >
(1) Press the 7 and 8 keys in this order in the initial stage of the maintenance mode.

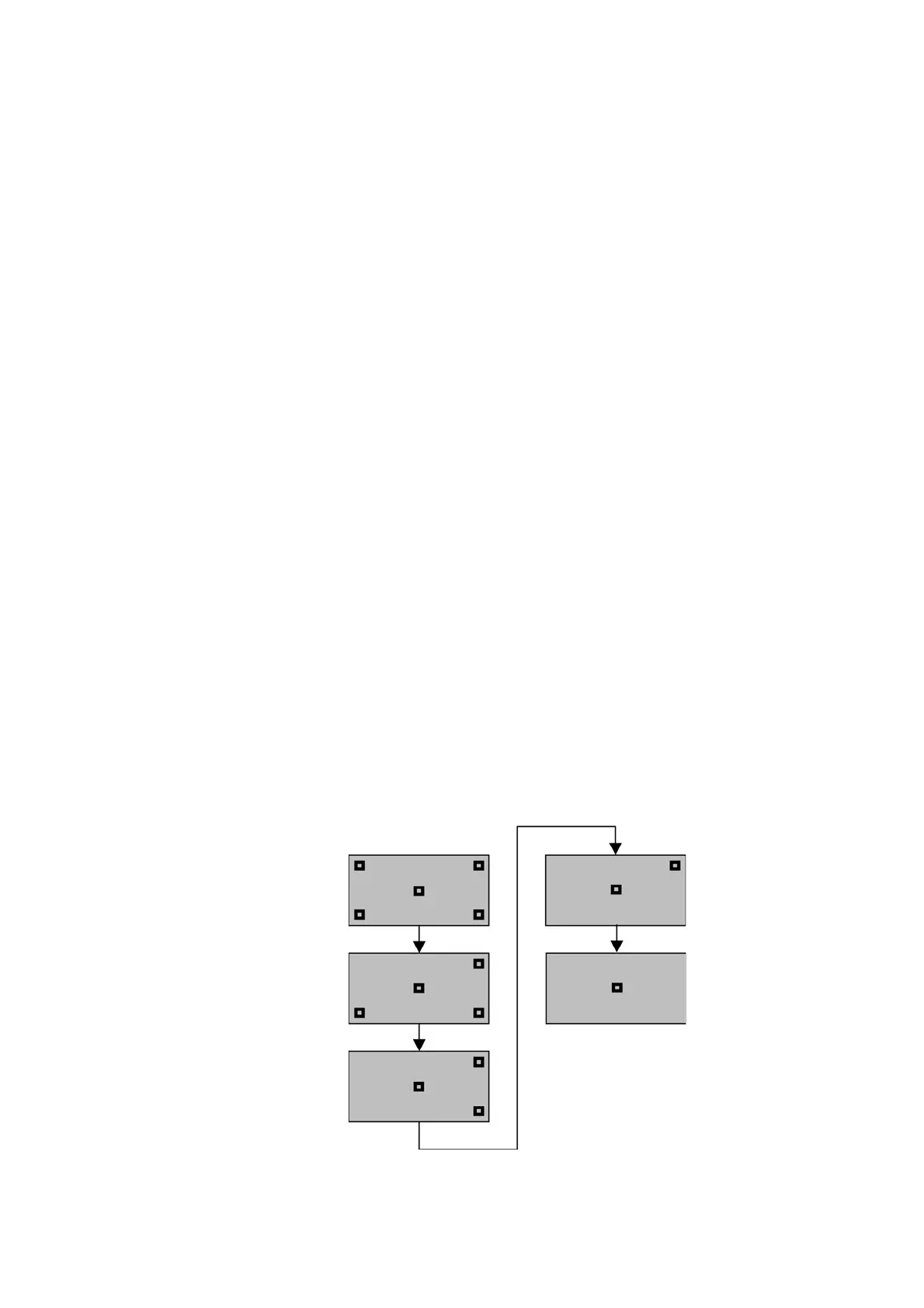

The adjustment screens shown below appear on the LCD.
(2) Touch the symbols on the touch panel with a stylus in the order of top-left, bottom-
left, bottom-right, top-right, and the center. After a symbol touched disappears,
touch the next one.
After the fifth symbol (center) is pressed, the "OK" appears if the adjustment is
normally completed. After approx. three seconds, the machine returns to the initial
stage of the maintenance mode.
Notes: -
Do not use tools other than a pen designed for touch panels. Especially, never use
a pointed one, e.g., a screwdriver. Using such a tool damages the touch panel.
- Do not touch the touch panel with fingers. The contact area of a finger is too
large to adjust the touch panel precisely.
- If no keys are pressed for one minute in the above procedure or you press the
X key, the machine stops the procedure and returns to the initial stage of the
maintenance mode.
-
If the touch panel is improperly pressed or a wrong point is pressed, the "ERROR"
appears on the LCD. After approx. three seconds, the screen returns to the state in
step (2). Start pressing the five symbols again from the first one (top-left).
- If the "ERROR" appears on the LCD, check the panel flat cable for a contact
failure, breakage, or short-circuit. If the "ERROR" continues to be displayed
without any of such problems, replace the touch panel.

Brother MFC-J5730DW Specifications

General

Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	1200 x 4800 DPI
Print speed (ISO/IEC 24734) mono	22 ipm
Print speed (ISO/IEC 24734) color	20 ipm
Time to first page (black, normal)	6 s
Duplex print speed (ISO/IEC 24734) mono	12 ipm
Duplex print speed (ISO/IEC 24734) color	11 ipm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	12 cpm
Copy speed (color, normal quality, A4)	9 cpm
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Scanner type	Flatbed & ADF scanner
Input color depth	48 bit
Maximum scan area	210 x 297 mm
Output color depth	24 bit
Scan speed (color)	14 ppm
Maximum scan resolution	19200 x 19200 DPI
Duplex scan speed (color)	10 ppm
Optical scanning resolution	1200 x 1200 DPI
Faxing	Mono faxing
Fax memory	200 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	100
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	3.66 \
Market positioning	Business
Internal memory	256 MB
Card reader integrated	No
Sound pressure level (printing)	50 dB
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Package depth	469 mm
Package width	639 mm
Package height	511 mm
Package weight	24300 g
Power consumption (off)	0.04 W
Power consumption (sleep)	1.6 W
Power consumption (standby)	6.5 W
Power consumption (average operating)	30 W
Sustainability certificates	Blue Angel, ENERGY STAR
Email protocols	APOP, POP3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, APOP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, PEAP, SMTP-AUTH, SNMP, SSL/TLS, WPA-PSK, WPA2-PSK
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Mopria Print Service
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Maximum input capacity	500 sheets
Total number of input trays	2
Auto document feeder (ADF) input capacity	50 sheets
Digital sender	-
Maximum duty cycle	- pages per month
Paper tray media types	Plain paper, Thin paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3
Bundled software	Brother Control Center 4 Nuance PaperPort 14
Harmonized System (HS) code	84433100

Weight and Dimensions

Depth	398 mm
Width	530 mm
Height	374 mm
