76
Replacing the toner cartridges
A
a

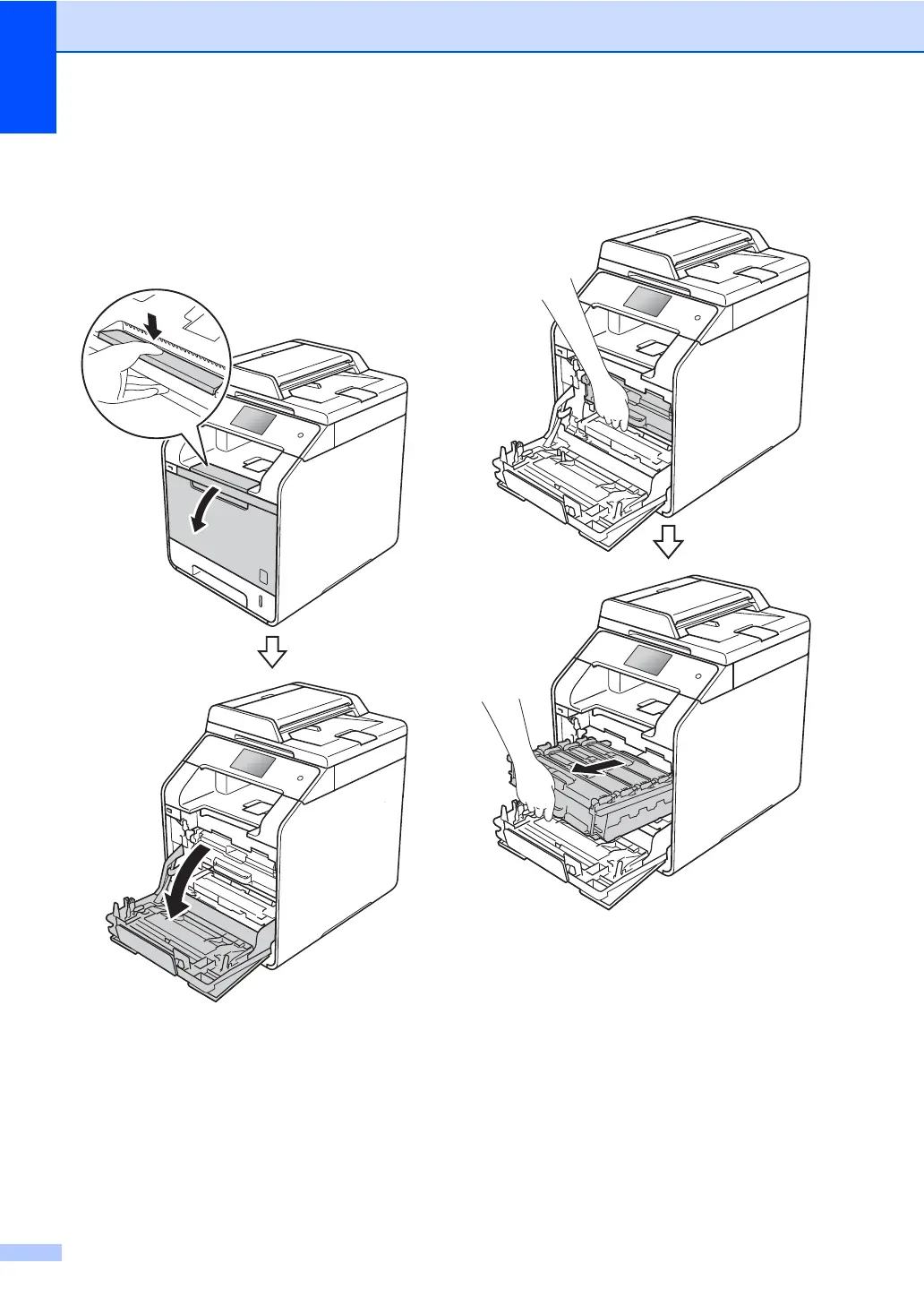

Make sure the machine is turned on
.
b
Press the fro
nt cover relea
se button an
d
pull open the fron
t cover.
c
Hold the blue handle of the drum un
it.
Pull the drum unit out until it stops.
85
87
