Home > Troubleshooting > Document Jams > Document is Jammed inside the ADF Unit

Document is Jammed inside the ADF Unit

1. Remove any paper that is not jammed from the ADF.

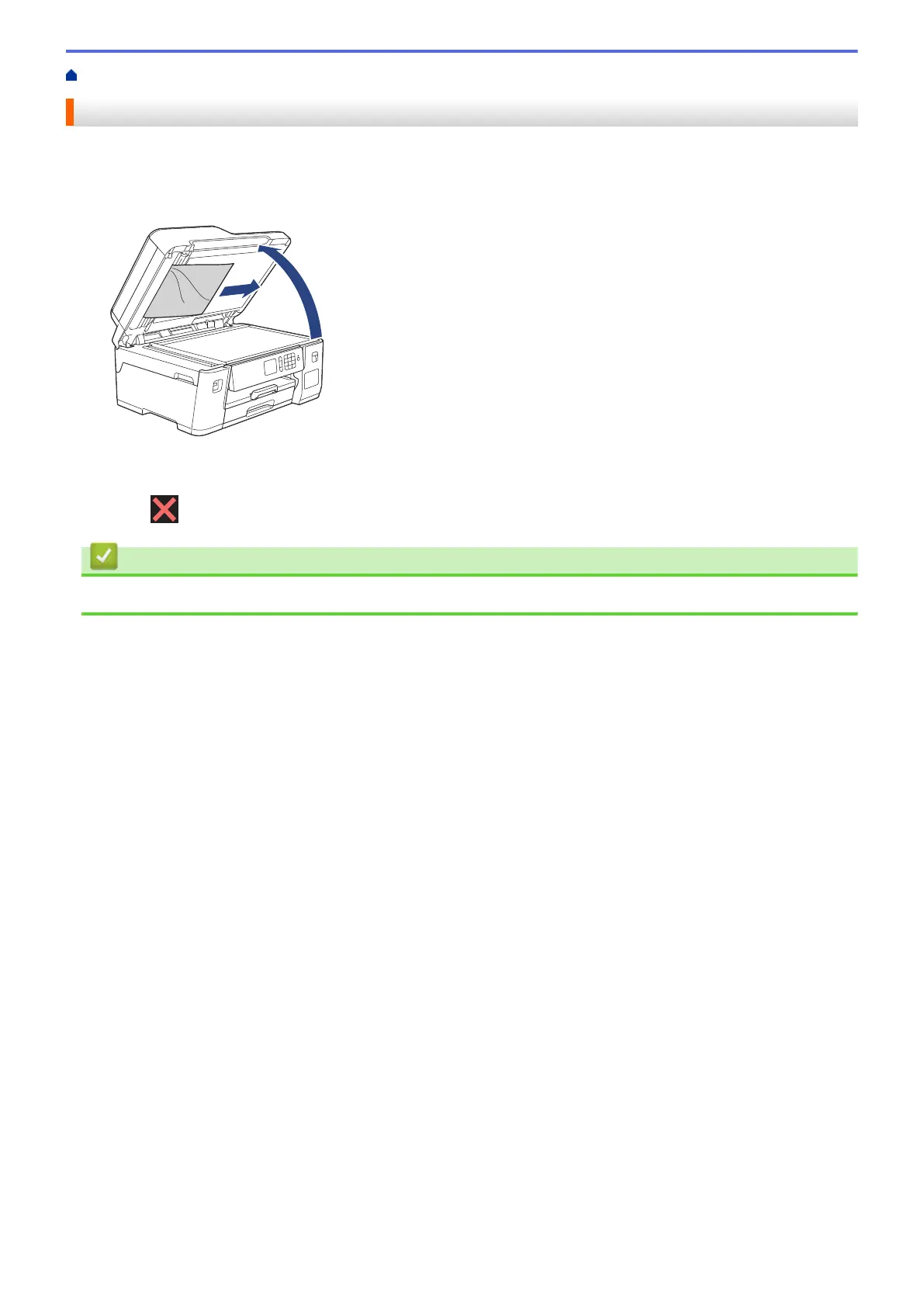

2. Lift the document cover.

3. Pull the jammed document out to the right.

4. Close the document cover.

5. Press .

Related Information

• Document Jams

475
