T-8421C, 8422C, 8452C, 8722C, 8752C
3. INSTALLATION
5

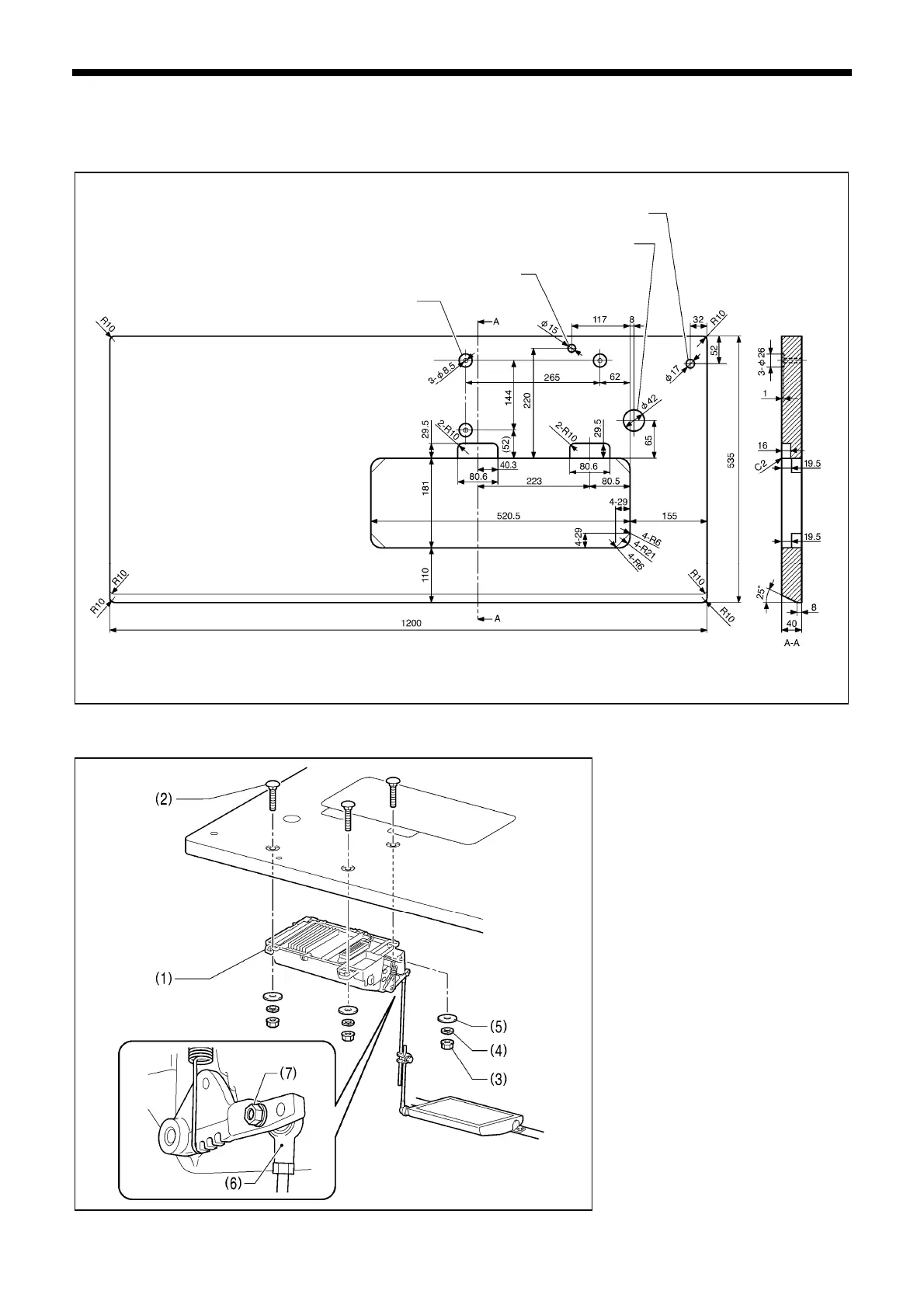

3-1. Table processing diagram
The top of the table should be 40 mm in thickness and should be strong enough to hold the weight and with-stand the
vibration of the sewing machine.
Drill holes as indicated in the illustration below.
3-2. Installation
1. Control box
(1) Control box
(2) Bolts [3 pcs]
(3) Nuts [3 pcs]
(4) Spring washers [3 pcs]
(5) Washers [3 pcs]
2. Connecting rod
(6) Connecting rod
(7) Nut
4127M
2170B
Cotton stand hole
Cord hole
Head rest hole
Control box mounting hole
To Next Page
