T-8421C, 8422C, 8452C, 8722C, 8752C
3. INSTALLATION
13

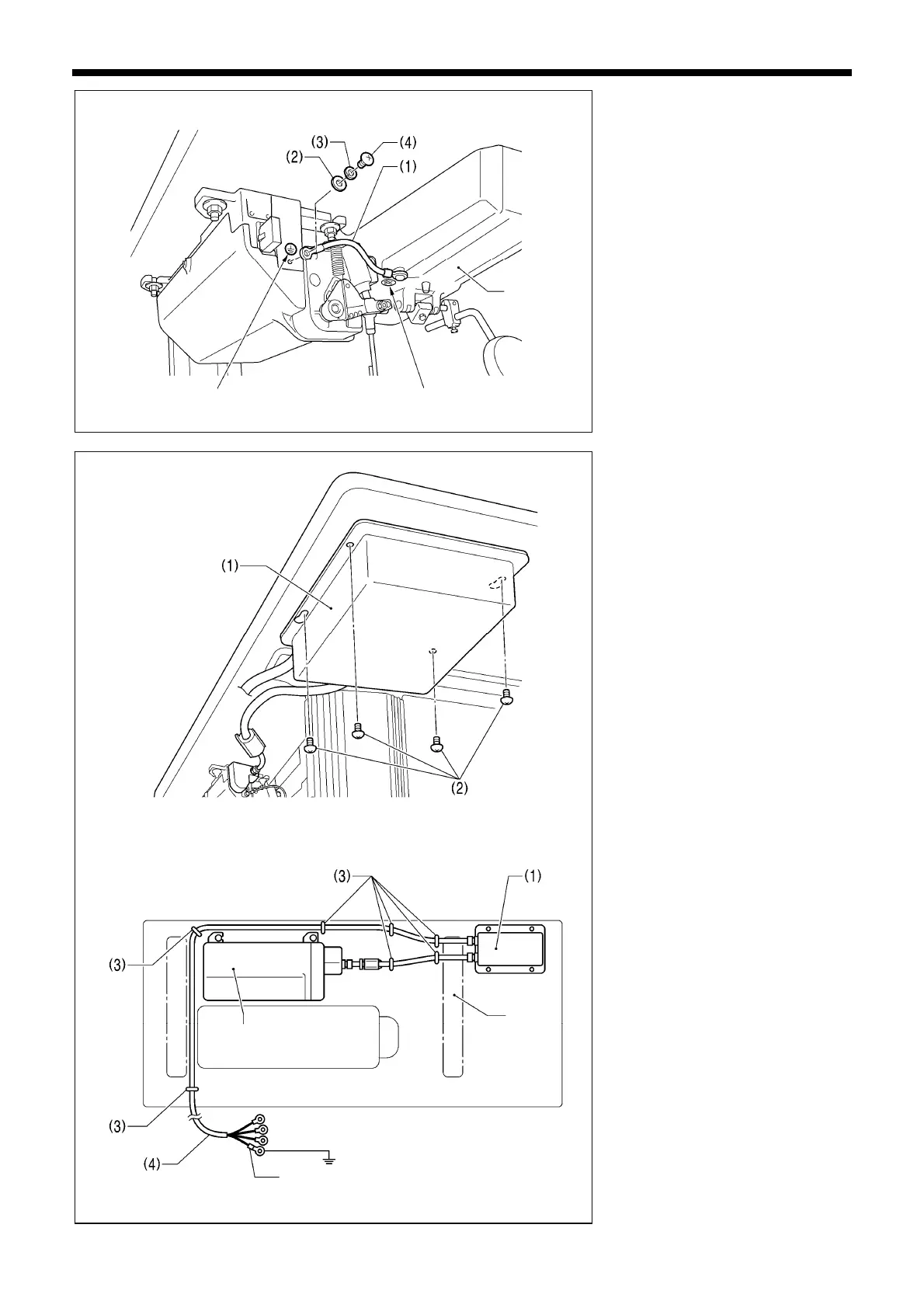

3. Ground wire
(1) Ground wire
(2) Washer
(3) Spring washer
(4) Screw
4. Other cords
Connect cords that match the voltage
specifications.
< Europe specifications >
(1) Filter box
(2) Screws [4 pcs.]
(3) Staples [7 pcs.]
(4) Power cord
1. Attach an appropriate plug to the
power cord (4). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
Take care when tapping in the
staples (3) to make sure that they do
not pierce the cords.
Do not use extension cords,
otherwise machine operation
problems may result.
Oil pan
4143M
Green and yellow wire (ground wire)
<Seen from underneath table>
Control box
Leg
Ground symbol Ground symbol
2176B
4144M
