STEP 4.2
STEP 4.1
STEP 4.3

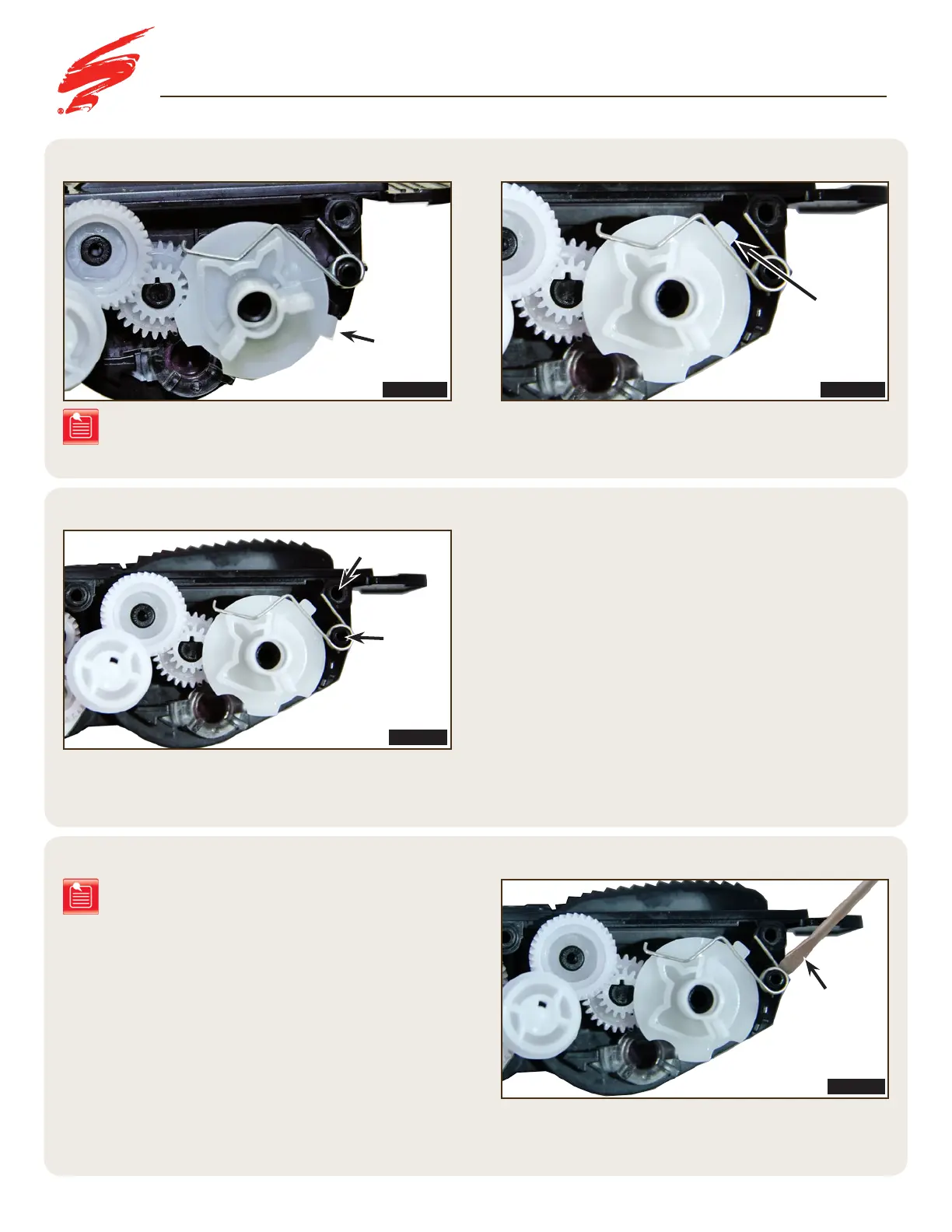

The spring should rest on the flag gear. Using a small slotted
screwdriver, press spring down onto the post (Figure 4.3).
Install the flag gear spring as shown in Figure 4.2.
FIGURE 4.2
FIGURE 4.1BFIGURE 4.1A
FIGURE 4.3
RESETTING THE FLAG GEAR
Note: Reference Figures 4.1A and 4.1B to ensure the
flag gear tab is in the reset location. Print error
failures could result if the gear is not set properly.
Note: The short arm of the spring needs to be on the left
side of the cartridge post as shown in Figure 4.3
Flag Gear
Tab Spent
Position
Flag Gear
Tab Reset
Position
Cartridge Post
Small Slotted
Screwdriver
Flag Gear
Spring Arm
Behind
Cartridge
Post
