CONTROLLING THE VIBRATOR WITH A REMOTE POTENTIOMETER
Vibrator speed can be controlled by a remote potentiometer.
The potentiometer must be linear, 10 Kohm, 1 rpm or 10 rpm, and is connected to the 0-10 V terminals.
Refer to the “CONNECTION DIAGRAM” on pages 9,10 and 11.

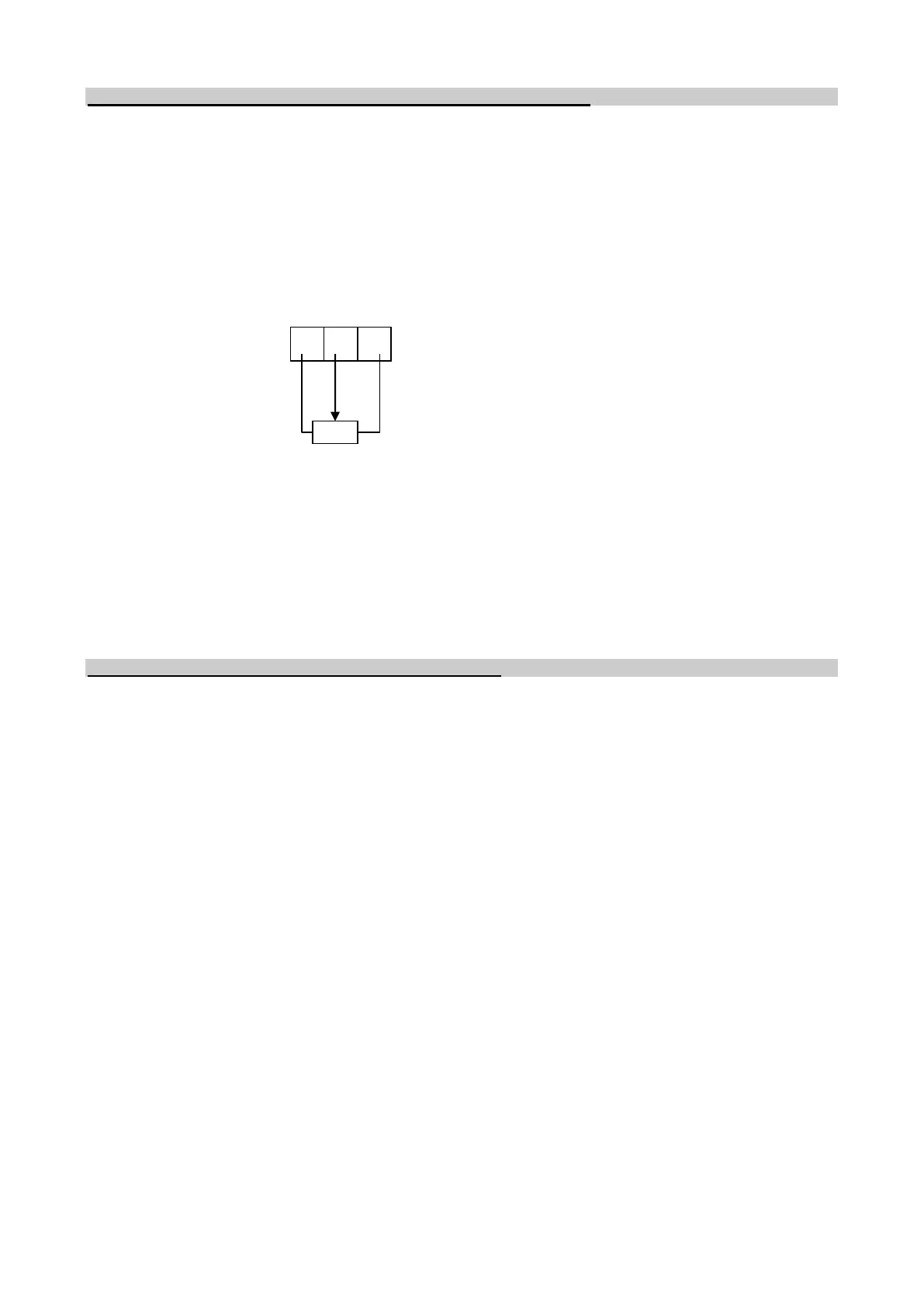

The connection diagram is shown below:
Fig. 10
For correct regulation of the vibrator using a remote potentiometer, the vibrator must be calibrated (with
probe SRV02 present). In this way, the curve regulation of the vibrator is correct.
After connecting, set the 0-10 V function (MENU’ 8) to 1.
ON/OFF VIBRATOR WITH EXTERNAL COMMAND 0-24 V
The vibrator can be activated and disarmed using an external command 0-24 V. To obtain this function the +
24 V must be connected to clamp IN1 if sensor PX1 is used or to clamp IN2 if sensor PX2 is used. From
Menu 6 or Menu 7, set the sensor and apply the LIGHT or DARK function to best suit your operating needs.
(See Menu 6 or Menu 7).
