PG.
8

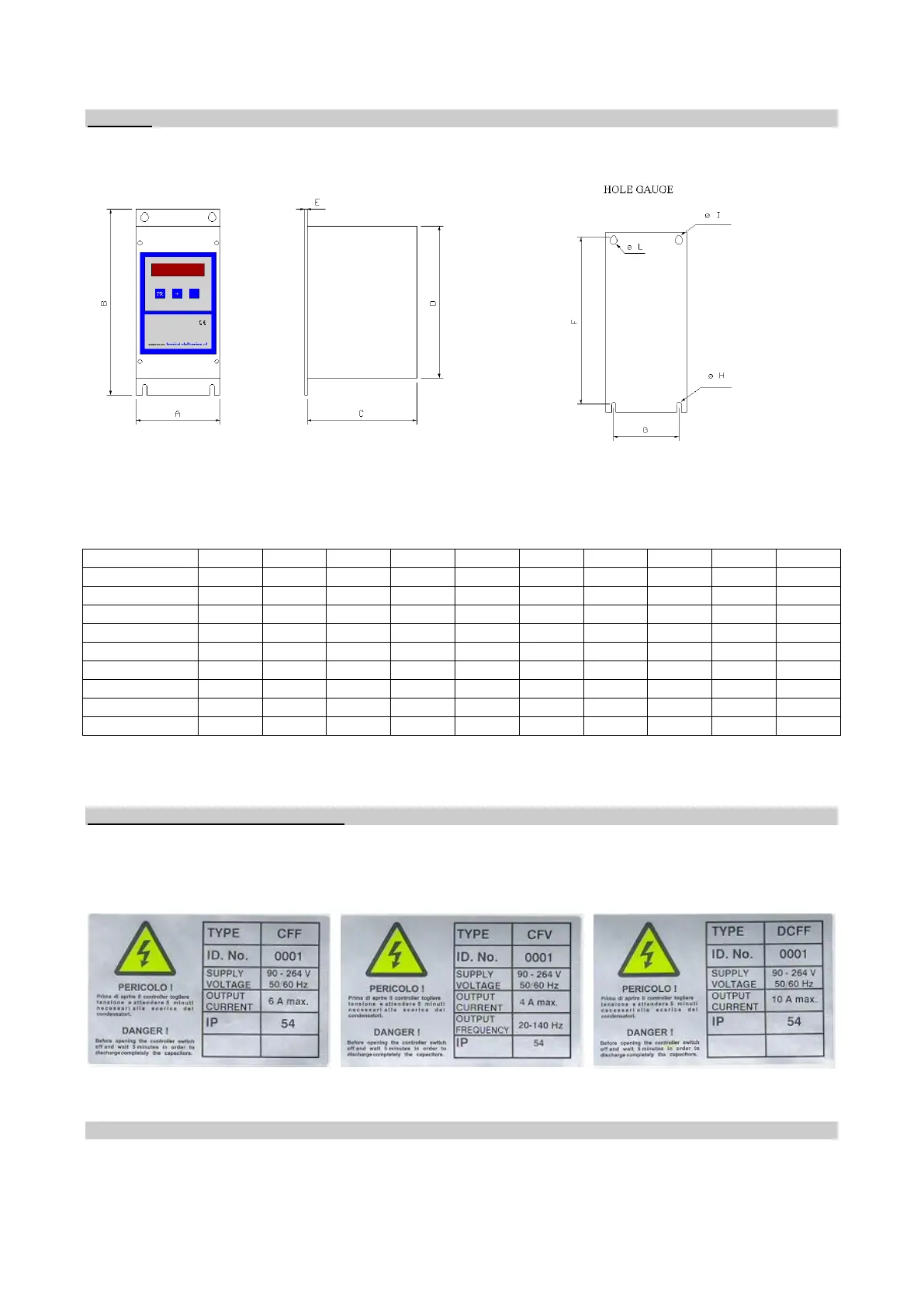

LAYOUT
Fig.
01
Model
A
B
C
D
E
F
G
Hø
Iø
Lø
CFF6A
100
220
137
180
3
203.7
80
5.5
5.5
9
CFF15A
100
220
177
180
15
203.7
80
5.5
5.5
9
DCFF10A
100
220
177
180
3
203.7
80
5.5
5.5
9
CFV4A
100
220
177
180
3
203.7
80
5.5
5.5
9
CFV6A
100
220
177
180
15
203.7
80
5.5
5.5
9
CFV12A
200
220
177
180
25
203.7
180
5.5
5.5
9
CFF10 400V
200
220
177
180
25
203,7
180
5,5
5,5
9
Table 03
MACHINE IDENTIFICATION PLA
TE
The plate on each box identif
ies the controller in use.
The plate shows the name of
the controller.
N.B. Provide such data when
contacting
Brovind
Customer Servi
ce.
Fig. 02
7
9
