SPECIAL APPLICATIONS: DISCHARGE UNIT. Function 5 Menu 15
(DCFF ONLY)
The discharge unit function can only be used with a DCFF double board.
This function controls a cylinder with a bistable solenoid valve. For additional information on its use, contact
the Supplier.

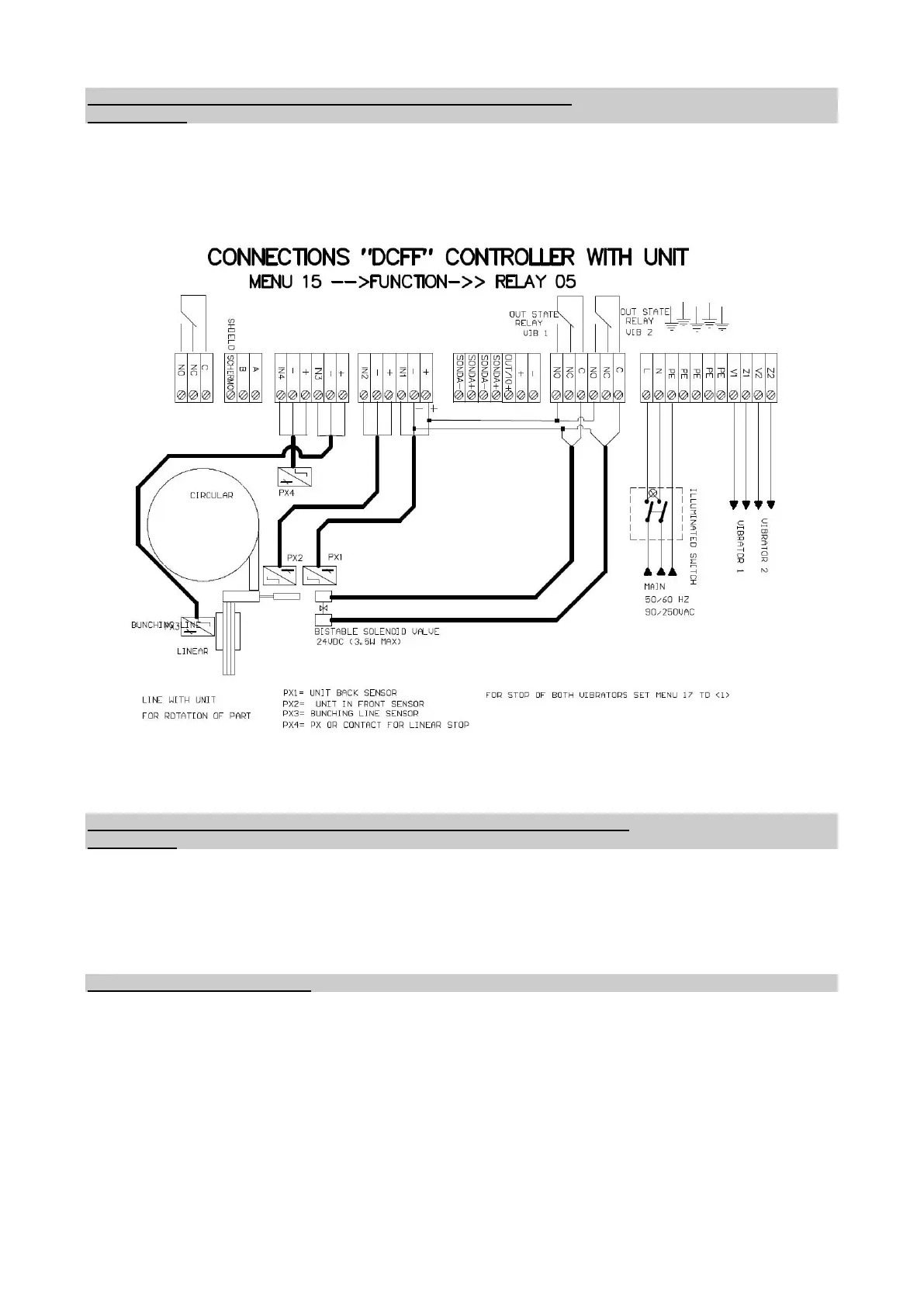

Fig. 12
SPECIAL APPLICATIONS: ALARM-RELATED RELAY. Function 6 Menu 15
(CFV ONLY)
This function changes the behavior of the status relay. The relay is always active, even under STOP of the
vibrator. The relay switches off only in the presence of alarms such as overtemperature, short-circuit or
overcurrent.
PIECES-COUNTER FUNCTION
The pieces-counter function is used when the parts selected by the vibrator need to be counted.
The resources necessary to use the function are:
PX1: Start count signal input. (use a voltage-free signal)
PX2: Pieces-count sensor signal input (eg. Photoelectric cell); to operate correctly, the signal must last at
least 10 mS.
The Menus for reading and setting the pieces-counters are menus 26 and 27 on pg. 24.
Before setting the function, make sure you are in function rl = 0 in menu 15. (see pg. 23).
