48
OUTBOARD INSTALLATION
OUTBOARD MOUNTING
75–300 HP, ALL MODELS
40–60 HP, POWER TRIM MODELS
25–30 HP, POWER TRIM MODELS

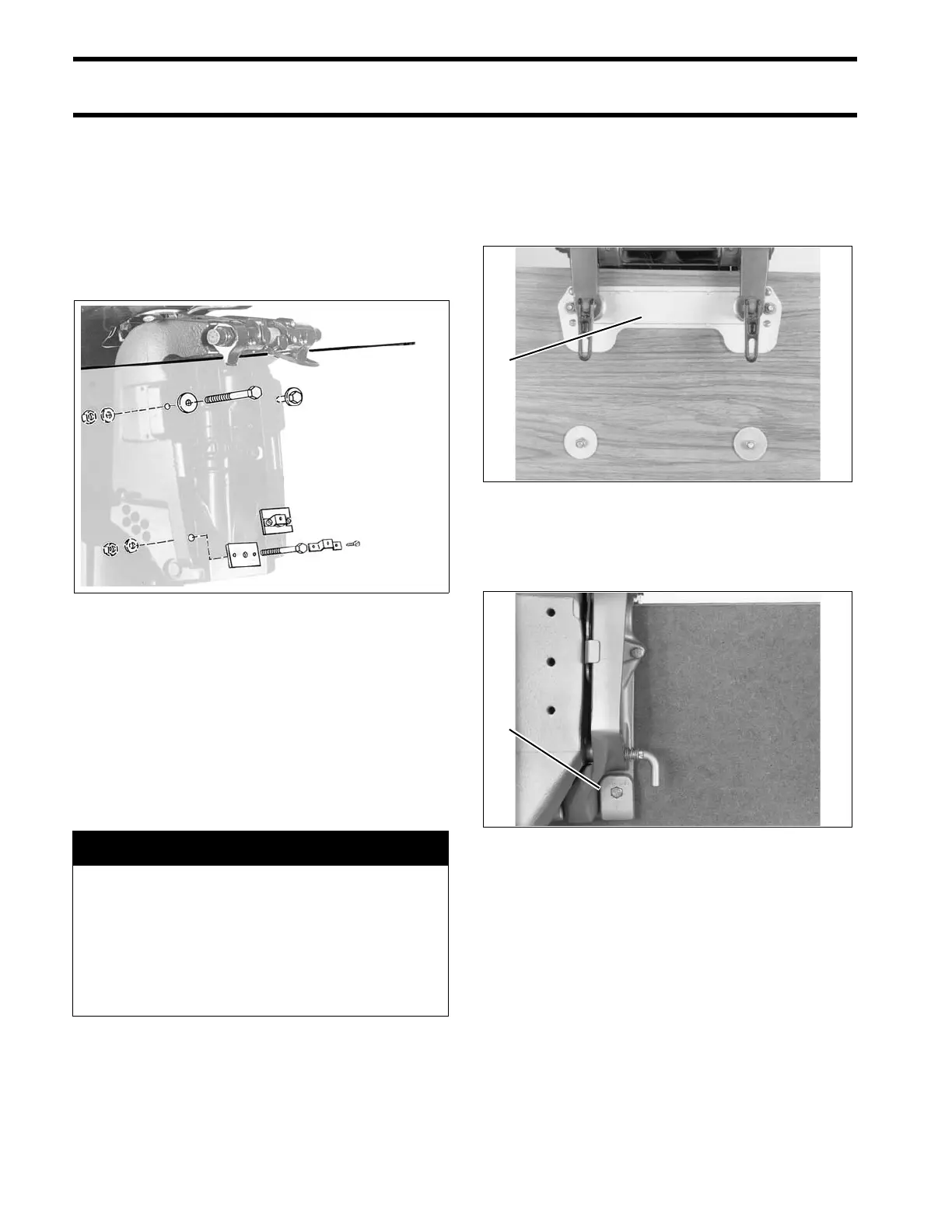

Assemble tran som mounting pla tes on mounting
bolts.
Install the mou nting bolts through the transom
from the inside of the boat.
Position the squ are aluminu m transom mounting
plates (when applicable) so the retainer holes are
horizontal.
Position hex head of bolt with flats toward holes in
the mounting plates. Install retainer over hex head
of the bolt and secure it with screws provided.
Install all washers and nuts. Tighten nuts and bolts
to a torque of 40 ft. lbs. (54 N·m).
40 HP, MANUAL TILT MODELS
Manual tilt models require Transom Mounting Kit,
P/N 394219. The kit includes a transom mounting
plate and hardware for fastening outboard to tran-
som.
The kit also includes clamp p ads, P/N 315774,
which must be used to secure mounting bolt s in
slots at the bottom of the outboard stern brackets.
DR5536
A WARNING
If either side of the transom deforms or
cracks when the bolts are tightened to
their recommended torque, the transom
construction may not be adequate or may
be deteriorated. Structural failure of the
transom could result in loss of boat control
and injury to the occupants.
1. Transom mounting plate 18961
1. Clamp pad COB2505
