OUTBOARD RIGGING
COMMON PRACTICES – ALL MODELS
3
OUTBOARD RIGGING
COMMON PRACTICES –
ALL MODELS

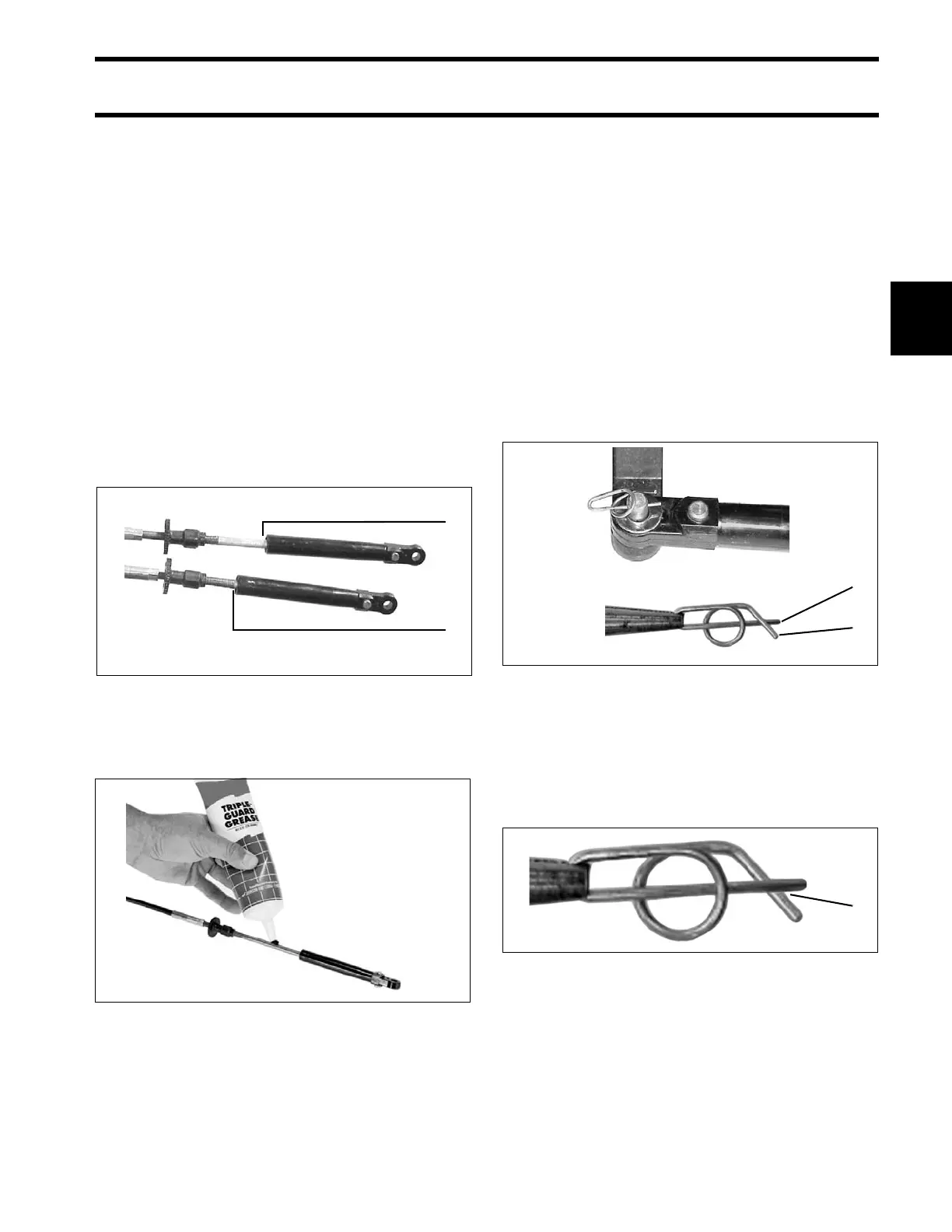

Control Cable Identification
IMPORTANT: Identify co ntrol cable function
before rigging outboard.
Identify each control cable:
• Put the control h andle into NEUTRAL position.
The throttle cable casing guide will retract com-
pletely and the shift cable casing guide will go to
the midpoint of its travel.
Extend the control cables and lubricate them with
Triple-Guard grease.
Cable Retainer Clip Installation
When installing retainer clips on contro l arm link-
age pins, clips should be locked and must not be
bent or deformed.
For proper installation, review the following steps:
• Place washer on pin.
• Position retainer clip with straight section on the
bottom and angled section on the top.
• Use long nose pliers to insert straight section of
clip into linkage pin hole.
• Push the clip towards th e ho le while lifting o n
the curved end with the pliers.
• Be sure retainer clip fully engages the pin.
• Lock the retainer by moving the ang led section
behind the straight section.
1. Shift cable casing guide extended to midpoint
2. Throttle cable casing guide retracted
DP0811
30501
1
2
1. Straight section
2. Angled section
DP0818N
DP0817
Locked Retainer Clip
1. Angled section behind straight section
DP0817A
1
2
1
