FUEL AND OIL PRIMING
OIL REQUIREMENTS
Powerhead oil programming la bels a re pr ovided
to ident ify EMM oil prog ramming. Inst all the cor-
rect label to alert user to specific oil requirements.
An XD100 Outb oard Oil De cal, P/N 352369, is
available to la bel b oats eq uipped with o utboards
that have been progra mmed for the redu ced oil
injection ratio.
Install decals in a hig hly visible location, su ch as
one of the following:
• Dashboard/deck of boat, next to key switch
• Deck of boat, next to the remote oil fill
• Deck of boat, next to oil tank assembly
• Oil tank cover
• Cover of oil tank compartment
• Attach to oil tank or oil fill cap.
IMPORTANT: Make sure the engine label an d
boat decals match EMM programming.
Break-In Oiling
IMPORTANT: DO NOT add oil in the fuel tank
on Evinrude E-TEC models.
The Engine Management Module (EMM) will auto-
matically supply extra oil to the engine as follows:
• 90° V6: First two hours above 2000 RPM
• 60° V4 & V6: First five hours above 2000 RPM
• 40 – 90 HP: First two hours above 2000 RPM
• 15 – 30 HP: First two hours above 2000 RPM
Follow these steps for outboard set-up:
• Use Evinrude Diagnostics sof tware to m ake
sure the break-in program has been started.
• The oil t ank sh ould be filled a nd th e oil leve l
marked for reference.
The operator must monitor the oil
tank level to confirm oil consumption. This
may require several hours of operation above
idle.

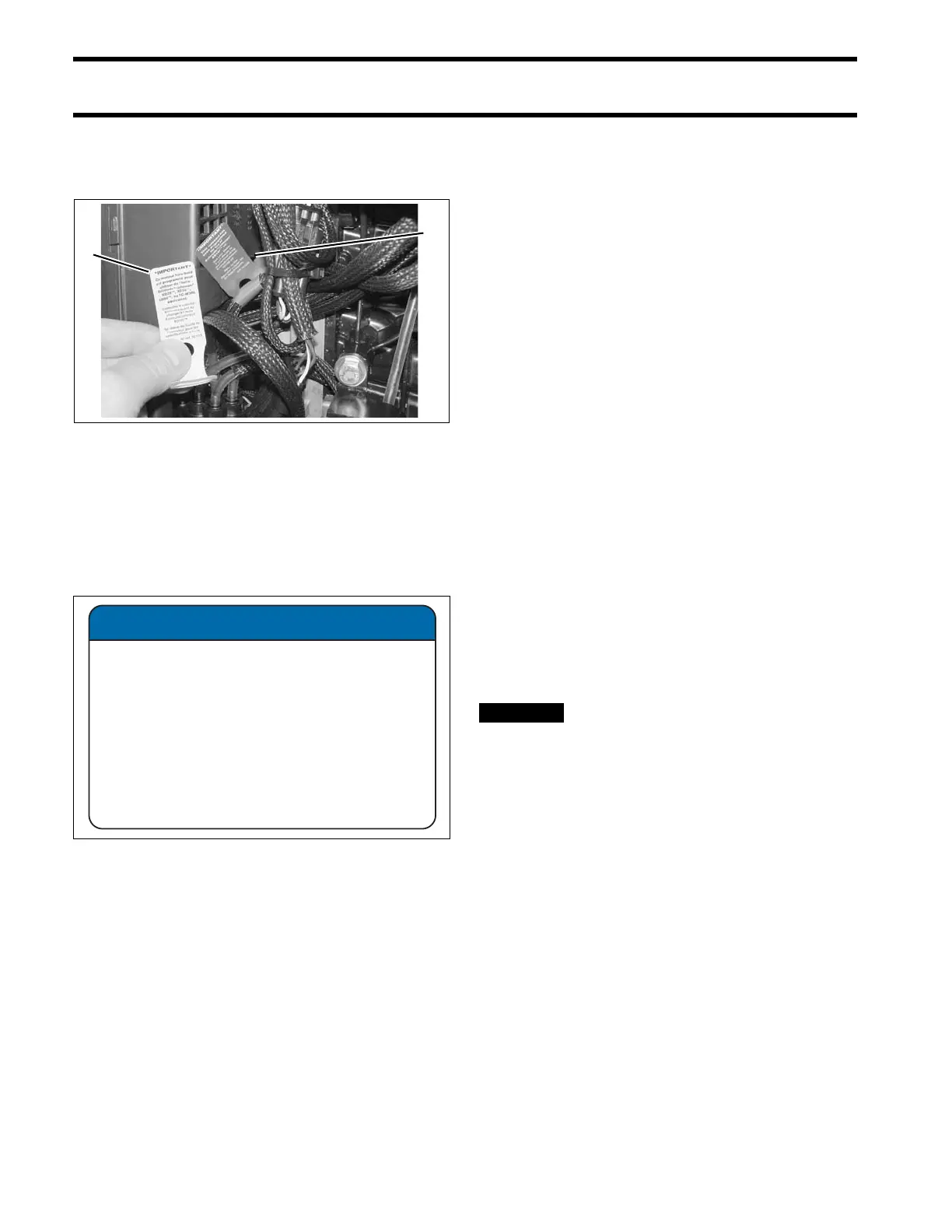

1. Evinrude/Johnson XD30 outboard lubricant (TC-W3)
YELLOW label
2. Evinrude/Johnson XD100 outboard lubricant (Premium)
BLUE label (Installed)
004964
XD100 Outboard Oil Decal 355627
355627
NOTICE
This outboard has been programmed for
the use of Evinrude
®
/Johnson
®
XD100™
outboard oil ONLY.
Failure to use Evinrude
®
/Johnson
®
XD100™ outboard oil may harm engine
performance and shorten engine life.
