OUTBOARD RIGGING
EVINRUDE E-TEC MODELS 40–90 HP
3
3 CYLINDER MODELS
EMM CANbus connector cap is clipp ed to EMM
cooling water h ose. Remove clip from cap and
install on I-Command harness connector.
Install clip and connector to hose.
ALL MODELS
Adjust harness routing as needed and secure with
tie straps.
Use an I-Command Ignition and T rim Harness to
connect the outboard to the key switch and trim/tilt
control. Se al unused SystemCheck connector
with 6-Pin Connector Seal, P/N 586076.
If connectin g to an existing Deutsch-style I-Com-
mand network, connect the purple wires between
the I-Command Ignition and Trim Harness and the
I-Command Engine Interface Cable. This connec-
tion supplies power to the network when th e key
switch is on. Newer, quick connect-style networks
do not use this connection.
Route I-Command Ignition Harness throug h wire
channel in flywheel co ver. Install electrical cover.
Make sure bot h harnesses are in front of t he tab
and tighten with tie strap.

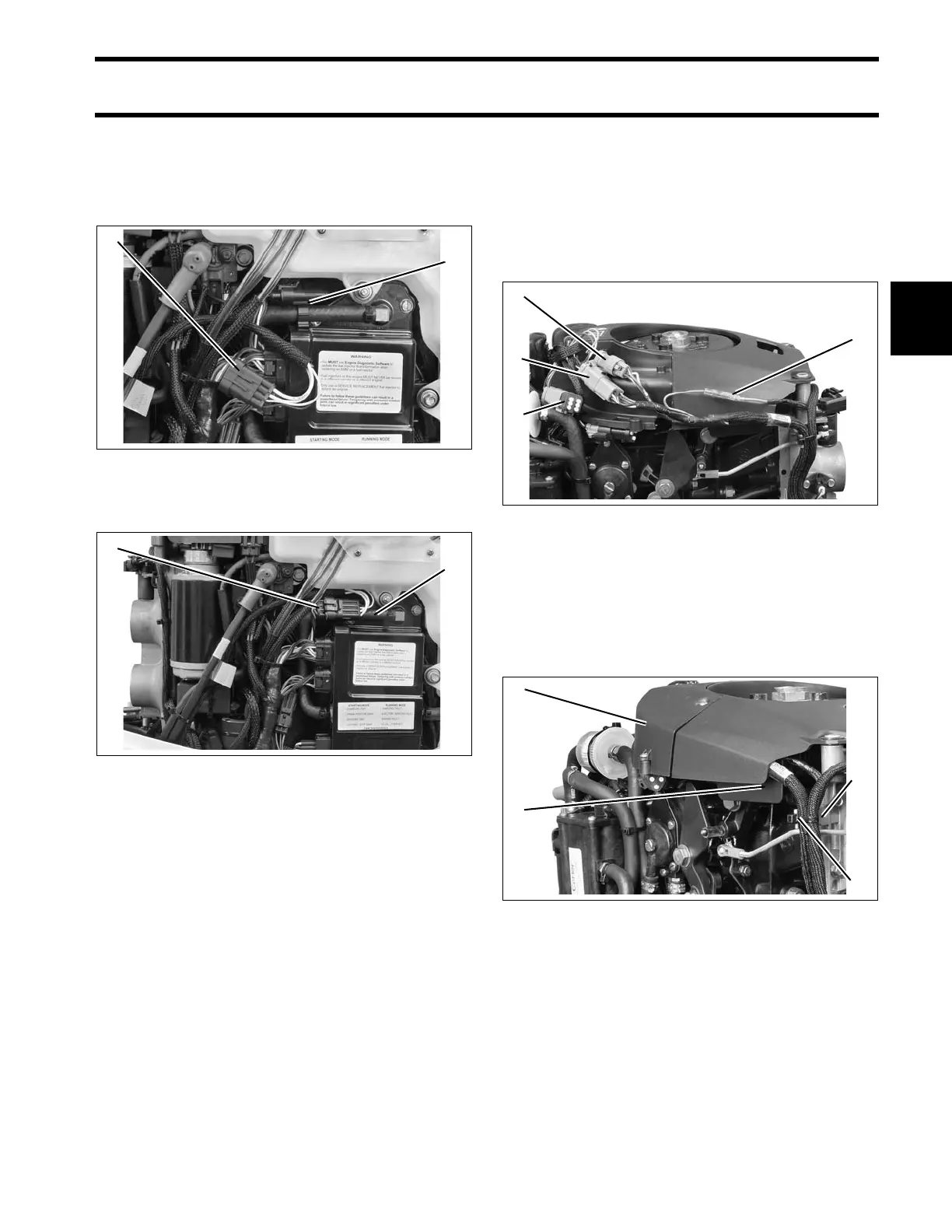

1. Canbus harness connector
2. EMM CANbus connector cap and clip
006743
1. CANbus connectors
2. EMM cooling water hose
006744
1. Trim/Tilt connector
2. I-Command Ignition connector
3. SystemCheck connector (with seal)
4. Network power supply connector
006734
1. Electrical cover
2. Wire channel
3. Tab
4. Tie strap
006737
